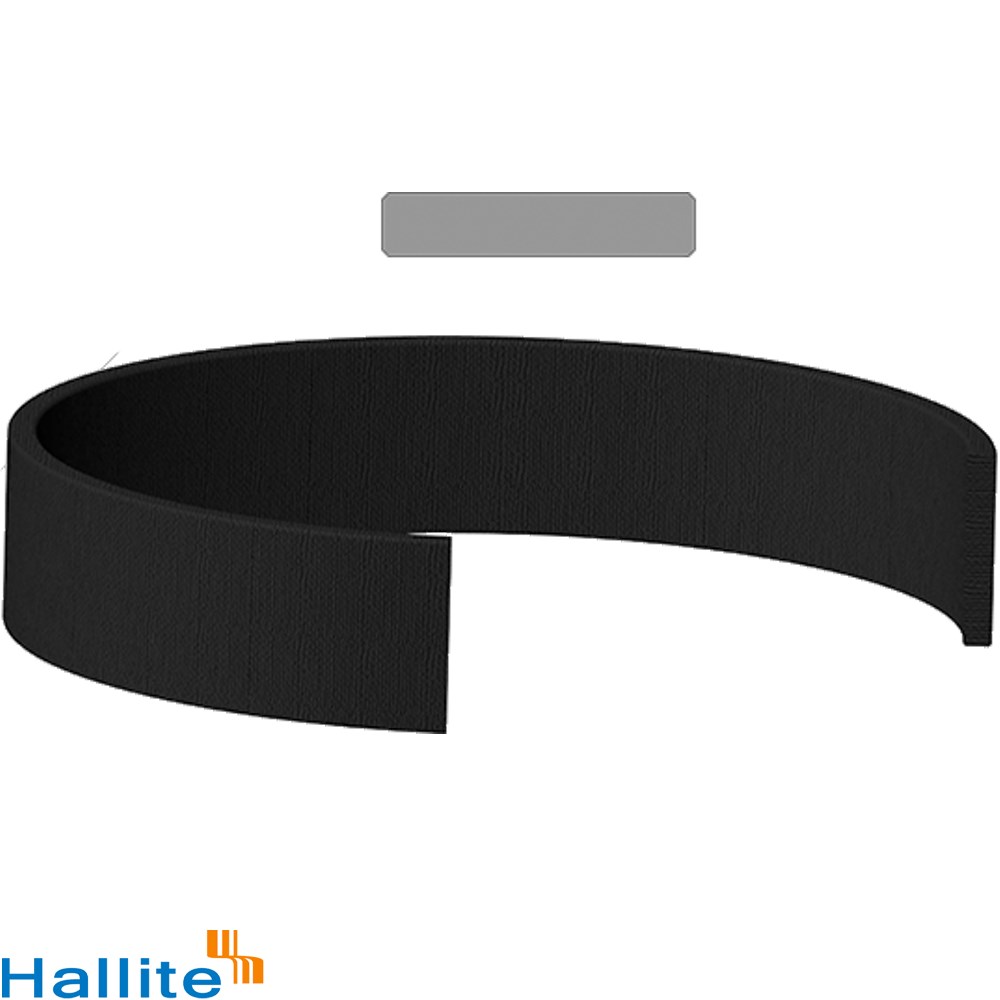

Hallite 533 Nylon Wear Ring
The Hallite 533 Nylon Wear Ring is a durable and efficient bearing solution, crafted from heat-stabilized, 33% glass-reinforced nylon 66 for superior performance in reciprocating, oscillating, and slow rotary applications.
Its robust design effectively manages high side loads and prevents metal-to-metal contact between the piston and bore or rod and gland. Engineered to be compatible with hydraulic and lubricating oils, the Hallite 533 provides reliable bearing support across demanding conditions. Not suitable for water-based fluids (HFA) or environments with significant water exposure due to potential nylon swell, this wear ring ensures extended wear resistance in oil-based systems.
Features
- Durable, glass-filled nylon 66 with 33% glass reinforcement
- Effective for reciprocating, oscillating, and slow rotary movements
- Withstands high side loads, preventing metal-to-metal contact
- Heat-stabilized for enhanced bearing properties
- Compatible with hydraulic and lubricating oils
- Not recommended for water-based fluids or significant water exposure
Specifications
- D1: 2
- d2: 1.75
- L1: 0.5
- S: 0.125
- Temp Range: -40 C to 120 C
- Max Speed: 5m/sec
