GRADER BLADE 8ftX6"X5/8"

Product Code: GB8658
$188.50
EACH inc GST
Afterpay Logo
4 payments of $47.13
In Stock Low Stock Out Of Stock Please See Attributes 67
Increase value Decrease value



  • Product Detail

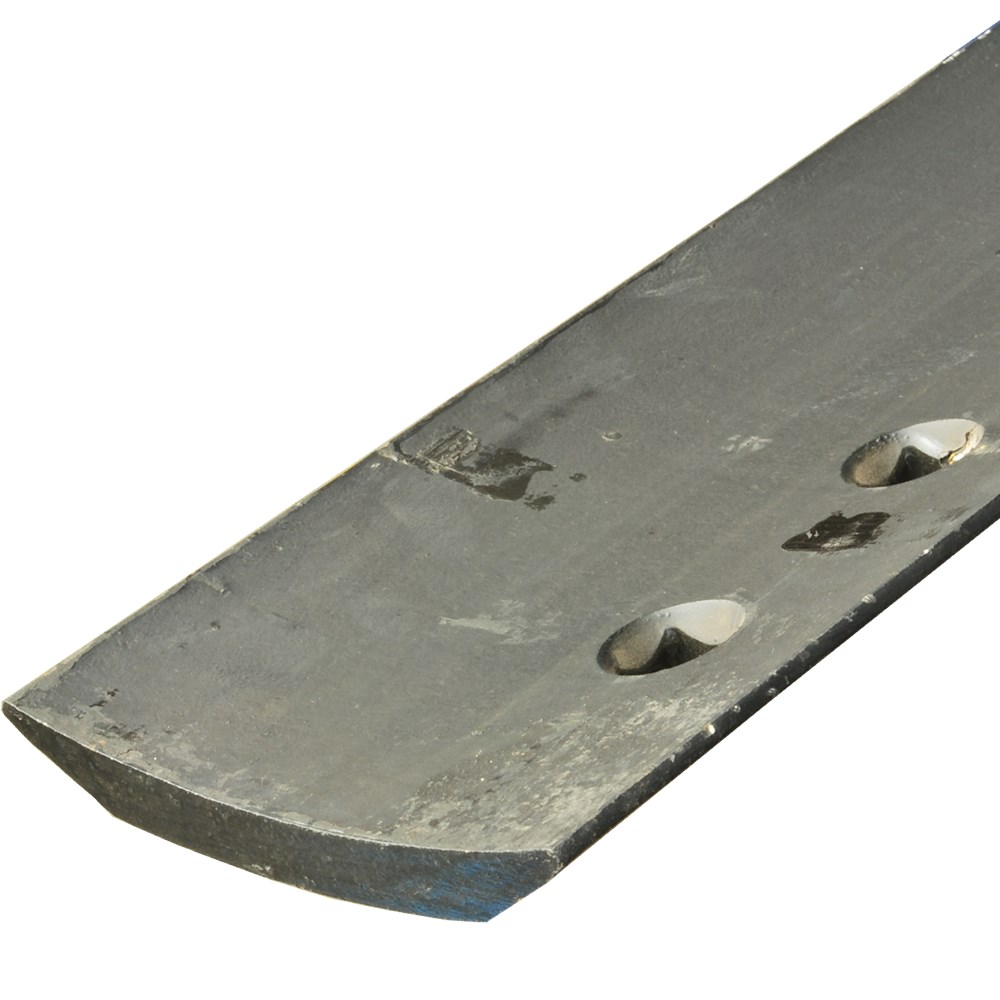

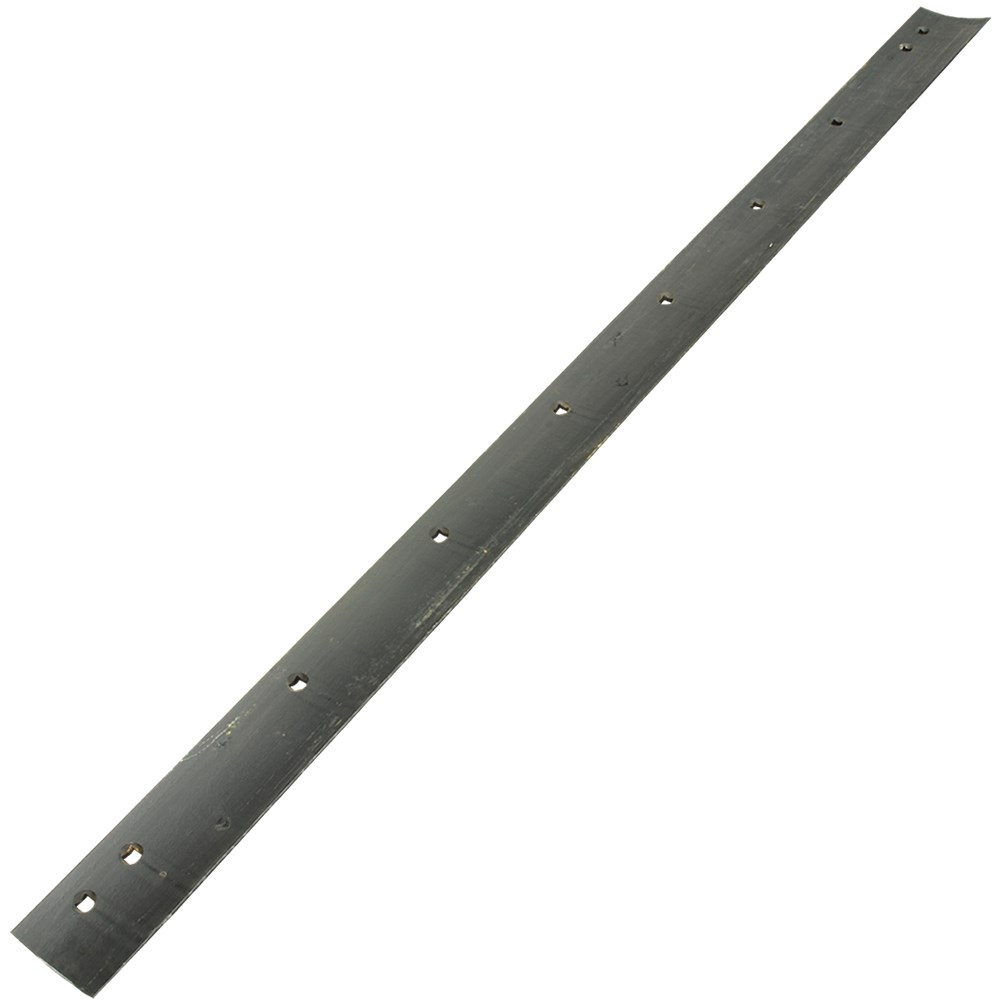

Black high carbon grader blade curved profile with double bevel edges and off-center pre-drilled holes.

Features
  • High carbon steel
  • Curved blade with offset holes 1-3/4" from edge
  • Double bevel edges
  • Accepts PB58  5/8" diameter countersunk earthmoving bolts
  • Holes drill off-set from center-line of blade
Dimensions

Part Number Length Width Thickness Drill Hole Diameter Qty Bolt Holes
GB5612 5' 6" 1/2" 5/8" 7
GB5658 5' 6" 5/8" 5/8" 7
GB6612 6' 6" 1/2" 5/8" 8
GB6658 6' 6" 5/8" 5/8" 8
GB7612 7' 6" 1/2" 5/8" 9
GB7658 7' 6" 5/8" 5/8" 9
GB8612 8' 6" 1/2" 5/8" 10
GB8658 8' 6" 5/8" 5/8" 10

Hole centers from one end

Part Number Hole #1 Hole #2 Hole #3 Hole #4 Hole #5 Hole #6 Hole #7 Hole #8 Hole #9 Hole #10
GB5612 3" 6" 18" 30" 42" 54" 57"
GB5658 3" 6" 18" 30" 42" 54" 57"
GB6612 3" 6" 18" 30" 42" 54" 66" 69"
GB6658 3" 6" 18" 30" 42" 54" 66" 69"
GB7612 3" 6" 18" 30" 42" 54" 66" 78" 81"
GB7658 3" 6" 18" 30" 42" 54" 66" 78" 81"
GB8612 3" 6" 18" 30" 42" 54" 66" 78" 90" 93"
GB8658 3" 6" 18" 30" 42" 54" 66" 78" 90" 93"
