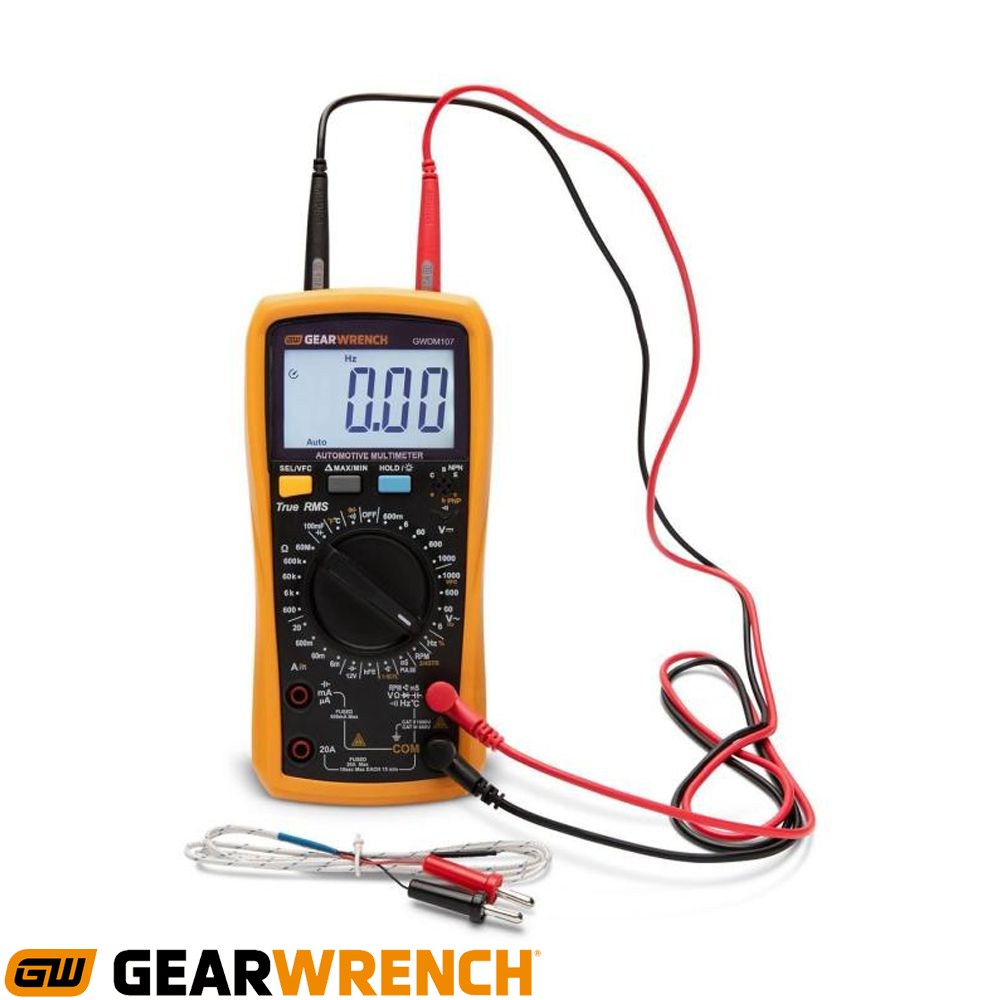

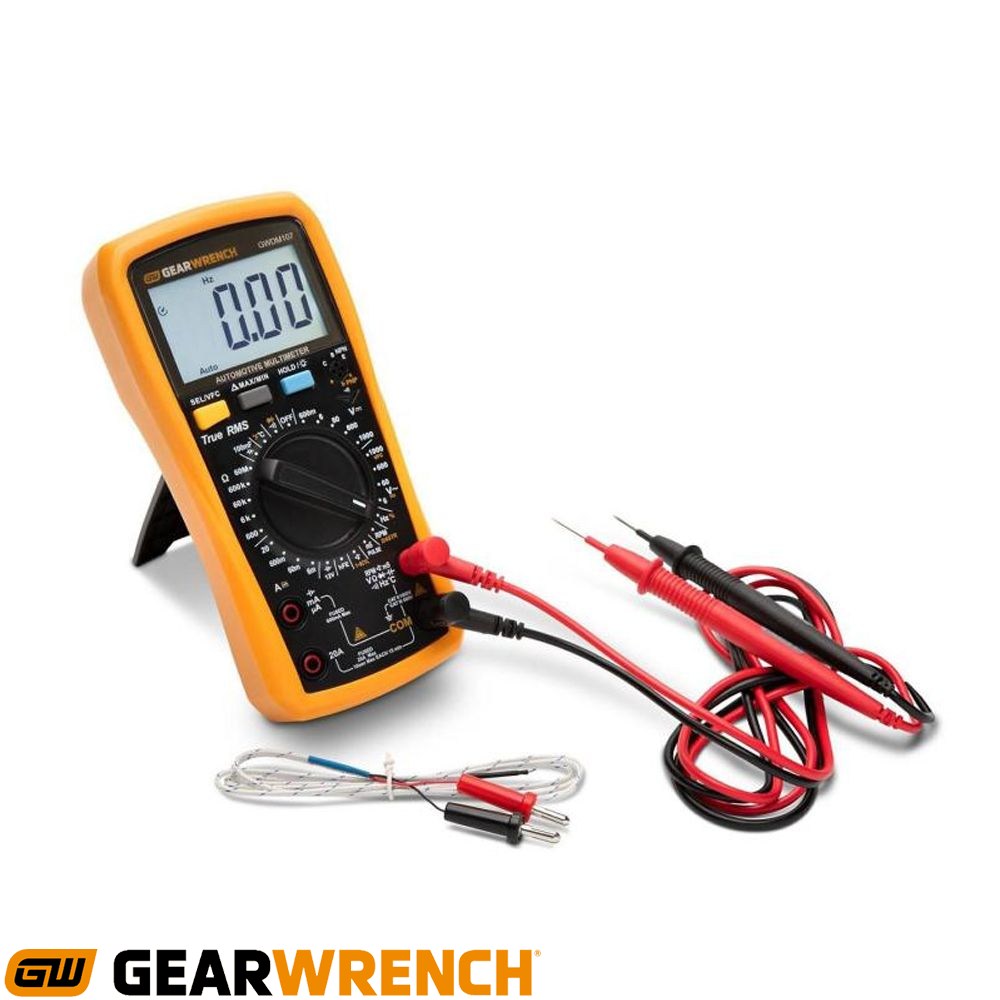

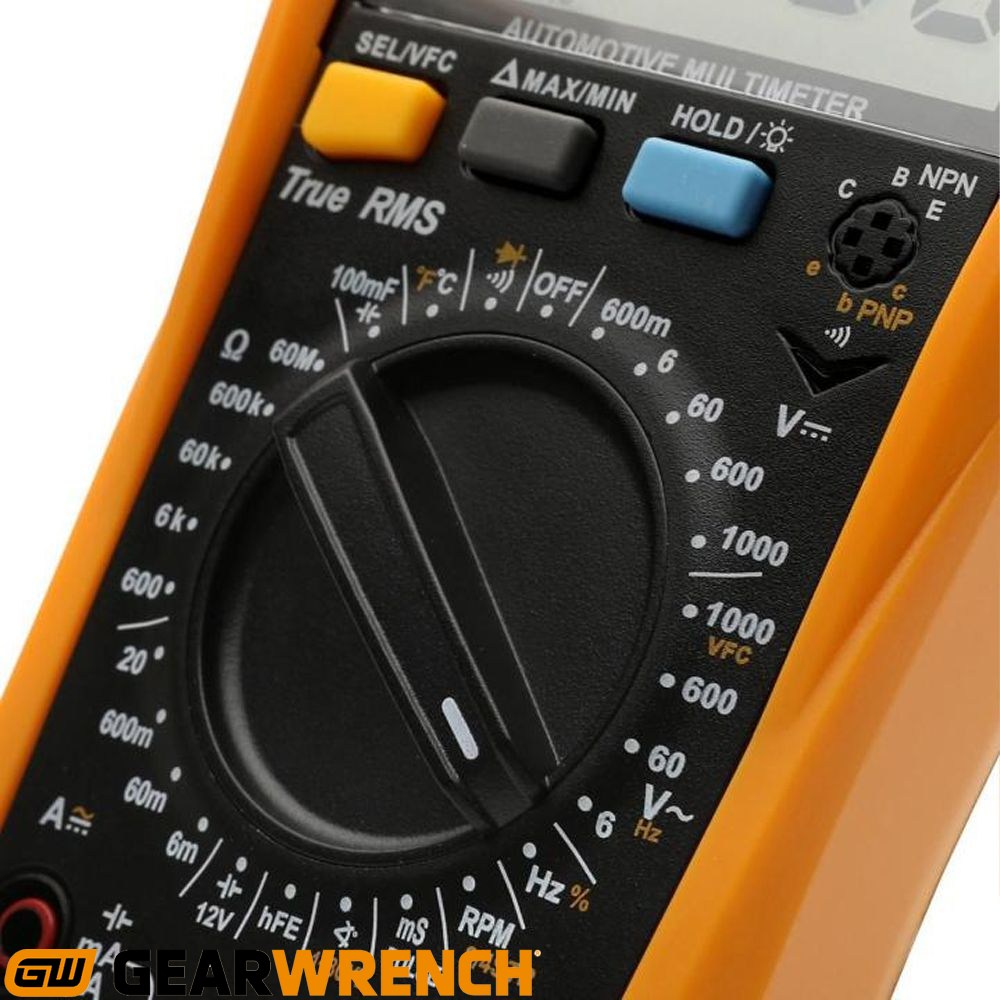

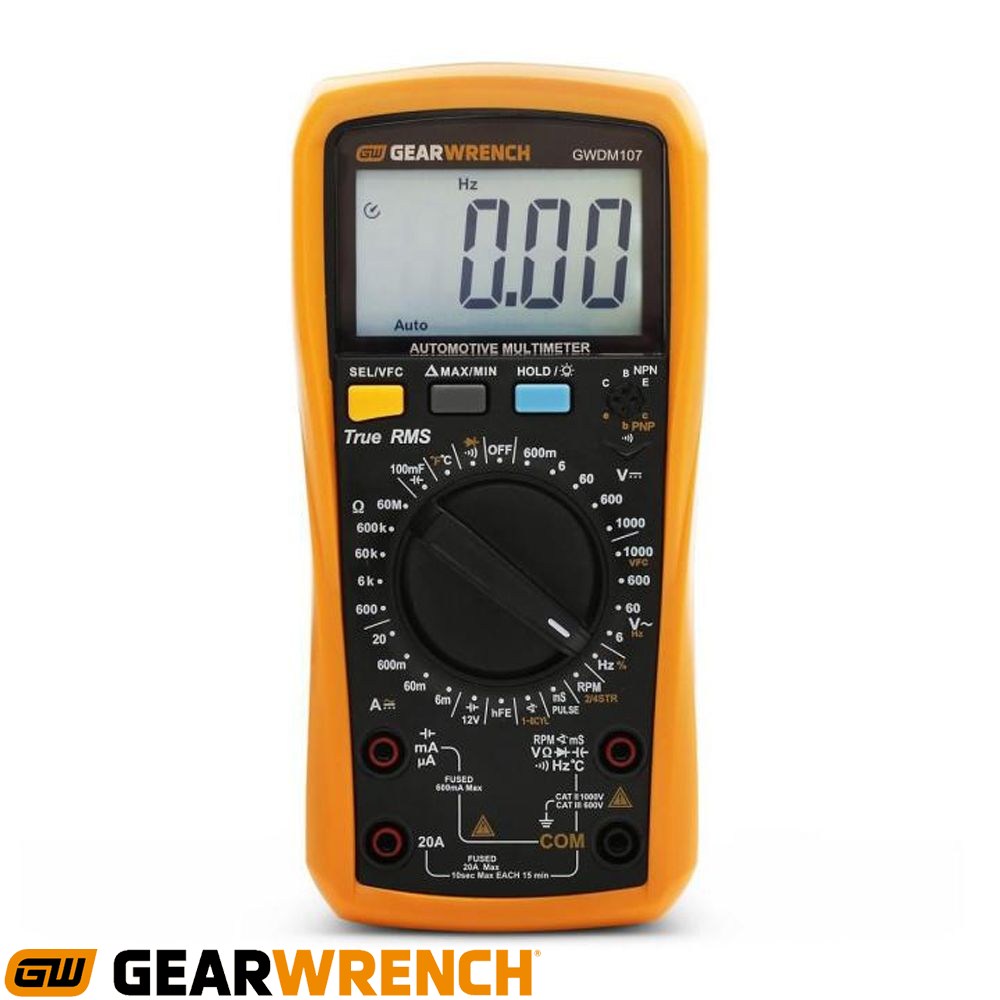

GEARWRENCH Automotive Pro True RMS Digital Multimeter
The GEARWRENCH GWDM107 Automotive Pro True RMS Digital Multimeter is a professional-grade diagnostic tool designed for automotive technicians and industrial professionals. Delivering fast and highly accurate measurements with True RMS technology, it is ideal for troubleshooting electrical systems across conventional, hybrid, and electric vehicles.
Features
- True RMS multimeter for precise AC/DC electrical measurements
- Measures AC/DC voltage up to 1000V and current up to 20A
- Resistance measurement up to 60MΩ
- Functions include continuity, diode testing, capacitance, frequency and battery testing
- Measures dwell time, pulse width, RPM, temperature and duty cycle
- 6000 count backlit LCD display for enhanced low-light visibility
- Relative value, minimum/maximum and data hold functions
- Automatic power-off, overload protection and over-range indication
- Integrated kickstand and test lead holders for convenient operation
- Durable protective housing designed for professional workshop environments

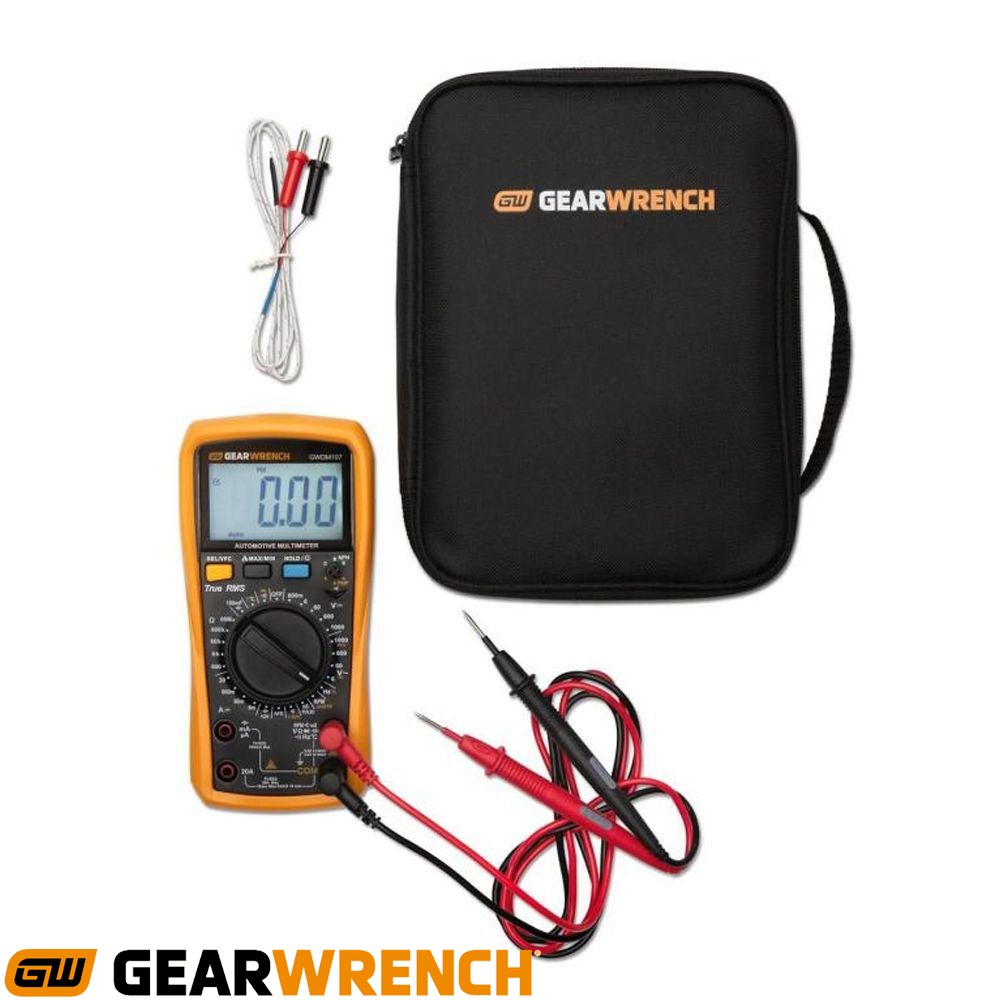

Includes
- RMS Digital Multimeter
- CAT III Safety Test Lead
- CAT IV Safety Test Lead
- Thermocouple
- 2 x AAA Batteries
- Carry Case
- User Manual
Specifications
- Voltage: 1000V
- Maximum Current: 20A
- Maximum Resistance: 60MΩ
- Display: LCD with Backlight
- Battery Type: AAA
- Batteries Included: Yes
- Lead Length: 1079.5mm
- Temperature Range: -40°F to 1832°F
- Automatic Shut Off: Yes
- Auto Ranging: No
- Overload Protection: Yes
- Overload Indicator: Yes
- Data Hold: Yes
- Relative Value Measurement: Yes
- Power Type: Cordless
- Colour: Molten Orange & Black
- Dimensions: 438mm x 90mm x 57mm
- Weight: 0.8kg
