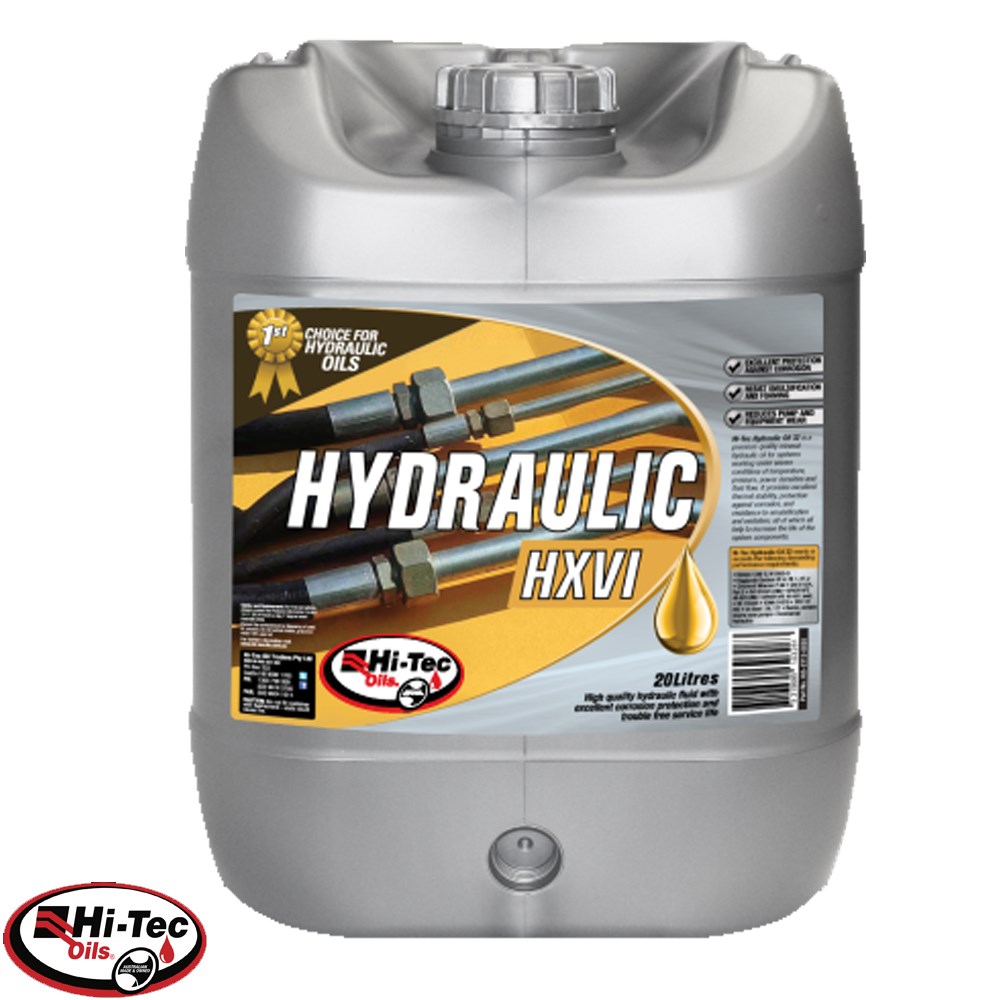

Hi-Tec® XHVI Hydraulic Oil
HI5-2745-0020
XHVI Zinc Free Hydraulic Oils are specialised premium hydraulic fluids which have been formulated to handle the extremes of operating temperatures, pressures, power densities and fluid flow rates which are associated with very high horsepower hydraulic systems. The oils provide unique, long life operating service characteristics by a combination of anti-wear, detergent and very shear stable viscosity improving additives with proven rust, oxidation, corrosion and foam inhibitors. XHVI Zinc Free Hydraulic Oils ensure excellent filterability with hydrolytic and demulsibility stability.
Hydraulic HVI Blue Fluids are not normally recommended as a lubricant for compressors, circulating systems, bearings, general purpose lubrication and enclosed gears where extreme high-pressure load characteristics are not required. For these applications, use Hi-Tec Compressor Oils.
Features
- Specialised premium hydraulic fluids to handle the extremes of operating temperatures & pressures.
- Excellent filterability even in the presence of moisture contamination
- Excellent compatibility with synthetic rubbers, providing extended life to seals
- Reduced oxidation so that oil degradation is inhibited
- The anti-foam additive so air will quickly separate from the fluids reducing metal-to-metal contact.
Specifications & Approvals
- Eaton Brochure 03-401-2010
- VDMA 24318
- Vickers I-286-S, M-2950S
- SS 155434 Denison HF-1, HF-2, HF-0
- ISO 6743/4 (HM, HV)
- Fives Cincinnati P-68, P-69, P70
- US Steel 127, 136
- DIN 51524, Part 2 and 3 (HVLP)
- AFNOR N FE 48-691 (wet)
- SEB 181 222
- ASTM-D2619 HF-0
- AFNOR NFE 48 603 (HM, HV)
- Commercial hydraulics.
- Vickers I-286-S, M-2950S
- Hagglunds-Denison HF-1, HF-2, HF-0
- Racine-Variable volume vane pumps
- Cincinnati Milacron P-68, P-69, P-70
- DIN 51524, Part 2
- US Steel 127, 136
- AFNOR N FE 48-691 (wet)
- VDMA 24318 SS 155434; ISO 6743/4 (HM, HV)
- SEB 181 222
- AFNOR N FE 48-603 (HM, HV)
