ZEXUS OFFSET LINK 1' BS BS SIMPLEX SBR PRIME RANGE

BS SIMPLEX SBR PRIME RANGE

Product Code: HIT16B-1OL

Detail
Downloads

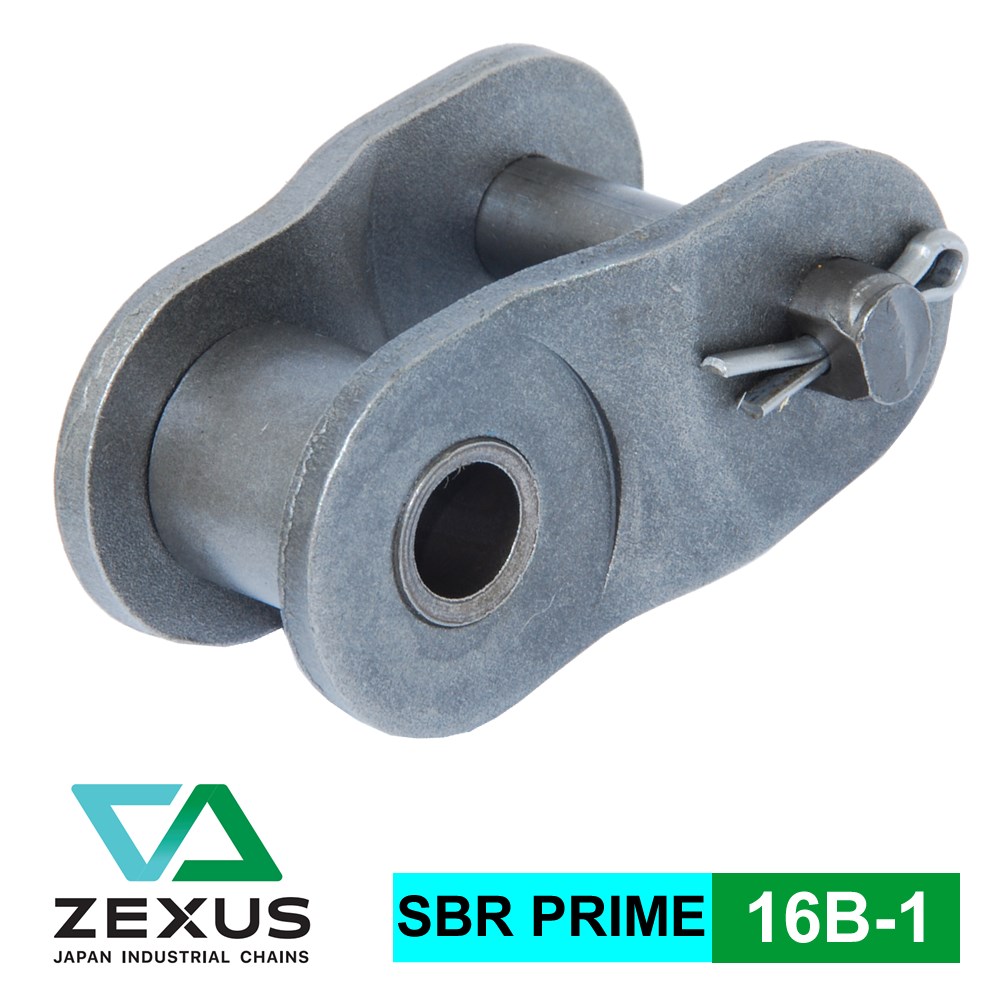

Zexus™ SBR Prime offset link to fit BS roller chain. The premium choice for applications in agriculture and industry.The Zexus premium SBR product range incorporates both ANSI and British standard sizing as used on popular machinery.

Chain No.	Pitch(mm)	Roller Diam(mm)	Width Between Inner Plates(mm)	Pin Diameter(mm)
16B-1	25.40	15.88	17.02	8.26

Benefits

Outstanding longer wear life. Conventional split bushings deform into a barrel shape when side plates are pressed on, leaving only two-point contact area. ZEXUS standard type Roller Chain has extremely cylindrical inside and outside bushing walls resulting in full contact to disperse bearing pressure. Less pressure ensures excellent wear resistance.
Up to 2-3 times longer wear life over curled bushings. The curled, split bushings have a seam where tiny space allows lubricant leakage resulting in shorter wear life. Solid Bushing and Roller have no seam resulting in lower bearing pressure allowing the bushings to retain lubrication resulting in much longer wear life.
Reliable performance Solid Bushing and Roller are cold-forged from steel rod. Cold-forming process also works with the molecular structure (grain) of the steel running lenthwise in the bushings thereby increasing gatigue strength as well as preventing bushings from breakage, ZEXUS standard type Roller Chain improves performance of transmission with minimizing elongation for long period of time.
