John Deere® Compatible Draper Roller Drive Repair Hub
Keep your product feeding system in top condition with this premium C&M Australian-made draper drive roller repair hub. Specifically engineered for John Deere® 600D and 700D series draper platforms, this high-performance hub offers a strategic solution for refurbishing existing drive rollers without the expense of a complete unit replacement.

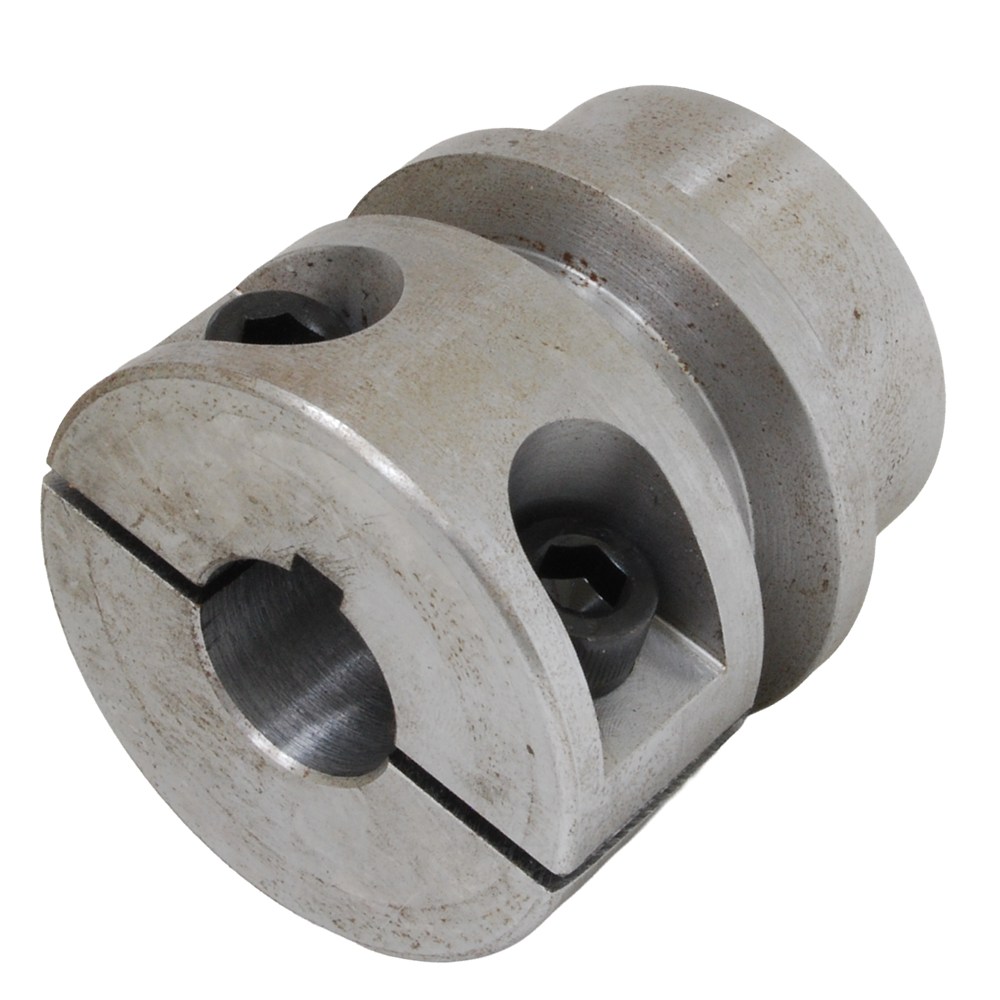

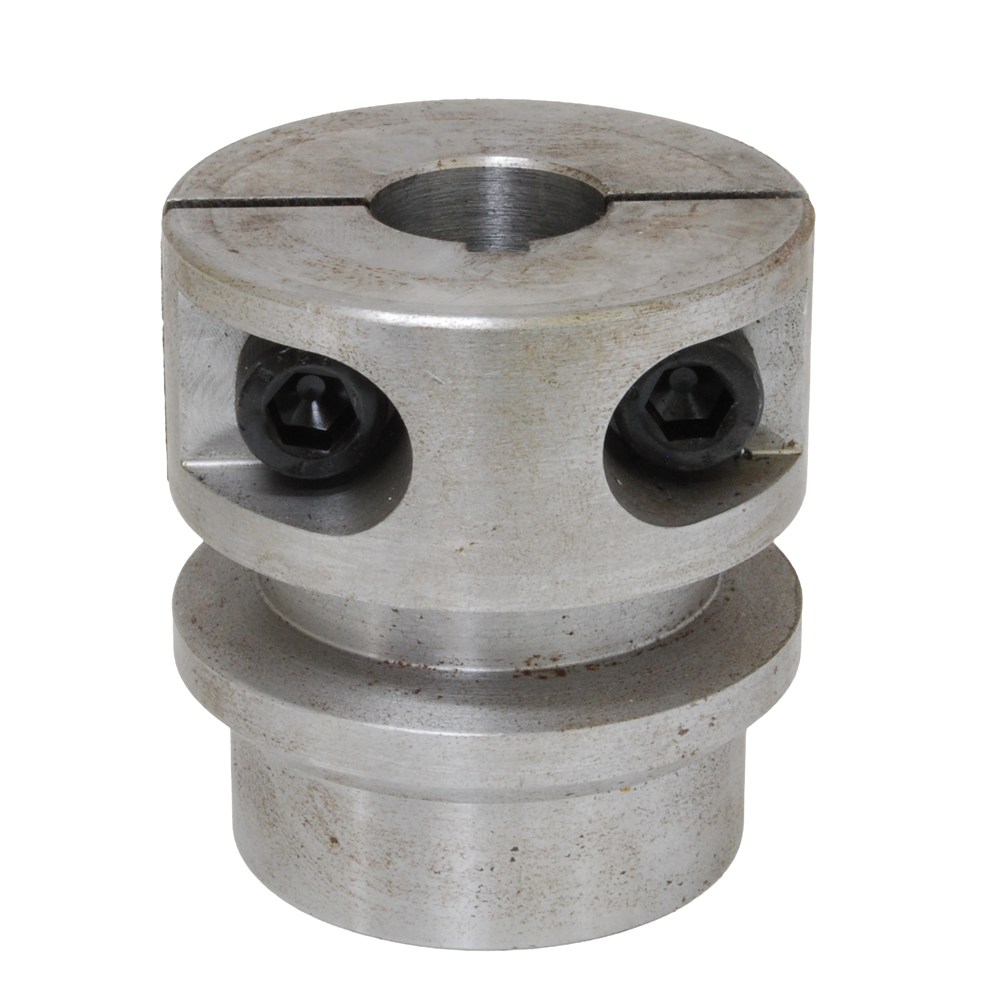

A common failure point on John Deere® draper rollers is the rounding of keyways or shaft scoring, which typically renders the entire roller unserviceable. This unique C&M component features a precision-machined split-hub design with two high-tensile cap screws that provide massive clamping pressure. By utilising this extended wear repair method, you can salvage the existing roller tube and restore high-strength drive integrity for a fraction of the cost of new original hardware.
John Deere® OEM Cross-Reference

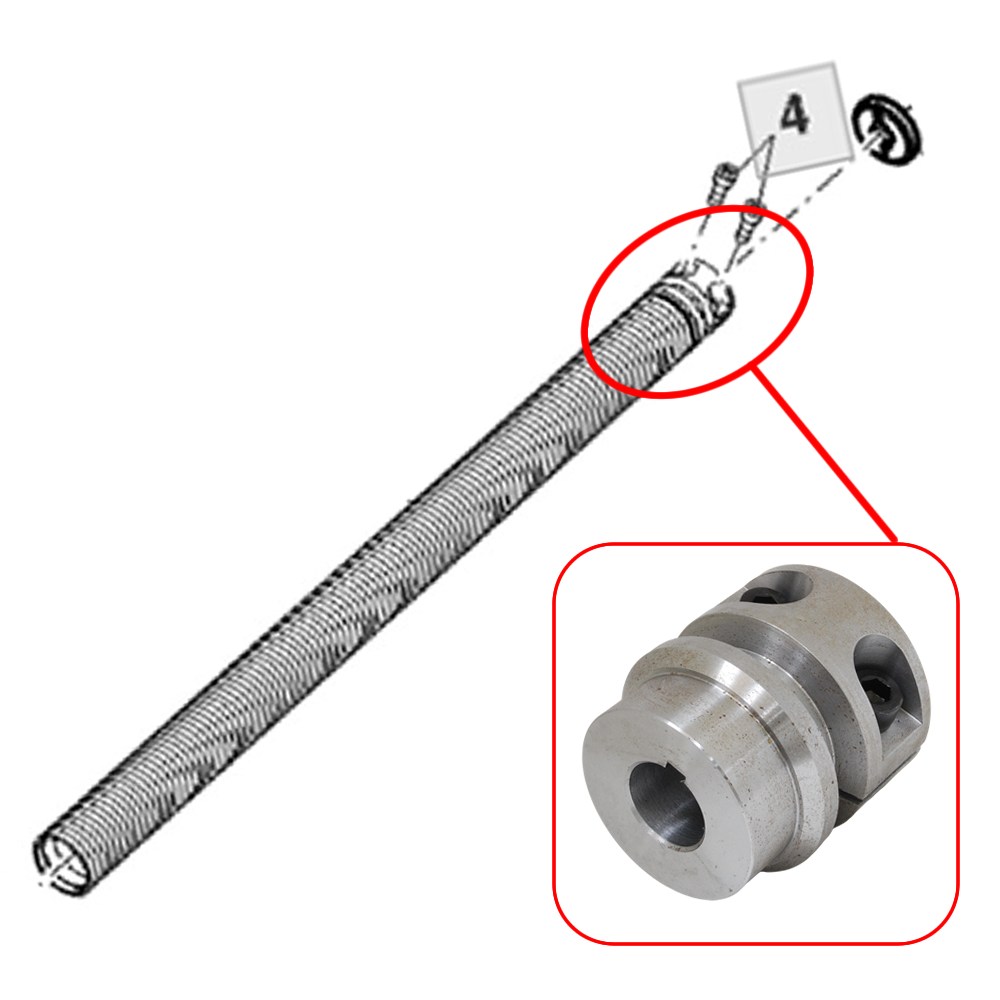

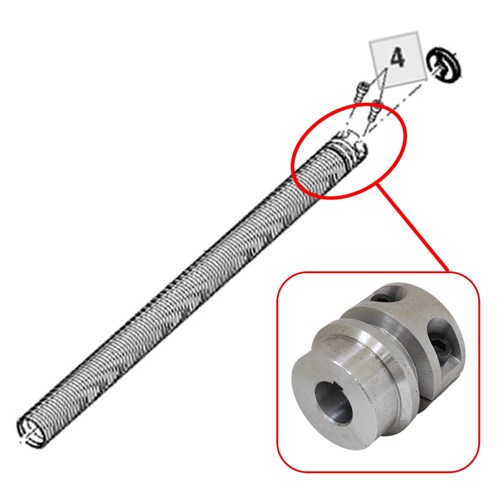

Refurbishment Solution for Drive Roller Part Numbers: AXE169282, AH212964, AH212965
Drive Repair Hub Compatibility: John Deere 600D & 700D Series
| Series |
Models |
Reference |
| John Deere® 600D Series |
625D, 630D, 635D, 640D |
Standard Fitment |
| John Deere® 700D Series |
725D, 730D, 735D, 740D |
Standard Fitment |
Technical Specifications & Features
- Manufacturer: Proudly C&M Australian made by Collier & Miller.
- Shaft Fitment: 1.00" Bore featuring a 1/4" Keyway.
- Dimensions: 70mm Outer Diameter (OD) | 75mm Length | 58mm Spigot Diameter.

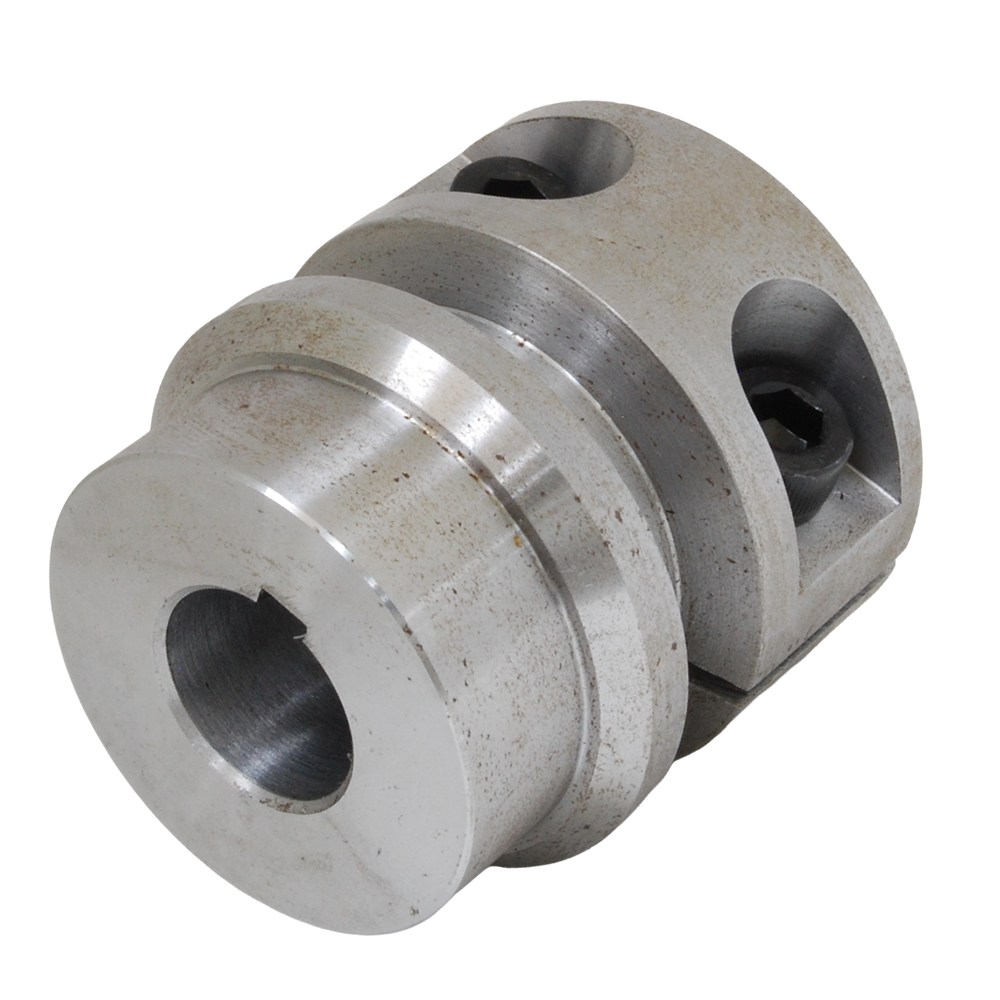

- Design: Split-hub clamping with a machined V-groove for accurate draper mat tracking.
- Installation: Designed to be welded into existing roller tubes for a high-performance finish.
- Dispatch: Available for fast Australia-wide shipping from Collier & Miller.
Expert Maintenance Review
The draper drive roller hub is the primary contact point for power transmission into the belt system. When a keyway fails, it often leads to belt slippage and inconsistent product feeding. This C&M repair hub is a high-strength "saver" part that allows for a professional-grade restoration of your 600D or 700D rollers. We recommend checking for shaft "run-out" during your annual preventative maintenance check to identify worn hubs before they cause field failure.
Welding & Alignment Procedure
To ensure a precision repair and an longer service life, please follow these steps:
- Preparation: Part off the worn hub from the existing roller tube to the required length.
- Machining: Machine the internal bore of the roller tube to match the 58mm spigot diameter for a "press-fit" finish. Note: Tube wall thickness may vary; ensure the spigot is centred accurately.
- Alignment: Check for "run-out" in a lathe before welding. Proper alignment is critical to prevent belt "wobble".
- Welding: Use pulse-weld or stitch-weld techniques to minimize heat distortion and maintain high-strength integrity.
Recommended Maintenance Upgrade
While the rollers are removed for hub repair, we highly recommend inspecting your Draper Belt Bearings and Tracking Guides. Replacing worn bearings alongside a newly aligned hub ensures your feeding system remains in top condition for a trouble-free season.
