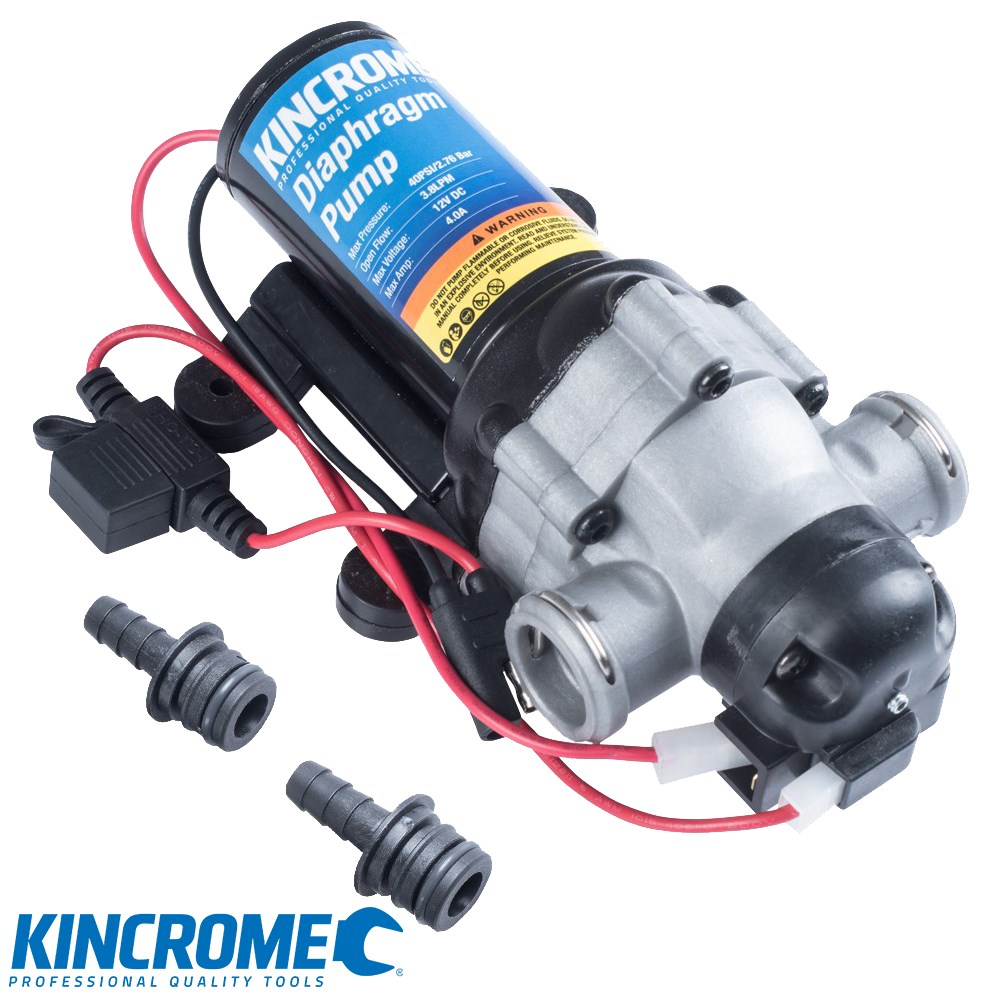

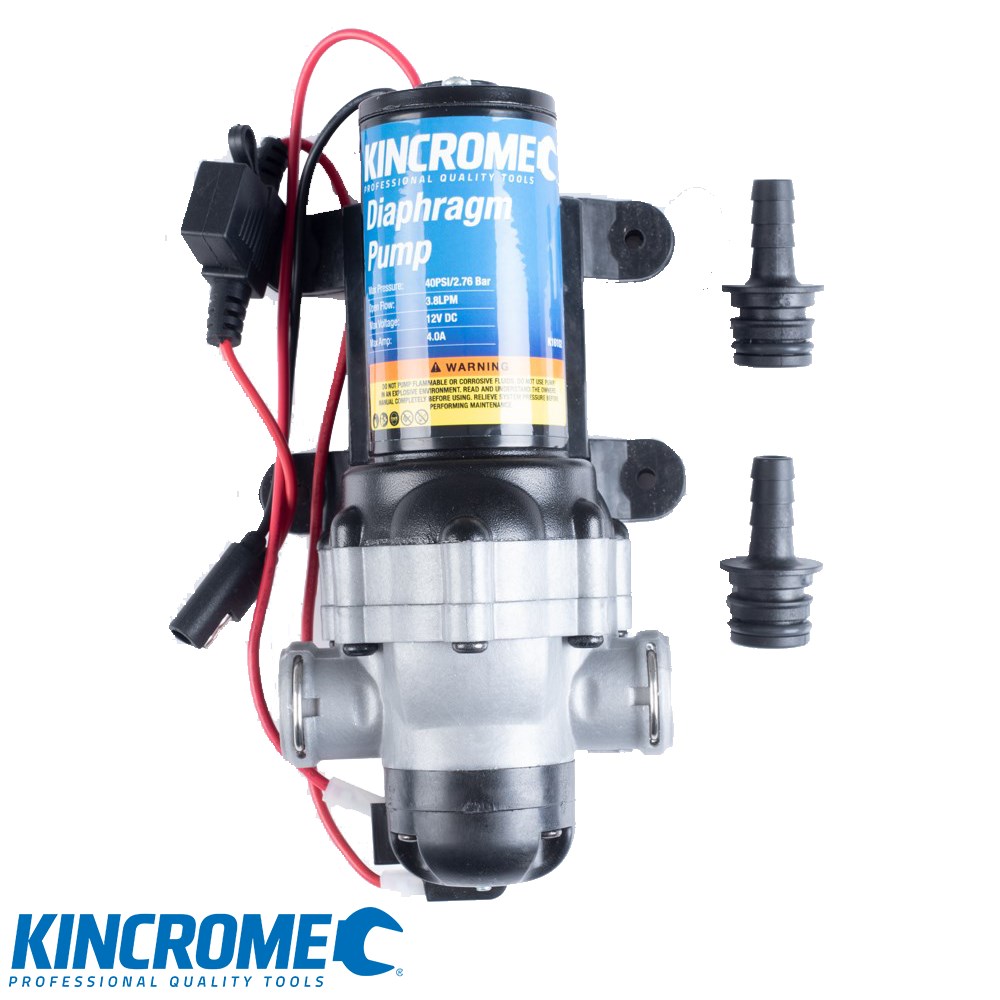

The Kincrome 12V Diaphragm Sprayer Pump is ideal for use in agricultural spot or broadcast sprayers and can also be applied as an upgrade to existing sprayers. Featuring DXS-3 valves, premium parts and a continuous duty rating, no cool down period is required. Continuous spraying over large areas, faster priming and better performance is guaranteed. With chemical resistant Viton parts and a fiberglass-reinforced polypropylene pump manifold, the Kincrome 12V pump is made to last.
Max Flow Rate: 3.8 LPM Amp draw from Pump: 4 Amps (Max) Maximum Pressure: 40 PSI (2.76 BAR) Electrical Connection: 12V DC Valve/ Seal Material: Viton Diaphragm Material: Santoprene Check Valve Spring Material: 304 Stainless Steel Fitting Type: Quick Connect (19mm / 3/4") Inclusions: 1x 3/8: HB, 1x 1/2" HB and 1x 1/2"MNPT Fittings Suitable for use with: K16003and K16005
Sprayer Broadcast Spot Sprayer
