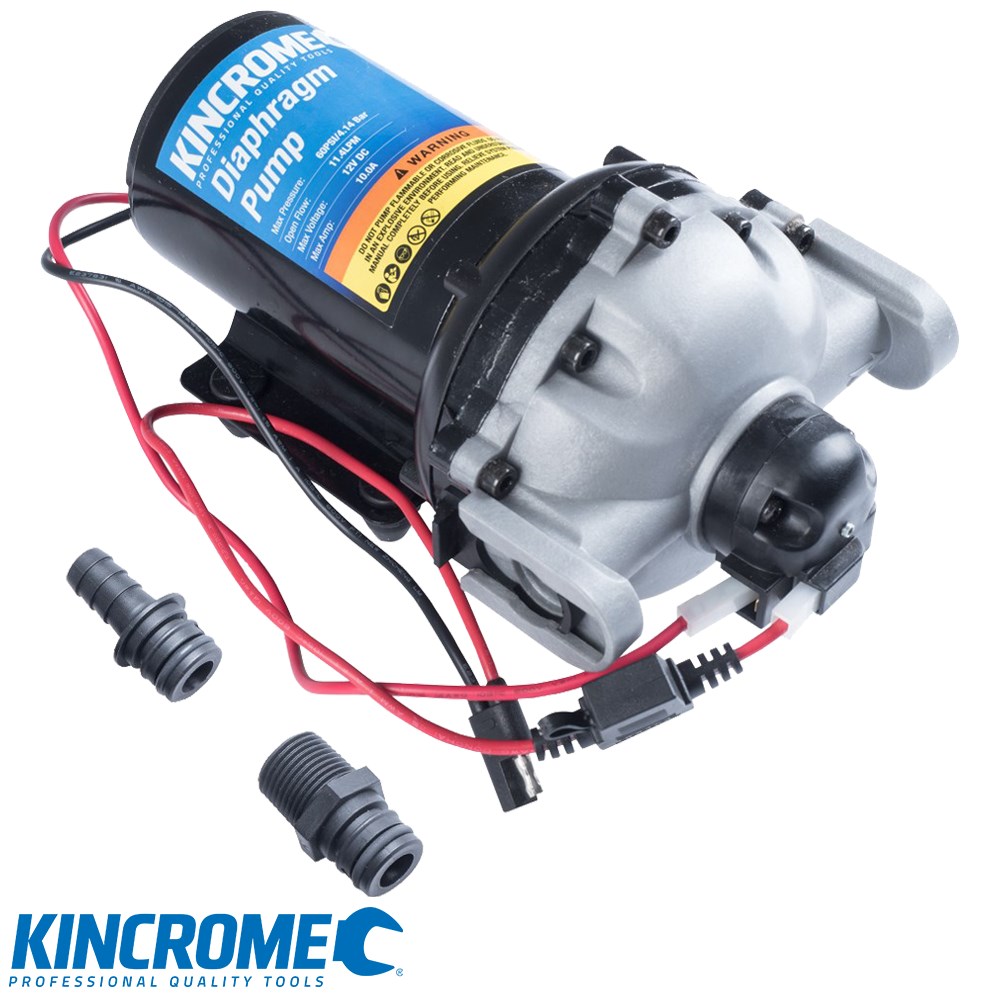

The Kincrome 12V Diaphragm Sprayer Pump is ideal for use in agricultural spot or broadcast sprayers and can also be applied as an upgrade to existing sprayers. Featuring DXS-3 valves, premium parts and a continuous duty rating, no cool down period is required. Continuous spraying over large areas, faster priming and better performance is guaranteed. With chemical resistant Viton parts and a fiberglass-reinforced polypropylene pump manifold, the Kincrome 12V pump is made to last.
Max Flow Rate: 11.4 LPM Amp Draw from Pump: 10 Amps (Max) Maximum Pressure: 60 PSI (4.14 BAR) Electrical Connection: 12V DC Valve/ Seal Material: Viton Diaphragm Material: Santoprene Check Valve Spring Material: 304 Stainless Steel Fitting Type: Quick Connect (19mm / 3/4") Includes: 1x 1/2" HB and 1x 1/2" MNPT Fittings Suitable as an upgrade for: K16003, K16004, K16006 & K16007
