AIR COMPRESSOR DUPLEX 557L 2 X 3HP 2.2KW 15A MOTORS 145PSI / 147LTR TANK PILOT AIR

2 X 3HP 2.2KW 15A MOTORS 145PSI / 147LTR TANK PILOT AIR

Product Code: K17DUPLEX

Product Detail
Downloads

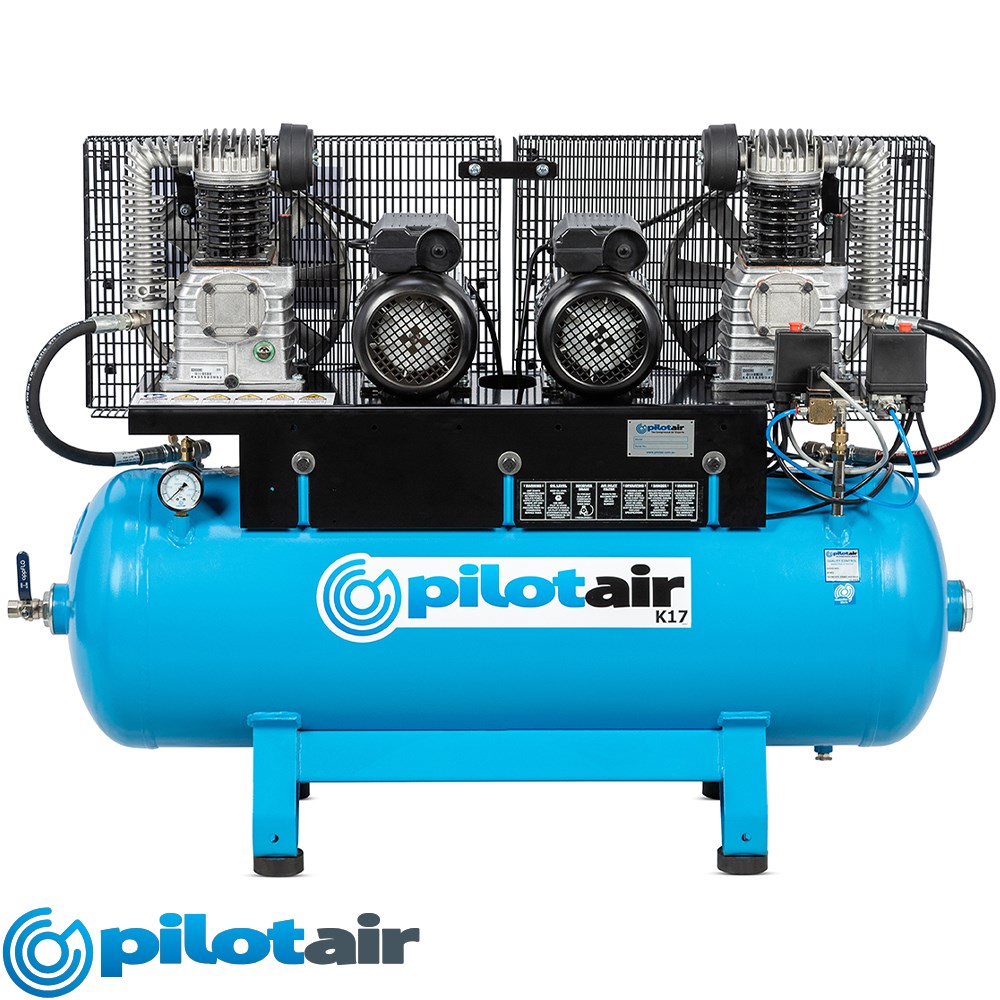

Pilot K17 DUPLEX 240v 15A x 2 is the perfect compressor where high capacity air volume is required without the requirement of three phase power. Featuring 2 x 2.2Kw 240v electric motors driving 2 x twin cylinder Pilot compressors for a Free Air Delivery capacity of 557.4 L/Min. Ideal to run air tools and machinery in a single phase workshop.

Features.

Australian designed and built
Industrial grade hammer-tone enamel finish
Italian made compressor pumps for ultra long life & reliability
2 x cast iron cylinder 2-stage pump
Electric motor safety overload

Specifications:

Performance measured to AS4637.

PISTON DISPLACEMENT	LPM	838
PISTON DISPLACEMENT	CFM	29.6
FREE AIR DELIVERY	LPM	557.4
FREE AIR DELIVERY	CFM	19.6
MOTOR SIZE	KW	2 x 2.2kW
MOTOR SIZE	HP	2 x 3Hp
MAX PRESSURE	kPA	1000kPA
MAX PRESSURE	PSI	145PSI
CYLINDER STAGES	2(1)	2(1)
RECEIVER SIZE	Litres	147
DIMENSIONS	L X W X H (mm)	1500 x 600 x 950
WEIGHT	Kilograms	150
PRIMARY POWER		2 x 240VAC 15 AMP

Warranty

3 Years Compressor Pump Warranty covered by Pilot Air Australia
1 Year Warranty on all other components covered by Pilot Air Australia

See downloads tab for more product information & technical data.
