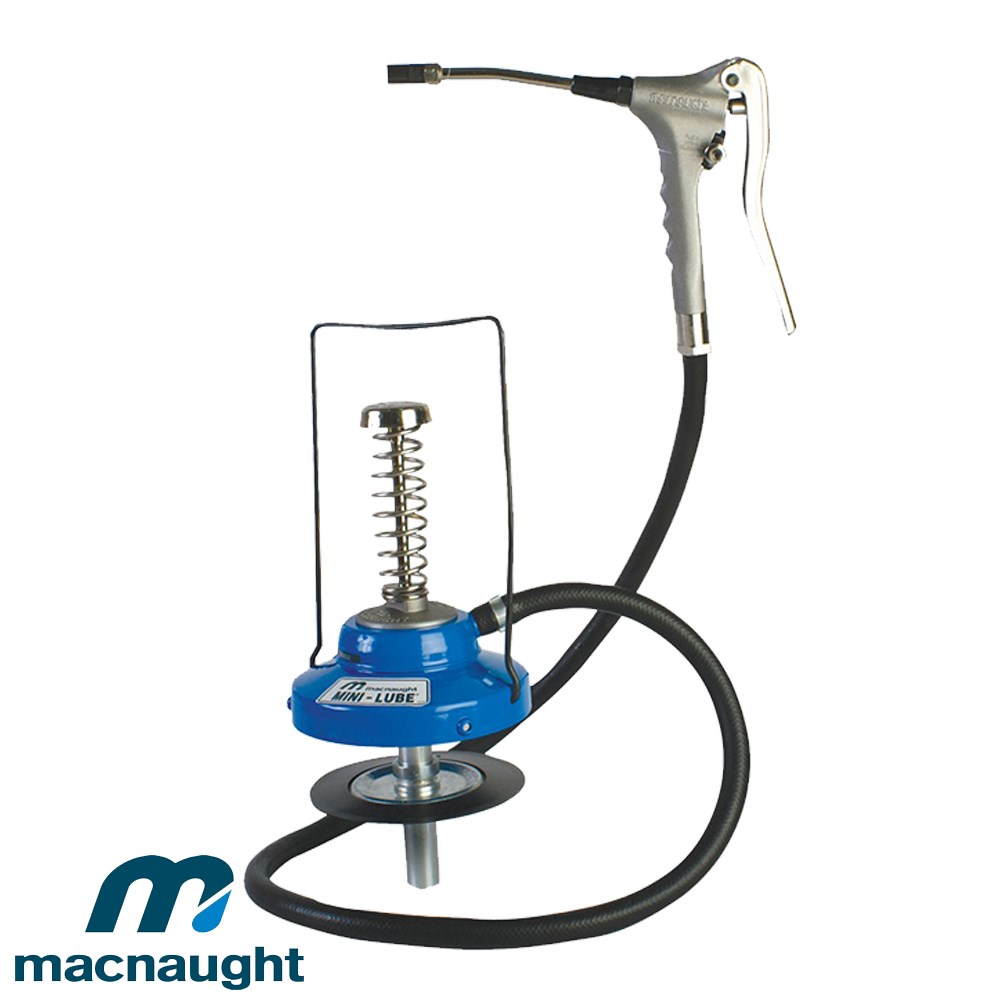

The Macnaught K701 Mini Portable High Pressure Manual Greasing System provides high-volume/high-pressure greasing in a compact and portable package.

The K701 is an economical alternative to expensive air operated greasing systems and consista of two main components, including a foot operated spring-loaded pump that dispenses grease from the container to the hose and a patented, high pressure/high volume KR gun.

When the gun is set on the "high volume" position the gunwill deliver up to 5,000 psi and when set on the "high pressure" setting the gun willdeliver a lower volume of grease, but at higher pressures ( up to 10,000 psi).


Technical Specifications:

• High volume delivery pressure up to 34,450kPa (5,000psi)
• High pressure delivery pressure up to 68,900kPa (10,000psi)
• Provides up to 30 shots of grease with each prime
• KY SUPERGRIP™ 3 jaw high pressure coupler
• Up to 0.45g per shot (High pressure setting)
• Up to 1.25g per shot (High volume setting)
• Maximum viscosity - Up to NLGI 2
• Compatible with 2.5kg grease containers for contamination free greasing or bulk fill via a J3 Transfer Pump
• Wetted parts - Aluminium, steel, nitrile rubber
• 1.5m Flexible delivery hose
