CLAAS LEXION 740 3 CHAIN KIT 36B 6246 108L 11T APS W=1420MM

36B 6246 108L 11T APS W=1420MM

Product Code: KITLEXION750-F-3C

Detail
Tech Specs
Interchange

Claas® Lexion™ Compatible
750 Feeder House Chain Kit (3 Chain)

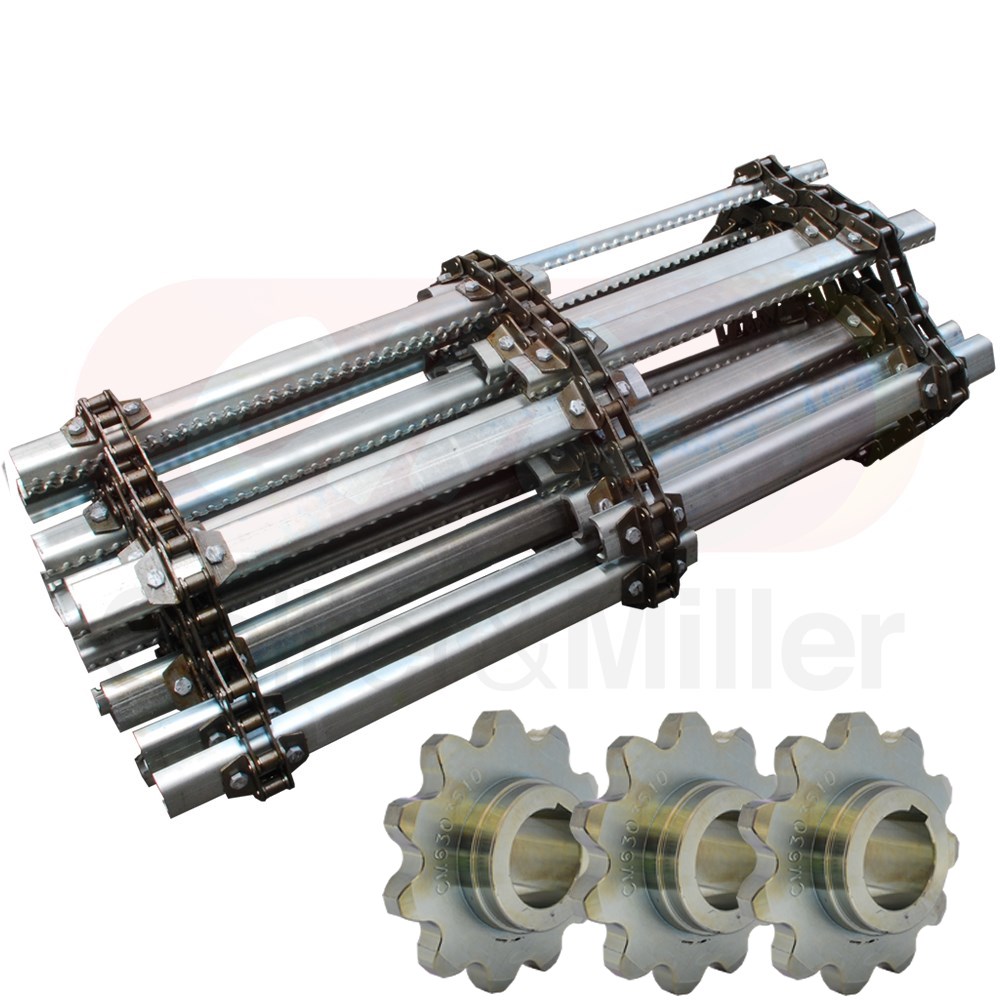

C&M aftermarket 3 strand feeder house chain and sprocket kit to fit the feeder house on Claas® Lexion™ 750 European model combine harvester. Suitable for machines with a 1420mm wide APS. This kit contain 1 x feeder chain set and 3 x feeder sprockets. Order this kit to refurbish your feeder house.

Brand	Part No.	Description
Lexion™ 750 3 Chain Assy	000765891CL	Euro Gen 1 & Gen 2
Lexion™ 750 Sprockets	0006303510CL 6303510	Euro Gen 1 & Gen 2

Sprocket Features

C&M Made in Australia
Grade 1045 sprocket material
10Tooth
50mm Bore x 14mm x 3mm Key

Chain Features

Drive Inc. USA 38.4 VB CA512 CA624 Chain
Same spacing as the OEM chain
36 x 6mm Roll-Serrated Electroplated Bars
3 x Connectors 6 x Offset Links
High tensile fasteners
Ready to install

Chain Specifications

Assembly Code	CM020OEM
Assembly Width	1220mm	APS 1420mm
Chain Type	CA512 (CA624)	Dives Inc. USA
Chain Attachment	K1	2.25" Hole Centers M10 Holes
Chain Strands	3
Chain Length	108 Links	Including Connectors
Chain Connectors	3	Cottered
Chain Offset Links	6	Cottered
Bar Length	645mm (25.50")	6mm U-Bar Roller Serrated G350 Zinc
Bar Qty	36
Bar Chain Center	511.175mm (20.125")
Fastener Specs	M10X25 Zinc Class 10.9 Loctite - 35Nm	M10 Zinc torque prevailing cone lock nut
