AGCO Gleaner® Compatible
S78 Feeder House 4 Chain Kit (Rear Feeder)

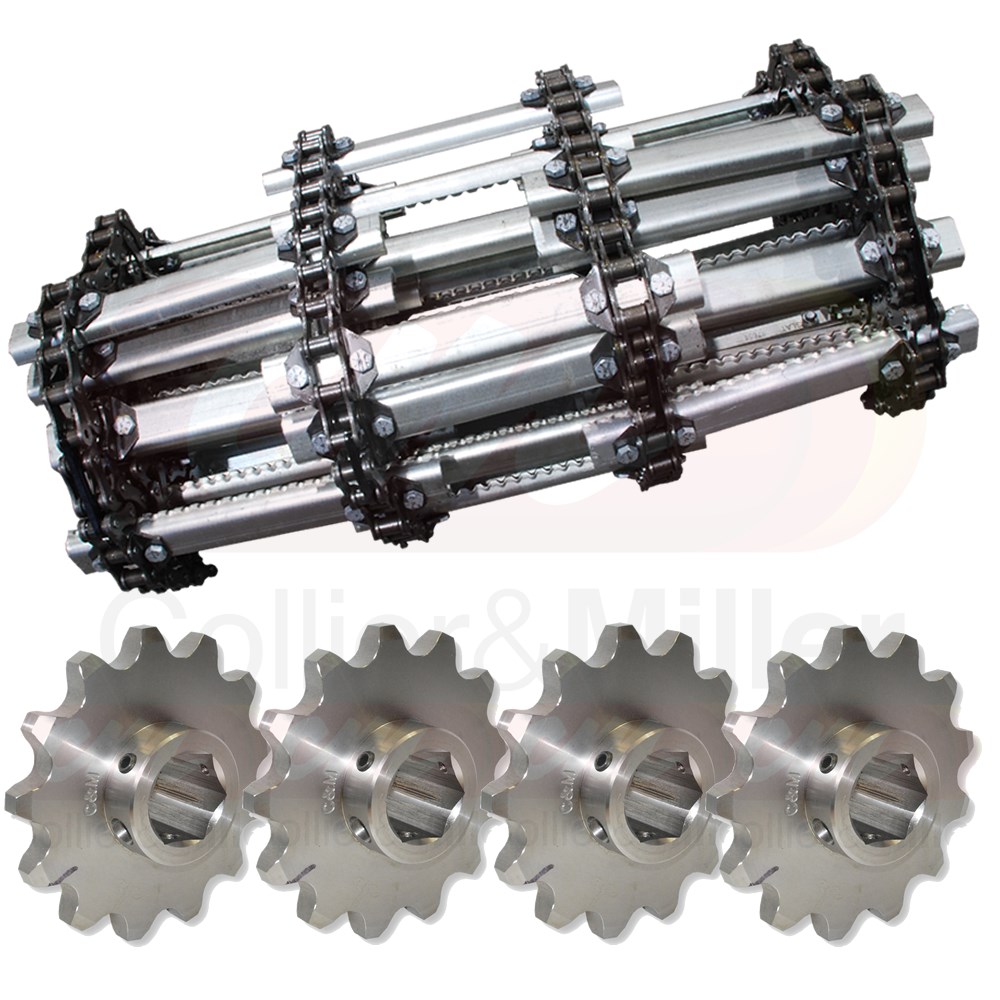

C&M aftermarket 4 strand feeder house chain and sprockets kit to fit the rear feeder house on AGCO Gleaner® S78 Series combine harvesters. This kit contain 1 x feeder chain set (including bars) and 4 x sprockets. Order this kit to refurbish your feeder house.
*This chain assembly is supplied 8-4-4-8 bar spacing which is wider than the original 6-2/4-2/4-6 chains. AGCO chains on later serial machines use this wider bar spacing.
| Brand |
Part No. |
Description |
| AGCO |
71456599 |
Combine Rear Feeder House Chain Assembly |
|
71394665 |
Sprocket, 13 Tooth Feed Conveyor 13T 4 Required |
|
|
S68 / S78 / S88 TRANSVERSE COMBINE (2014-2016) (EHTVX501-X999) (FHTVX101-X999) (GHTVX101-X999) |

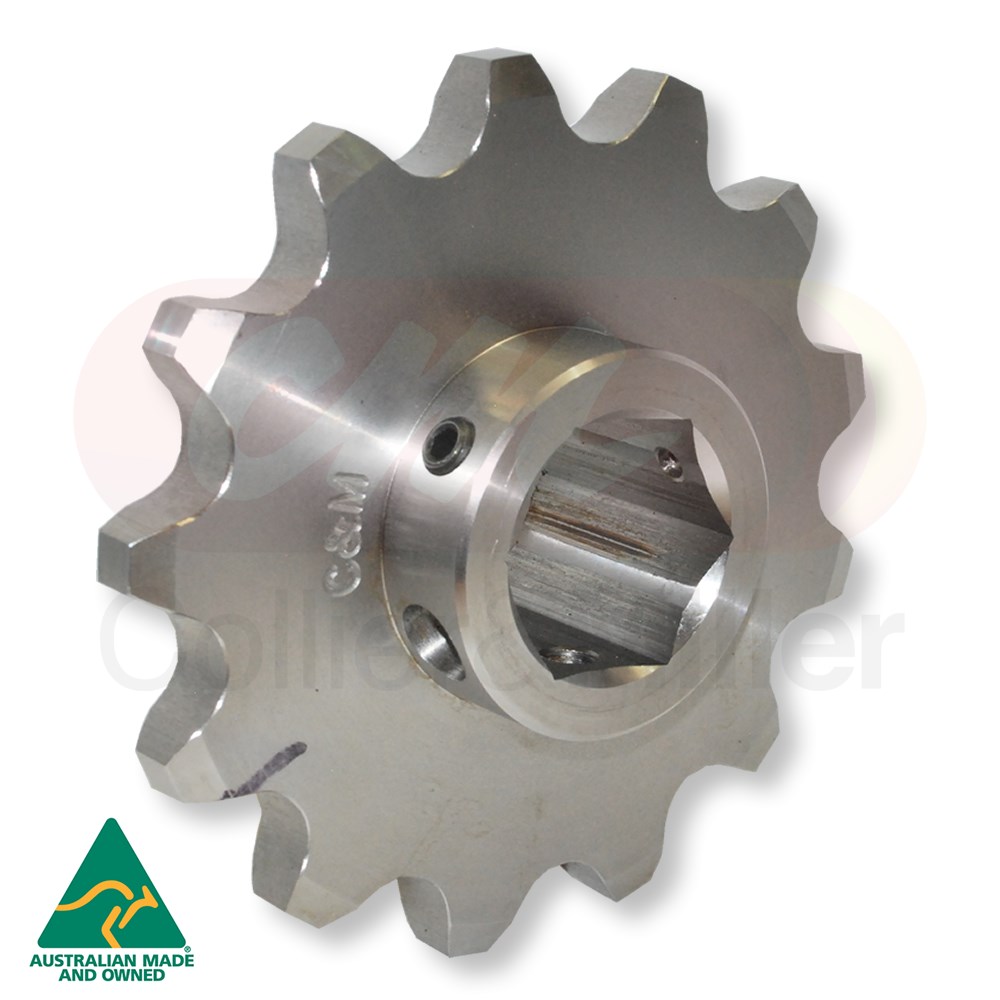

Sprocket Features
- C&M Made in Australia.
- Electroplated Finish
- 2" Hex Bore
- Grade 1045 sprocket material
Chain Features
- Quality A557 Chain
- Same spacing as the OEM chain
- Roll-Serrated Electroplated Bars
- 4 x Connectors 8 x Offset Links
- High tensile fasteners
- Ready to install
