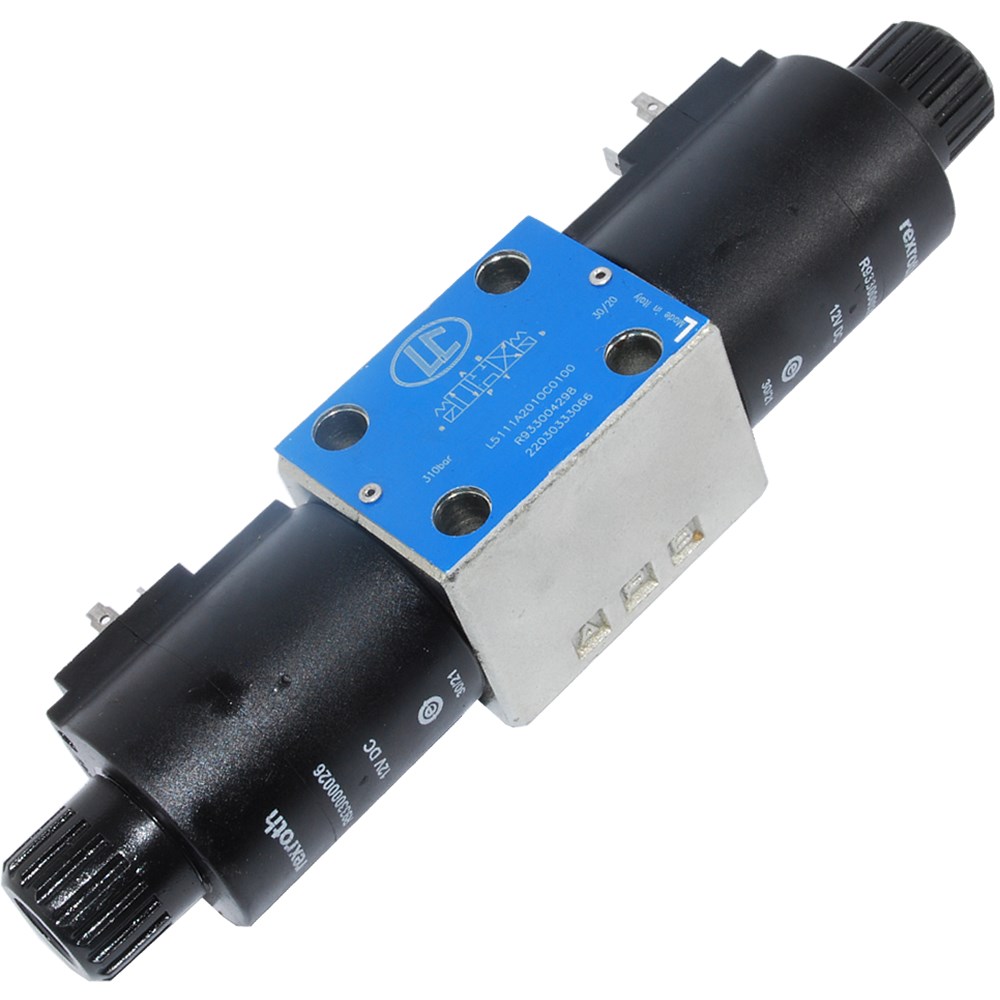

CETOP 3 DIRECTIONAL CONTROL VALVE 12V 3 POSITION 4 WAY O/C 70LPM 310 BAR

VALVE 12V 3 POSITION 4 WAY O/C 70LPM 310 BAR

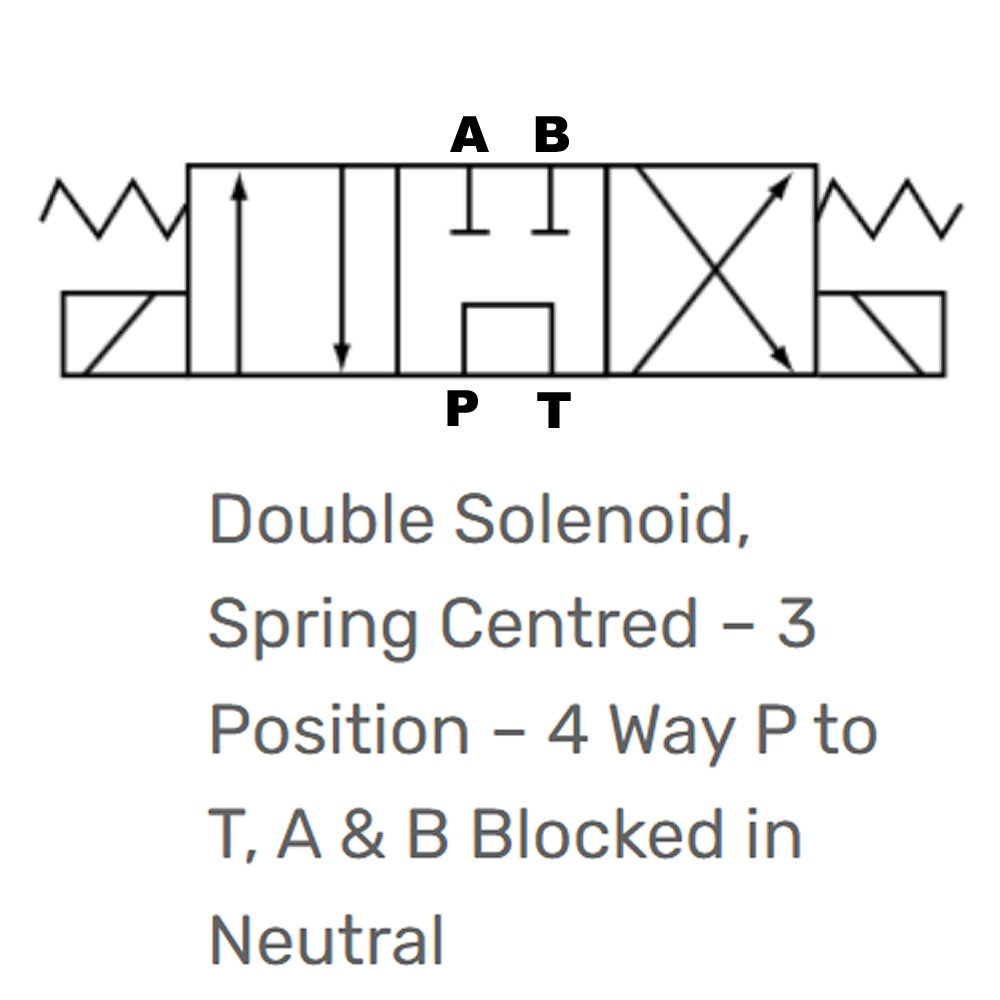

LC1A Solenoid operated directional valve. Double solenoid, spring centered - 3 Position - 4 way. P to T, A & B blocked in neutral.

Operation	Double Solenoid
Mount	Cetop 3
Max Flow Rate	70 L/Min
Max Tank Line Pressure (Static)	310 BAR
Max Tank Line Pressure (Dynamic)	250 BAR
Voltage	12V DC
Position	3
Way	4
Ports	P to T, A & B blocked in neutral
