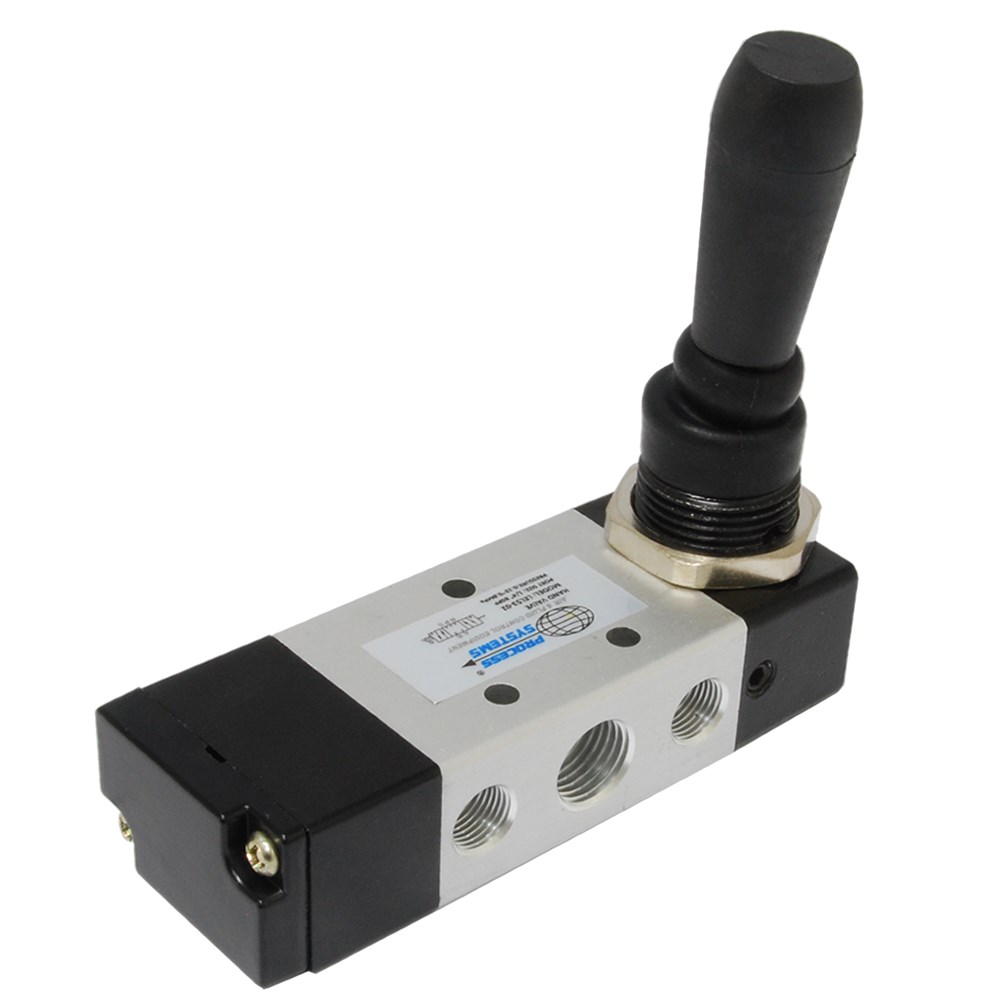

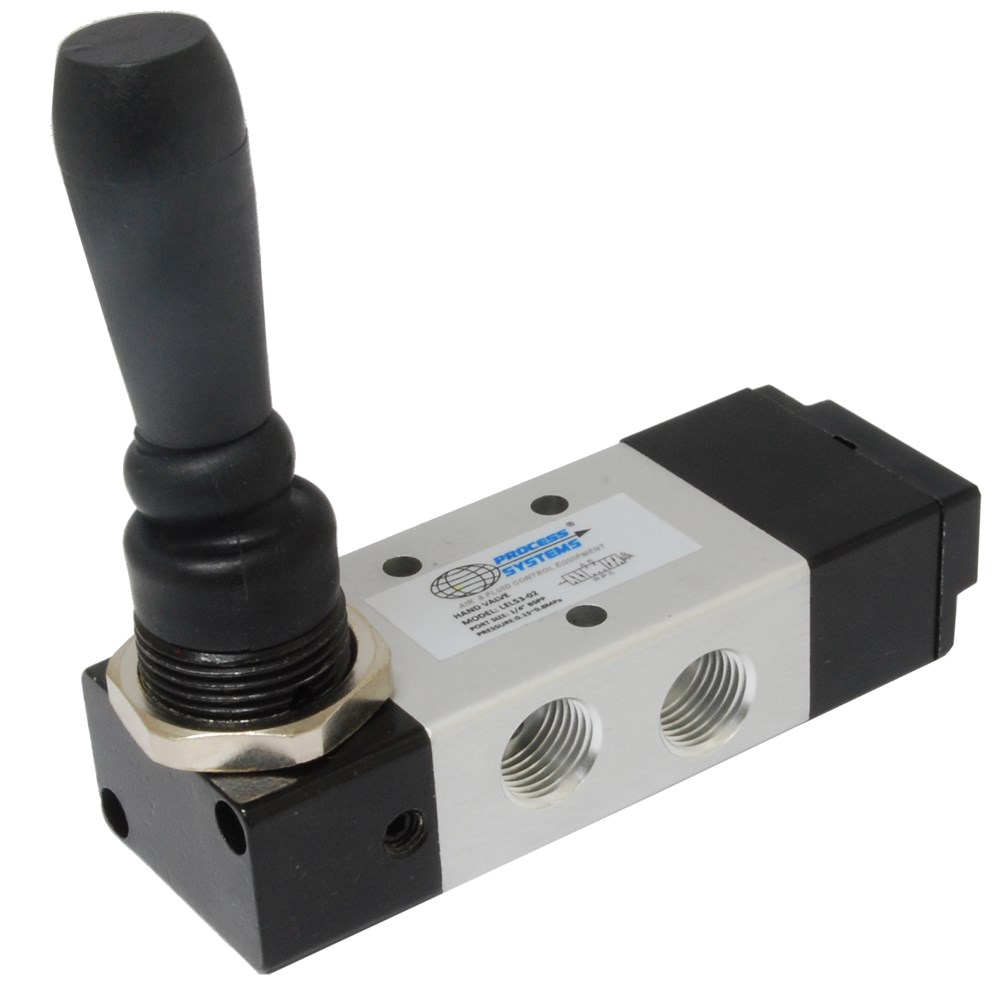

MECHANICAL AIR VALVE 5/3 TOGGLE LEVER SPRING CENTRED CLOSED CENTRE

TOGGLE LEVER SPRING CENTRED CLOSED CENTRE

Product Code: LEL5302

Detail
Downloads

Process Systems (5-Way 3-Position) Joystick - Two Action

The LEL53 series are a five way three position joystick control valve. The sprung center position has closed ports so no air can be put in or exhausted from the valve (will hold your cylinder in its last position). Ideal for controlling cylinders (allows you to 'creep' your cylinder forward or back and then hold it in one spot) or pneumatic actuators simply push the lever one way or the other. Simple to use, install and maintain.

Specifications

5-way 3-position (5/3)
Normally Closed - all ports closed in neutral
Joystick
Pressure 0-10 bar
Port 1/4"-F BSP

Typical Uses

Control a double action cylinder or motor in two directions with center closed and ports closed.
