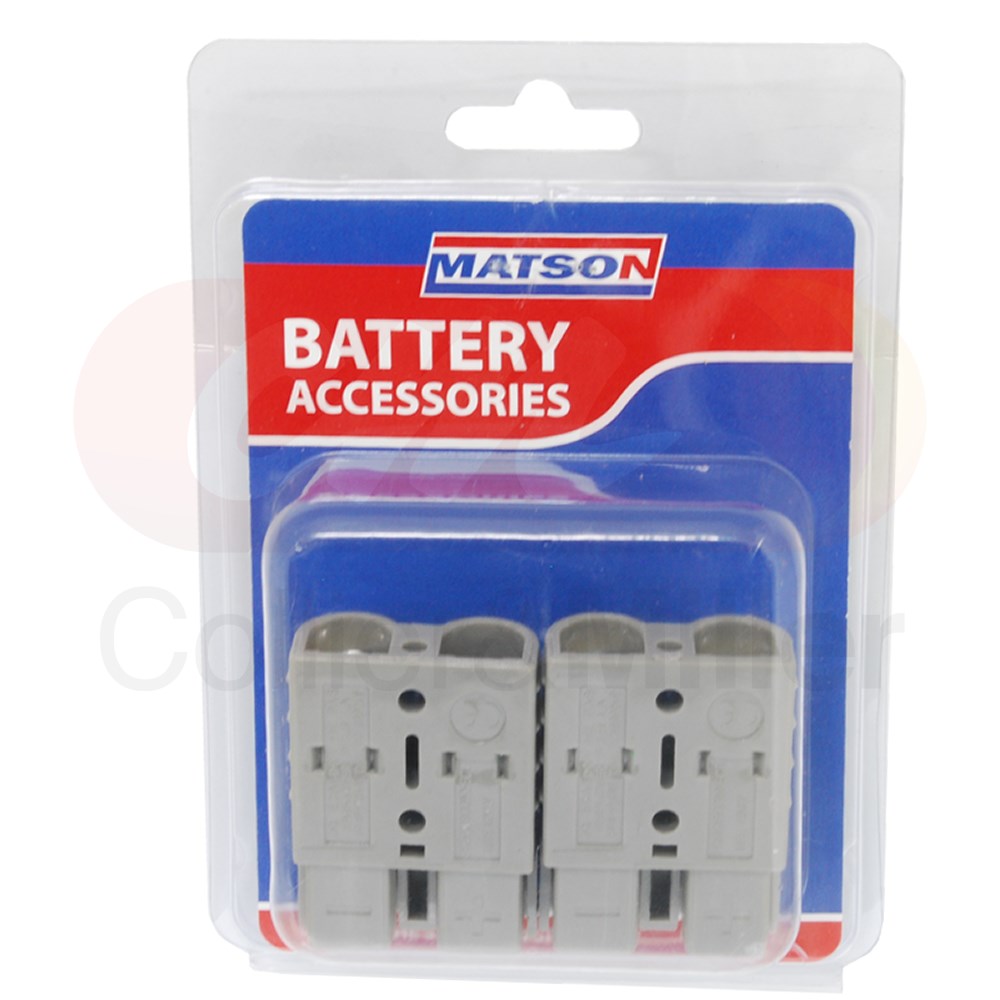

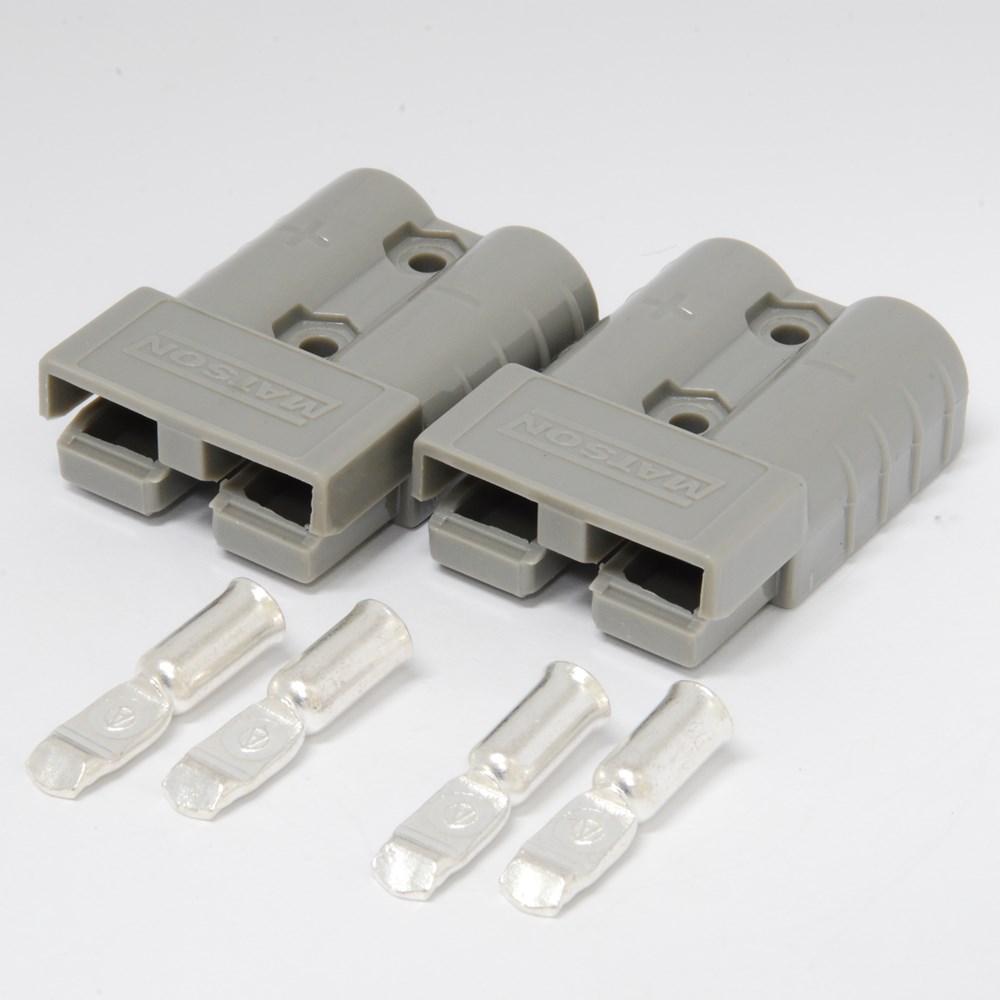

The 50 amp Anderson SB style DC connector is a type of electrical connector that is designed for high-power applications. It consists of two parts - a housing and a set of contacts - that are joined together to create a secure and reliable connection. The connector is commonly used in automotive, industrial, and marine applications, where it is used to connect high-power devices such as batteries, motors, and inverters. The 50 amp rating of this connector refers to the maximum current that it can safely carry. The Anderson SB style DC connector is known for its durability, ease of use, and ability to withstand harsh environmental conditions. Its compact size also makes it a popular choice for applications where space is limited.
Features
- High power handling capability: These connectors are capable of handling up to 50 amps of current, which makes them ideal for high-power applications.
- Durability: Anderson SB type connectors are designed to withstand harsh environmental conditions and are made from high-quality materials that resist corrosion and wear.
- Ease of use: The connectors are designed to be easy to use, with a simple push and pull locking mechanism that ensures a secure connection.
- Versatility: The connectors can be used in a wide range of applications, including automotive, industrial, and marine applications.
- Compact size: The connectors are relatively small in size, which makes them ideal for applications where space is limited.
- Safety: Anderson SB type connectors are designed with safety in mind, with features such as polarized housings and finger-proof designs that minimize the risk of electrical shock or short circuits.
- Cost-effective: These connectors offer a cost-effective solution for high-power applications, as they are relatively inexpensive and require minimal maintenance.
Specifications
- Up to (16mm2) Wires Allows UL rated currents up to 50 amps
- Chemical resistant housing option Extends temperature range down to -20°C, while offering enhanced UV and chemical resistance
