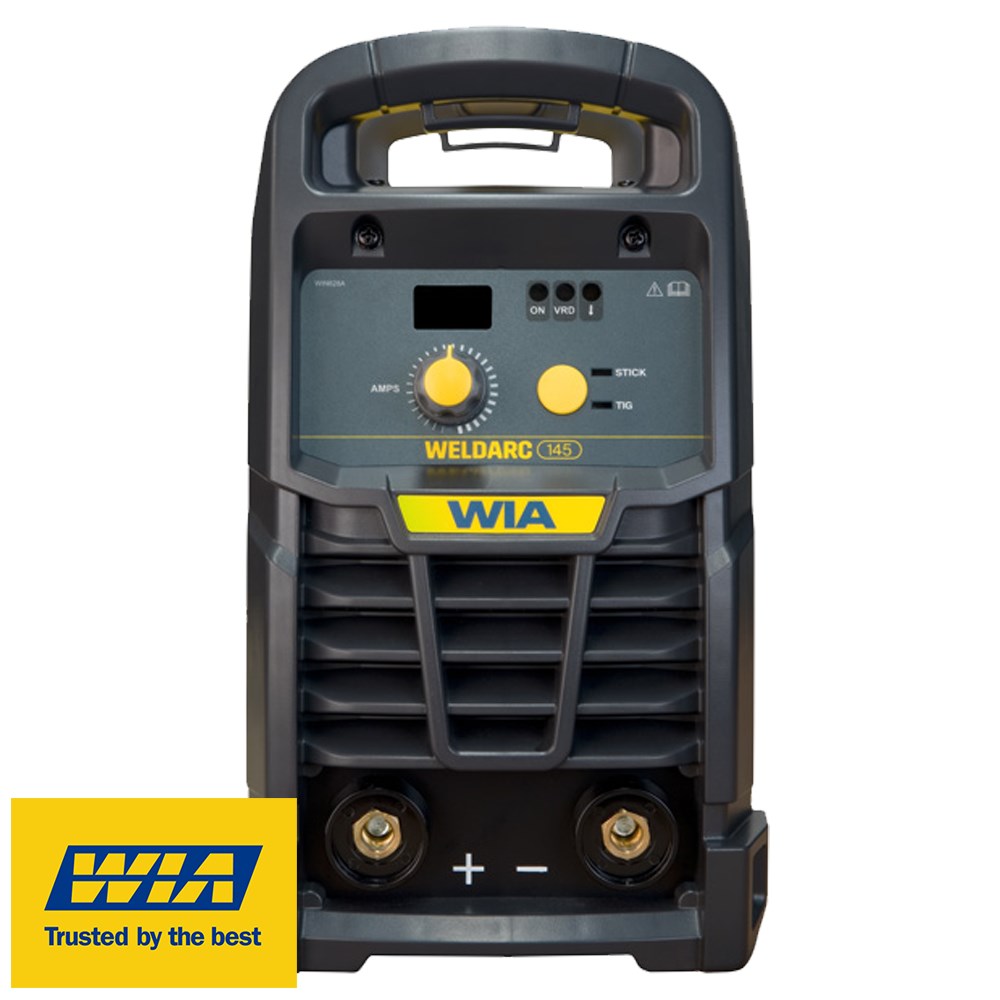

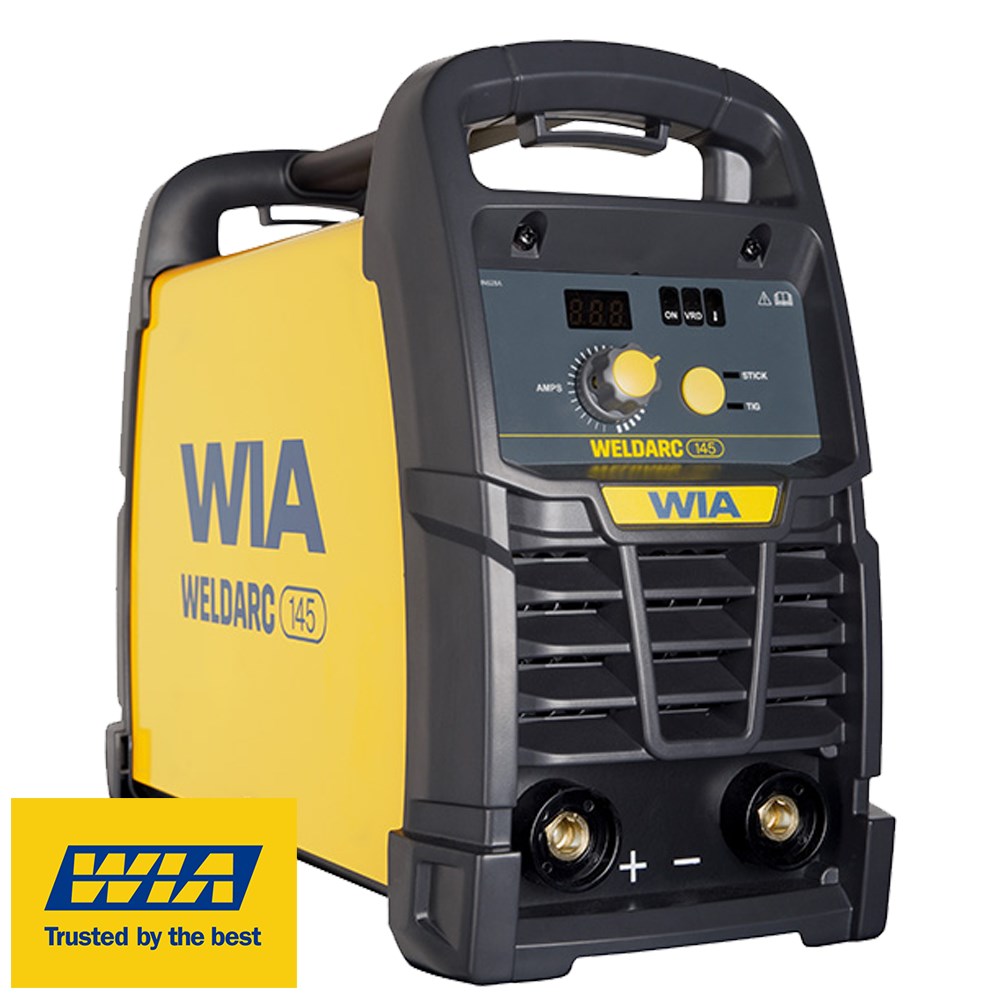

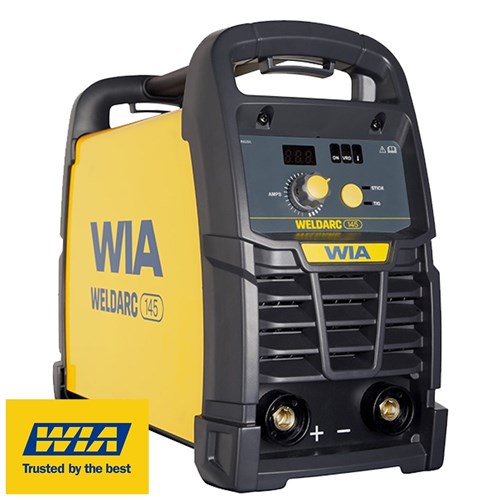

WIA Weldarc 145 Single Phase Stick/ Tig Welder

If you’re just starting out or have some welding experience, the Weldarc 145 is the ideal DC Stick/TIG welder for you. Best for general maintenance and repair work, this little unit is robust, yet lightweight and portable making it easy to pick up and pack up.

With up-to-date date technology, the 145 offers more than its competition, including power factor  correction for maximum efficiency and an IP23S rating, providing extra protection for harsh environments. Built with quality components and manufactured to deliver, you’ll get more than you pay for with the 145.

Features

• 145 A single phase Stick/TIG Welder
• 145 A at 25.8 V 20% Duty Cycle

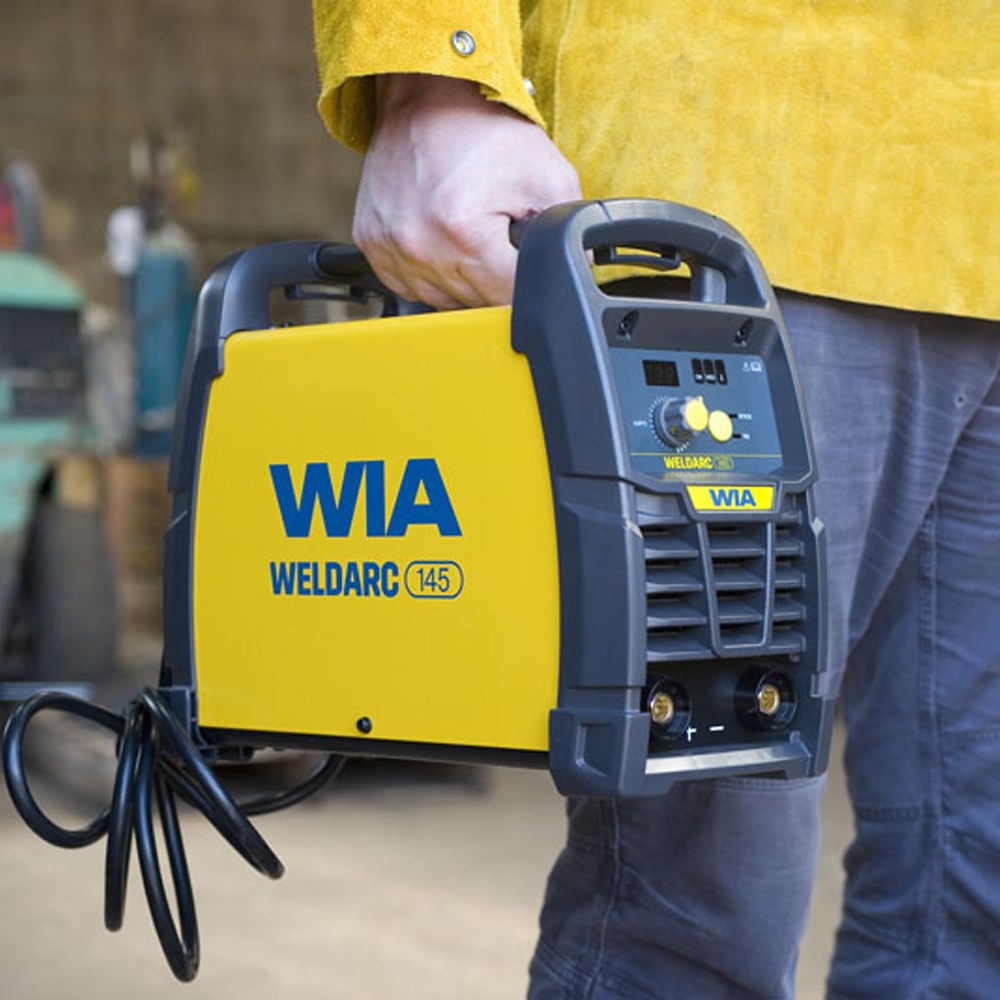

• Portable – Only 7kg
• DC Lift Arc TIG Start – For smoother starting without sticking to the workpiece
• Digital Meters – Easy to read and easy to adjust parameters
• Power Factor Correction – Smooths out the actual input current. Maximises efficiency when welding on long leads or from generators
• Built-In Thermal Protection – Prevents the machine from operating beyond its safe thermal zone
• Fan-on-Demand™ Cooling Fan – Reduces noise, energy use and contaminates
• Arc Force – Provides a more stable arc and prevents electrode sticking
• Hot Start – For better, easier arc starting
• VRD (Voltage Reduction Device)
• IP23S rated – Provides extra protection in harsh environments
• Generator compatible – 7 kVa

Includes

• WIA Weldarc 145 Stick/ Tig Welder
• 3m Heavy Duty Work Clamp
• 4m Industrial Twist Lock Electrode Holder
• Padded Shoulder Strap
• Carry Case

Specifications

• Primary Voltage: 240 VAC-50/60Hz
• Rated Primary Current: 8.5 Amps
• Max Primary Current: 19 Amps
• Recommended Generator Power: 7 kVa
• Supply Plug: 10 Amp
• Standards Compliance: AS60974.1 & AS1674.2 (VRD)
• IP Rating: IP23S
• Weight: 7kg
• Warranty: 3 Years
