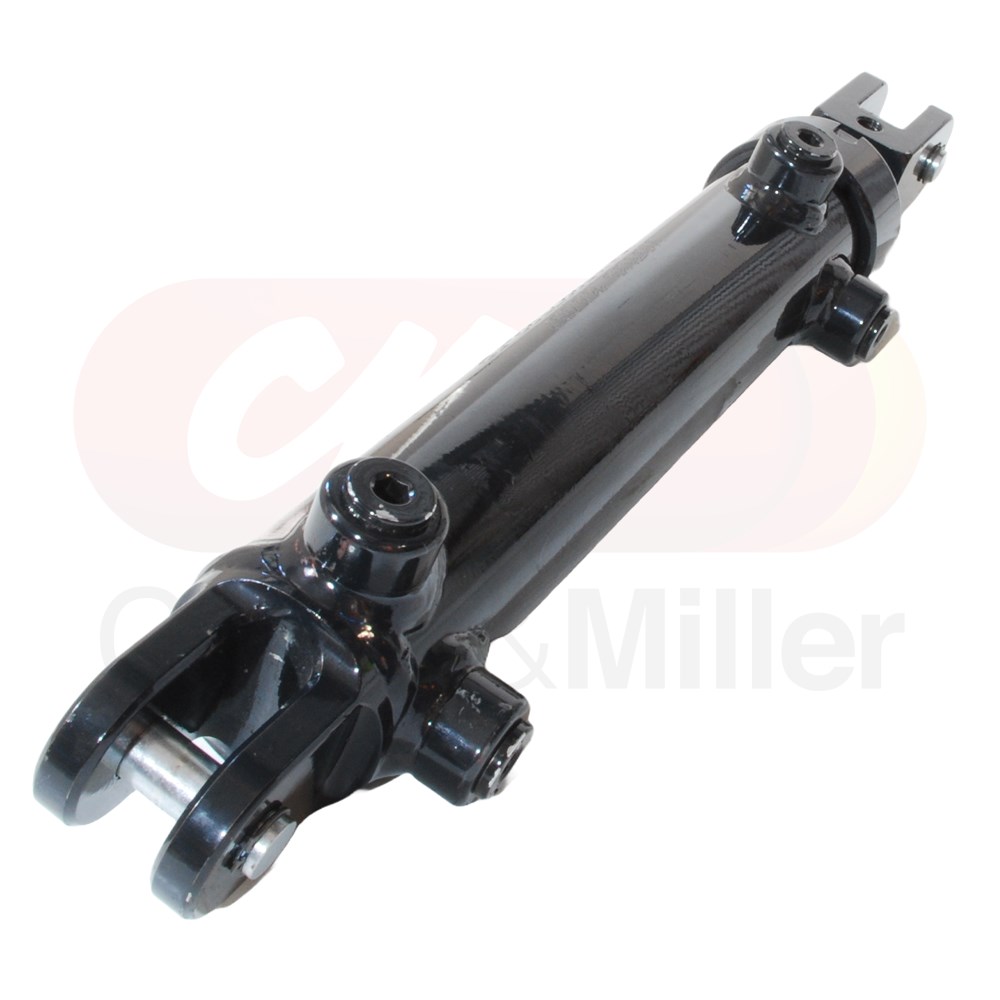

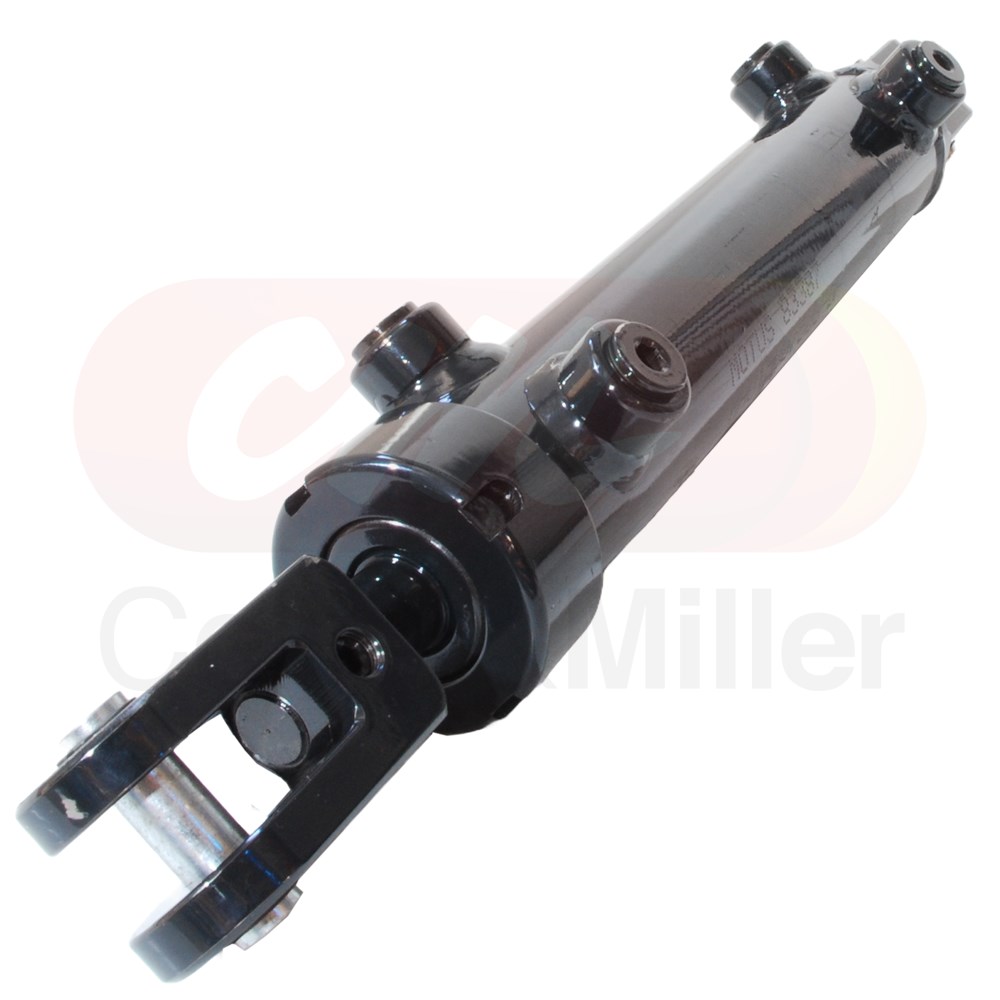

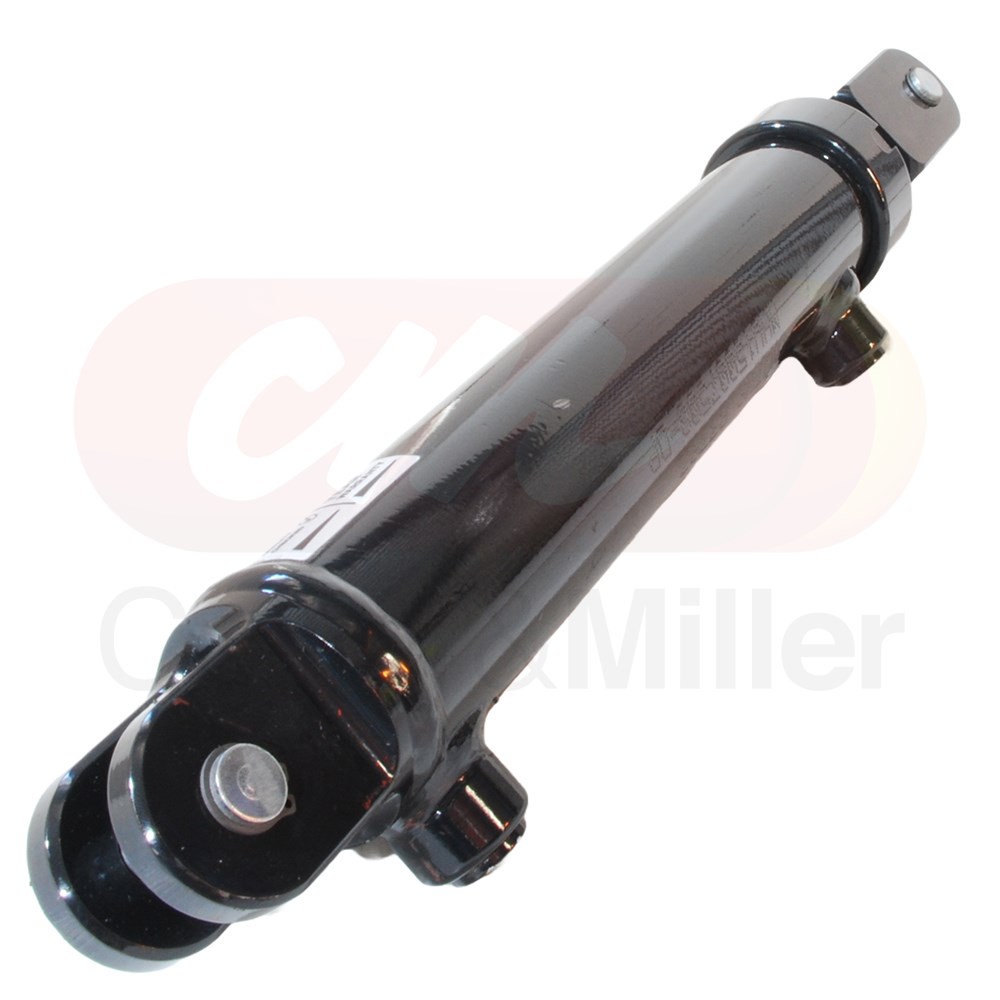

MOTUS HYDRAULIC RAM 1-1/2 X 16 3/4 ROD X 1/2 PIN 9/16 UNO A&B PORT C/CENTRE 6.5" + STROKE

3/4 ROD X 1/2 PIN 9/16 UNO A&B PORT C/CENTRE 6.5" + STROKE

Product Code: MHU1507516DP

Detail
Downloads

Motus® Ultra™ ASEA Cylinder

Motus® Ultra series of 4000 psi hydraulic cylinders is a combination of quality componentry coupled with clever design. A key factor in the development of our Ultra range was reliability for customers operating in harsh working environments. Our externally threaded cap design paired with a robust heavy-duty seal combination gives the Ultra exceptional strength.

Features

SAE style female clevis cylinder, built to suit international standard sizing.
Robust external threaded cap design
Heavy duty grade seals
High mechanical strength
Well suited to heavy duty agricultural, industrial and commercial applications

Seals

Piston seals 5 piece heavy duty unit seal rated to 4000psi, including anti extrusion and wear rings. No metal to metal contact.
Shaft seal Premium quality polyurethane pressure seal for long life usage.
Wiper seal Heavy duty polyurethane wiper scraper.
Outer head/gland seal Static sealing O-ring with contoured face back up ring

Specifications

Motus Ultra™ Series
Bore=1.50"
Stroke=16.00"
Shaft Diameter=0.75"
Close length pin to pin = 22.50"
