MOTUS HYDRAULIC RAM 3 X 4 1 1/2 ROD X 1 PIN 3/4 UNO A&B PORT C/CENTRE 12.25" + STROKE

1 1/2 ROD X 1 PIN 3/4 UNO A&B PORT C/CENTRE 12.25" + STROKE

Product Code: MHU30015004DP

Detail
Tech Specs
Downloads

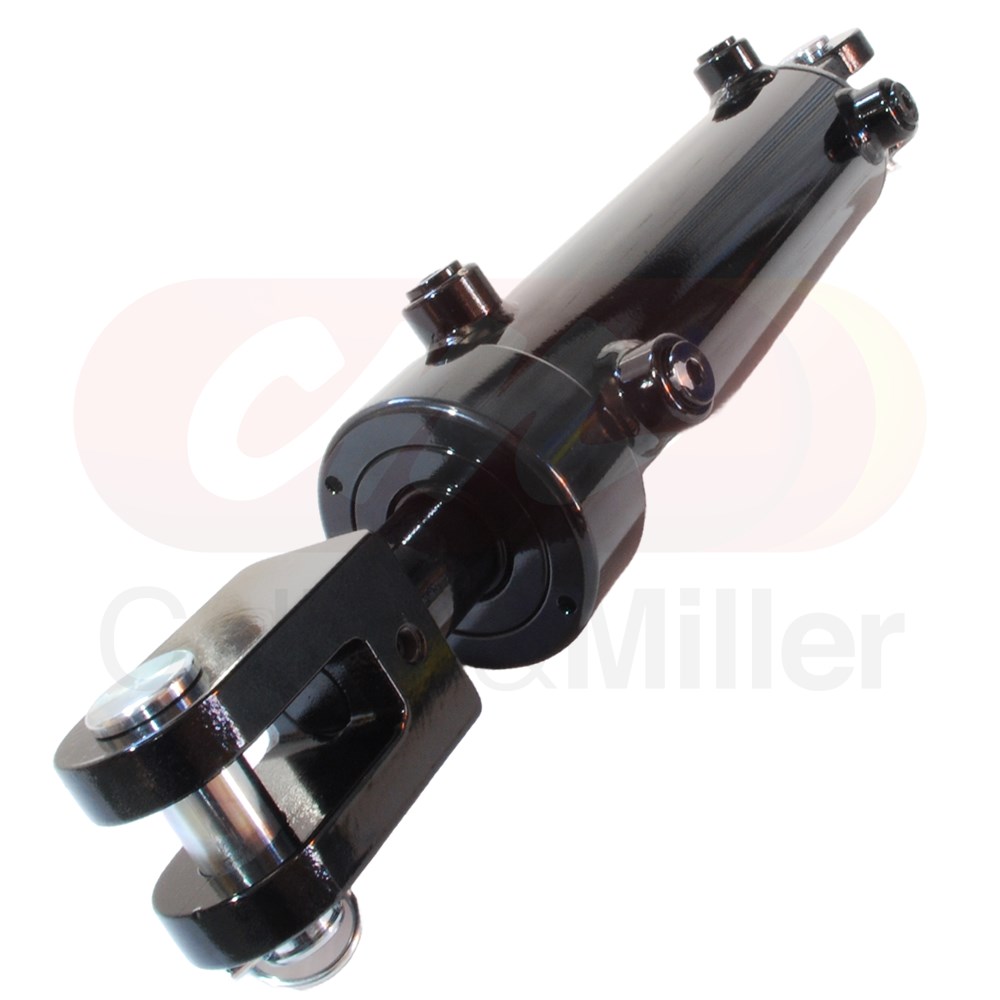

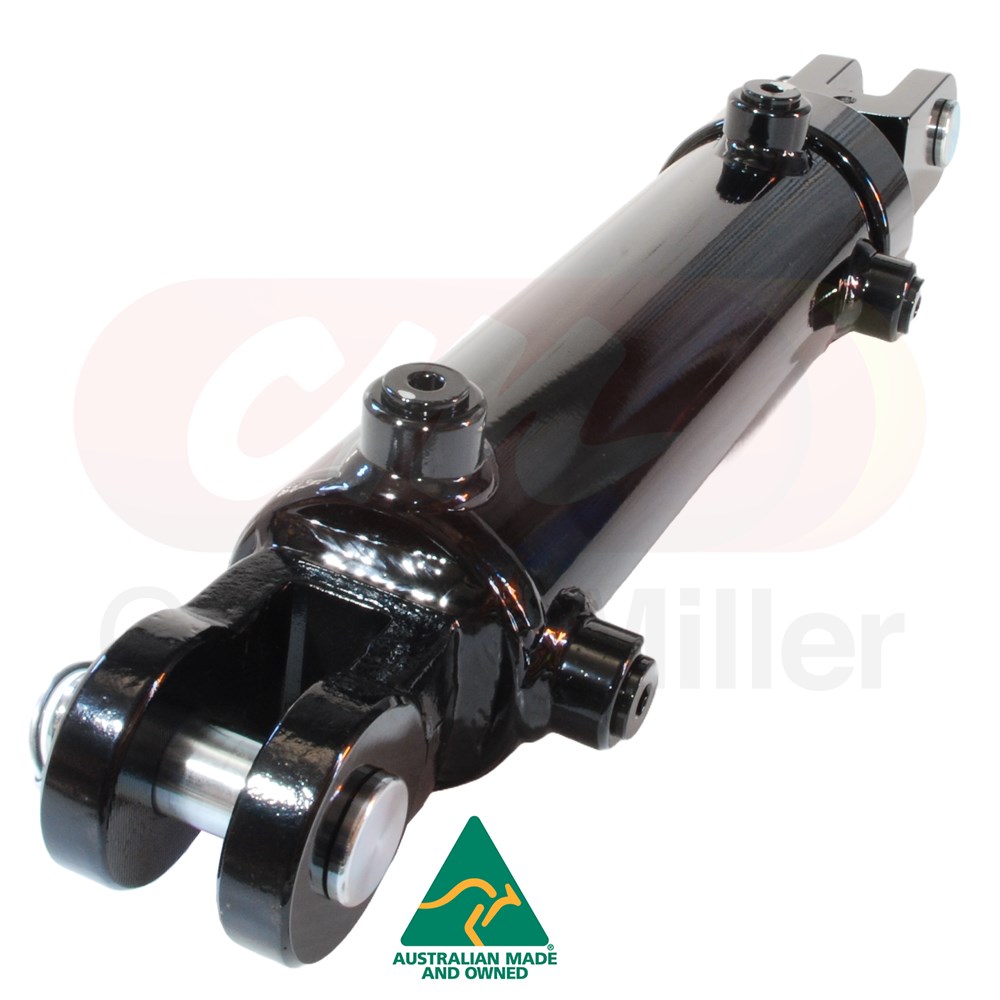

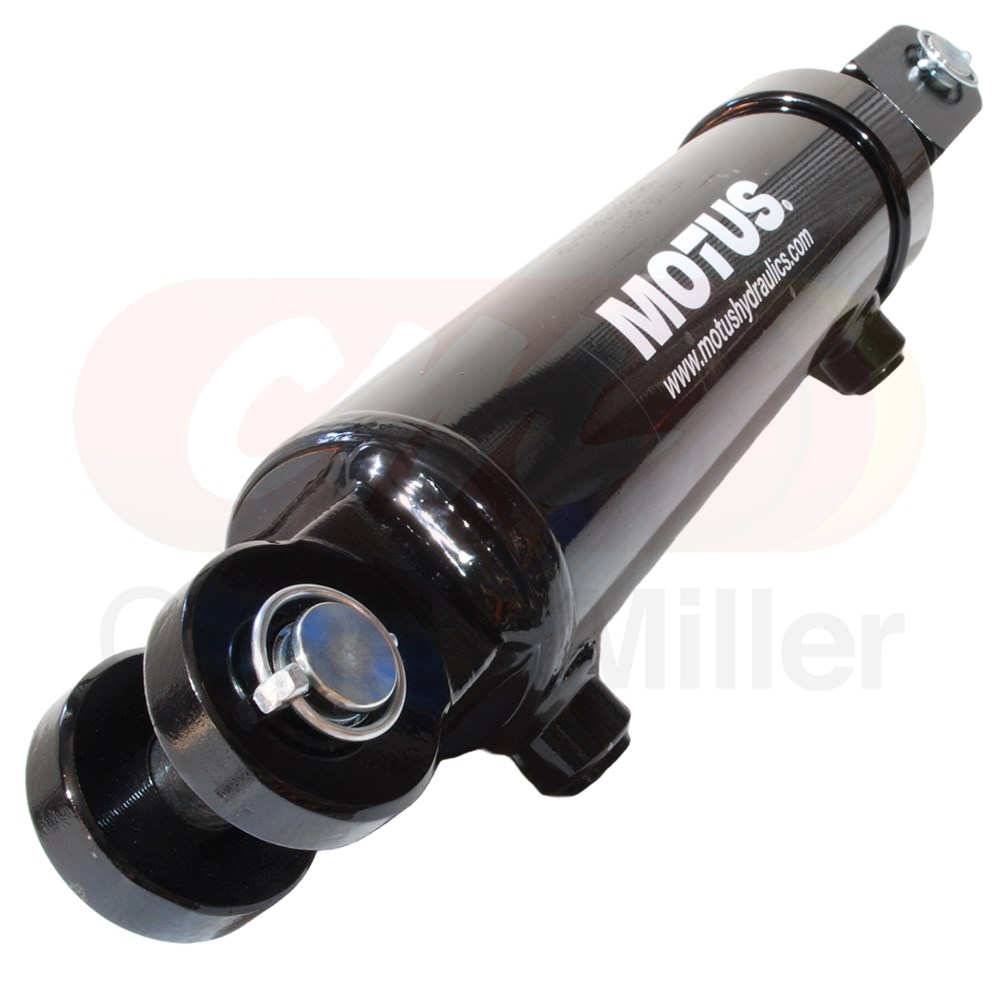

Motus® Ultra™ Clevis Yoke SAE Cylinder

3.00" Bore x 4.00" Stroke x 1.50" Rod

Motus® Ultra series of 4000 psi hydraulic cylinders is a combination of quality componentry coupled with clever design. A key factor in the development of our Ultra range was reliability for customers operating in harsh working environments. Our externally threaded cap design paired with a robust heavy-duty seal combination gives the Ultra exceptional strength.

Features

SAE style female clevis cylinder, built to suit international standard sizing.
Robust external threaded cap design
Heavy duty grade seals
High mechanical strength
Well suited to heavy duty agricultural, industrial and commercial applications

Seals

Piston seals 5 piece heavy duty unit seal rated to 4000psi, including anti extrusion and wear rings. No metal to metal contact.
Shaft seal Premium quality polyurethane pressure seal for long life usage.
Wiper seal Heavy duty polyurethane wiper scraper.
Outer head/gland seal Static sealing O-ring with contoured face back up ring

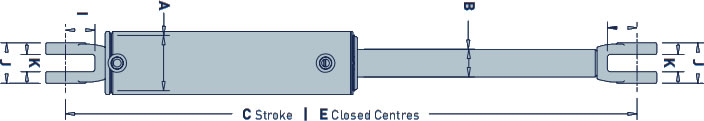

Cylinder Critical Dimensions

A BORE	B SHAFT	C STROKE	E CLOSED CENTERS	F PIN DIA	H PORT SIZE	K CLEVIS WIDTH
1.50"	0.75"		Stroke + 9.50"	0.75"	1/4" BSPP-F	19mm
2.00"	1.00"		Stroke + 9.50"	0.75"	1/4" BSPP-F	19mm
2.50"	1.50"		Stroke + 12.25"	1.00"	3/8" BSPP-F	28mm
3.00"	1.50"		Stroke + 12.25"	1.00"	3/8" BSPP-F	28mm
3.50"	1.75"		Stroke + 12.25"	1.00"	1/2" BSPP-F	28mm
4.00"	2.00"		Stroke + 12.25"	1.00"	1/2" BSPP-F	28mm

Cylinder Force Table (KGf)

Bore	500 PSI 34 Bar Extend / Retract	1000 PSI 69 Bar Extend / Retract	1500 PSI 103 Bar Extend / Retract	2000 PSI 138 Bar Extend / Retract	2500 PSI 172 Bar Extend / Retract	3000 PSI 206 Bar Extend / Retract
1.50"	393 / 295	786 / 598	1,195 / 893	1,580 / 1,193	1,988 / 1,488
2.00"	717 / 510	4,437 / 1,040	2,141 / 1,549	2,855 / 2,070	3,579 / 5,579
2.50"	1,080 / 704	2,192 / 1,427	3,263 / 2,130	4,384 / 2,865	4,384 / 2,865	6,546 / 4,272
3.00"	1,600 / 1,142	3,206 / 2,314	4,809 / 3,446	6,412 / 4,619	8,015 / 5,761	9,279 / 6,893
3.50"	2,182 / 1,662	4,364 / 3,385	6,546 / 5,047	8,278 / 6,760	10,910 / 8,433	13,358 / 10,095
4.00"	2,850	5,700	8,550	11,400	14,250	16,519
5.00"	4,453	8,906	13,359	17,813	22,266	25,798
