Hydraulic Gearboxes

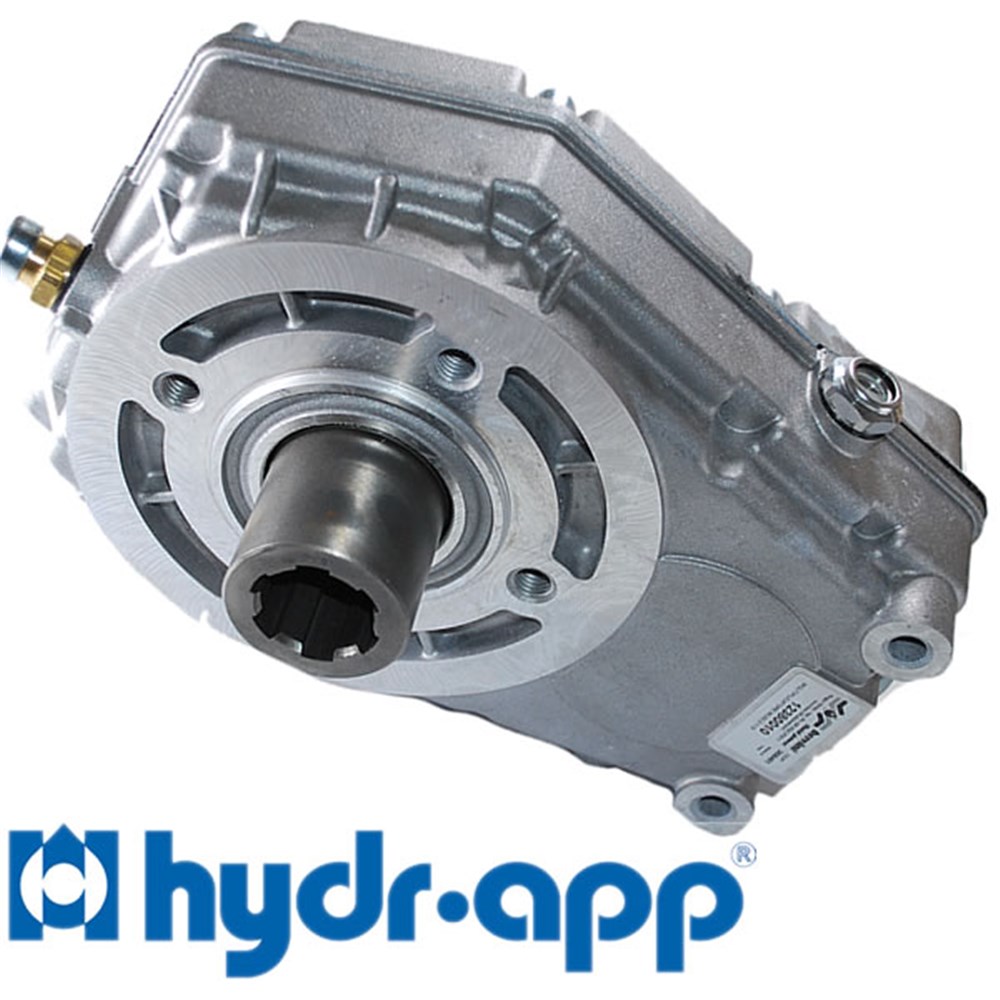

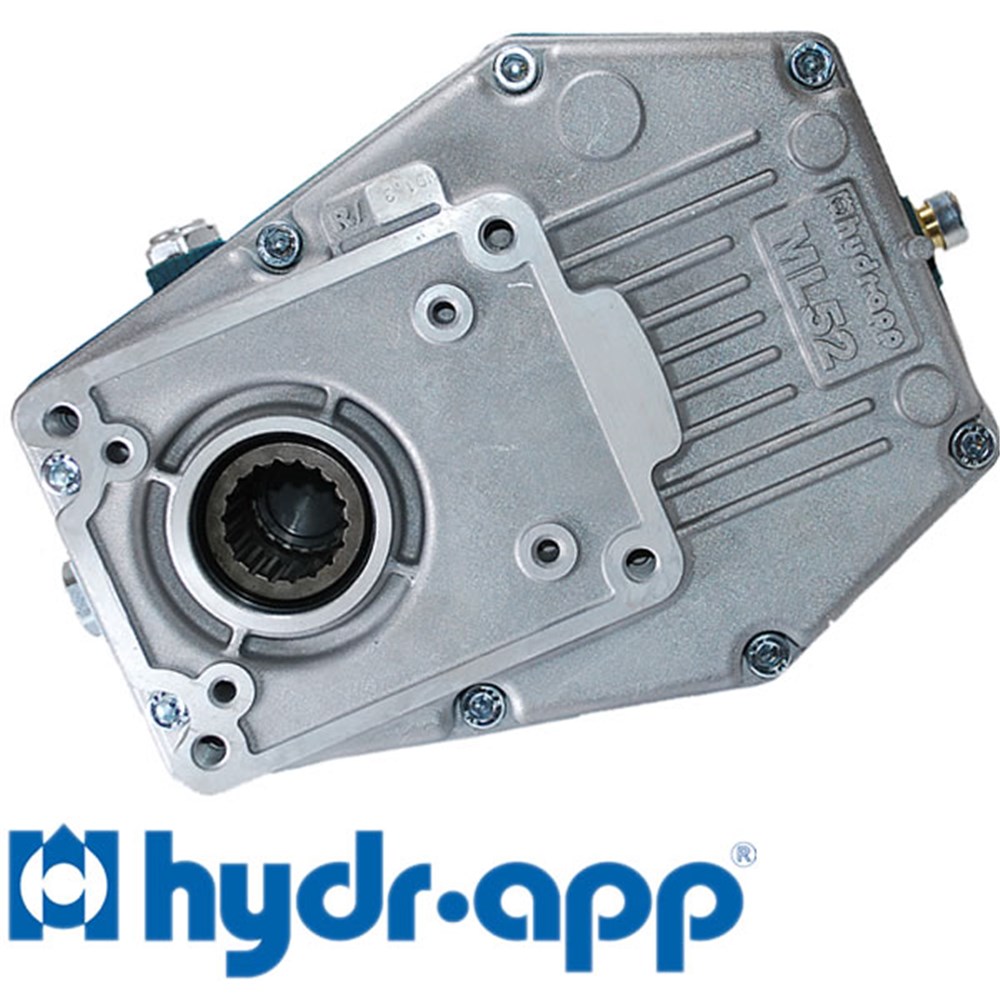

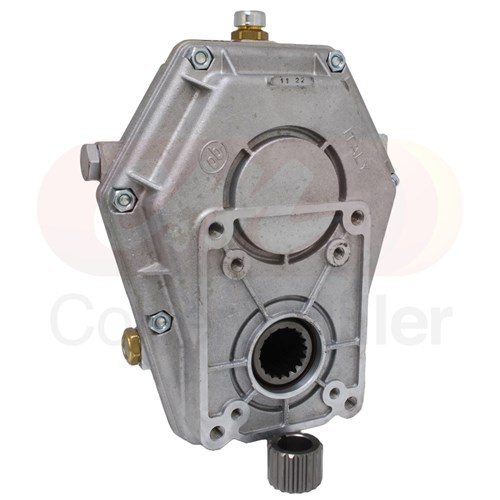

HYD PUMP STEP-UP GEARBOX GRP3

(DIN GRP3, RATIO 3.0:1) 1-3/8 FEMALE X 6 SPLINE

Product Code: ML522
$750.00
EACH inc GST
Afterpay Logo
4 payments of $187.50
In Stock Low Stock Contact Us Please See Attributes 2
Increase value Decrease value

  • Detail
  • Downloads

PTO Gearbox 71000 Series (20Kw)

Standard European Group 3 Pumps


71000 series hydraulic pump drive step-up gearboxes provide the connection for a hydraulic pump to the low speed tractor Power Take-off shaft. The standard power take-off speed, 540 RPM, is increased to the optimum speed conditions for the pump. Consequently a smaller and less costly pump can be utilised that will provide the same flow as a considerably larger direct driven pump.

In addition because the pump is being driven at an optimum speed the pump will have a greater increased overall efficiency and service life compared to most standard pumps which are not designed to operate at 540 RPM. 71001-4/10014 series gearboxes interface with standard european group 3 mount pumps.

TECHNICAL SPECIFICATIONS

Maximum Speed 3000RPM
Speed Increase Ration 3:1
Maximum Continous Power @ 540 RPM (Input) 20Kw
Input Shaft Female 1-3/8" Z6 DIN 9611
Output Interface See Dimension Data on Download Sheet for options
Working Temperature Optimal 70°C, Maximum 85°C
Gearbox Oil (Lubrication) 350Ml of SAE90
Weight 9.2KG
