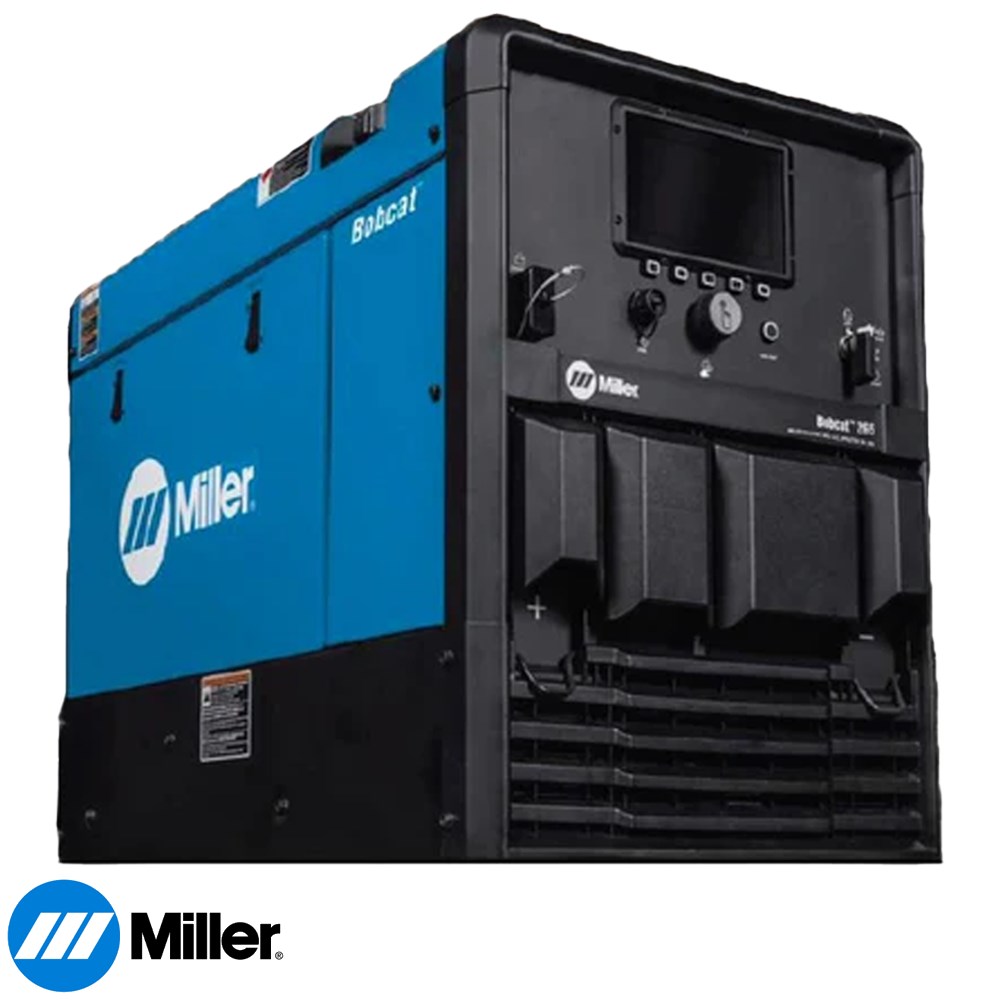

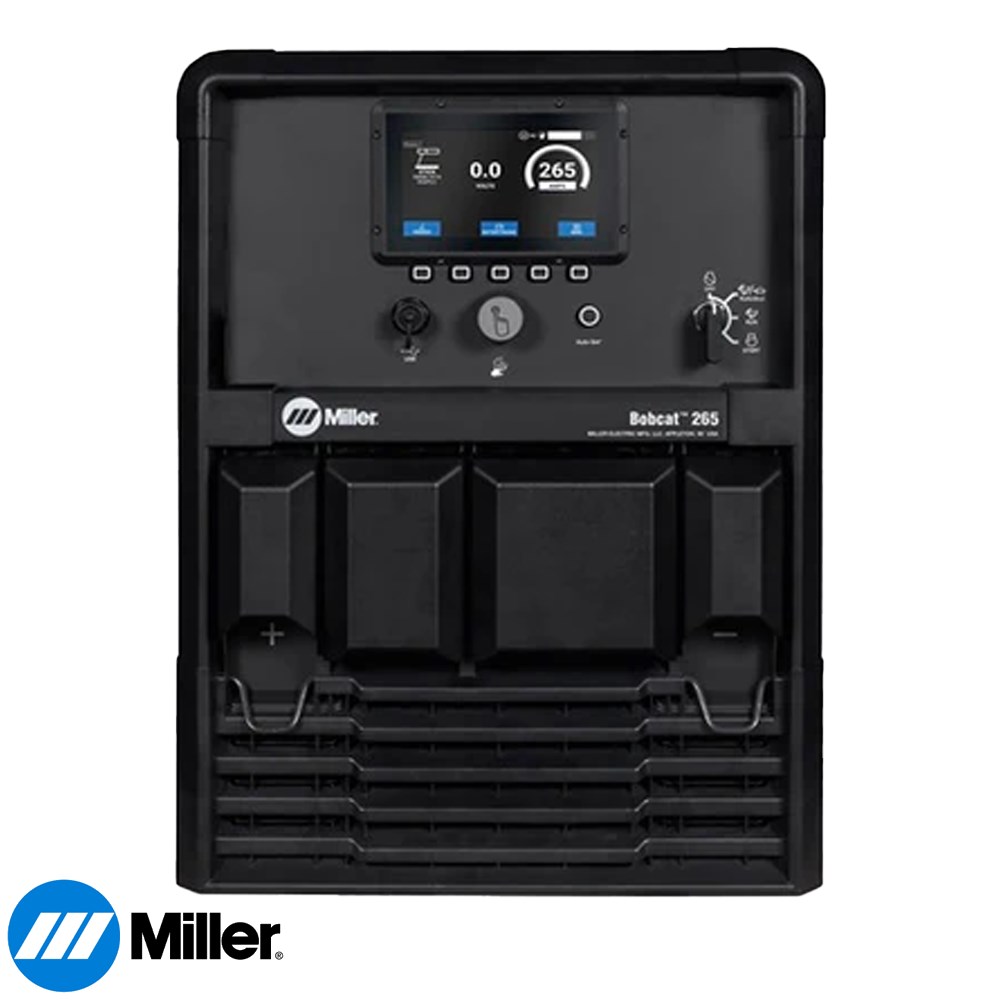

Miller Next-Generation Bobcat™ 265
The Next-Generation Bobcat™ 265 delivers legendary dependability with enhanced features for superior performance, ease of use, and portability. With smooth, stable arcs, Auto-Set™ technology for fast and accurate weld setup, and a digital interface for simplified operation, it’s designed to handle diverse welding tasks effortlessly. Its lighter, more compact design—100 lbs (45 kg) lighter and 13% smaller than previous models—makes it easy to transport, while full auxiliary power ensures consistent tool operation without power spikes. Optional features like ArcReach™ technology and battery charge/crank assist boost productivity and convenience. Powered by a 23.5 hp Kohler engine, the Bobcat™ 265 is ideal for fabrication, field welding, and industrial applications, making it the ultimate choice for professionals seeking reliability and innovation.
Features
- Smooth, stable arcs for superior stick welding performance
- Auto-Set™ technology for fast and accurate weld parameter setup
- Digital interface for simplified operation and quick setup
- Lighter and more compact design—100 lbs (45 kg) lighter and 13% smaller
- Full auxiliary power with no spikes for consistent tool operation
- Remote Start/Stop to reduce idling, fuel costs, and noise
- Optional ArcReach™ technology for parameter adjustments at the weld joint
- Optional battery charge/crank assist for reliable DC output
- 23.5 hp Kohler engine for powerful, reliable performance
- Ideal for fabrication, field welding, and industrial applications
Specifications
- Amperage Range: 20 A - 265 A
- Weld Output: CC/DC Stick/TIG 265 A at 27 V, 100% duty cycle, CV/DC MIG/FCAW 265 A at 27 V, 100% duty cycle
- Weldable Metals: Aluminum, Stainless Steel, Steel
- Current Type: DC
- Rated Carbon Diameter: 3/16 in (4.8 mm)
- Auxiliary Power: 9500 W continuous, 11,000 W peak
- Engine: 23.5 hp Kohler, gasoline-powered
- Engine Speeds: Idle - 2400 RPM, Weld - 3600 RPM
- Fuel Tank Size: 11 gallons (41.6 liters)
- Portability: Standard lift eye; optional running gear or trailer
- Sound Rating: 64 dB @ idle, 73 dB @ weld
- Dimensions: 51 cm W x 67 cm H x 94 cm L
- Net Weight: 382 lbs (173 kg)
