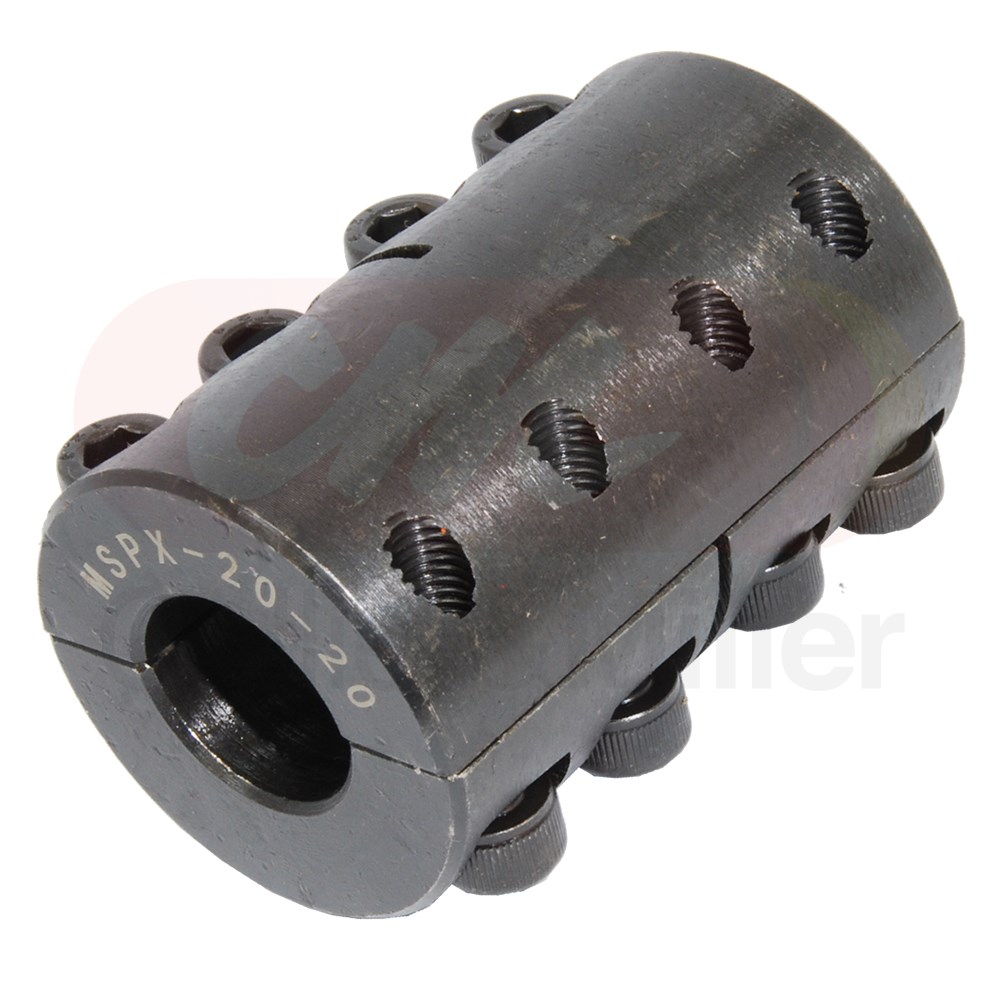

Two piece clamp design rigid coupling without keyway slot. Clamp style allows the coupling to wrap around the shaft, providing high tortional holding power without shaft damage from grub screws. This design allows for assembly and removal without moving of machinery. They are suitable for use in joining any two shafts when flexibility is not required, shaft alignment is maintained, and proper bearing support is provided.
Dimensions
| Item Code |
Bore |
A |
B |
C |
| SPX1212 |
0.750" |
1.500" |
2.250" |
1.875" |
| SPX1616 |
1.000" |
1.750" |
3.000" |
2.000" |
| SPX2020 |
1.250" |
2.000" |
3.250" |
2.250" |
| MSPX2020 |
20mm |
42mm |
65mm |
48.9mm |
| MSPX2525 |
25mm |
45mm |
75mm |
51.5mm |
| MSPX3030 |
30mm |
53mm |
83mm |
59.7mm |
