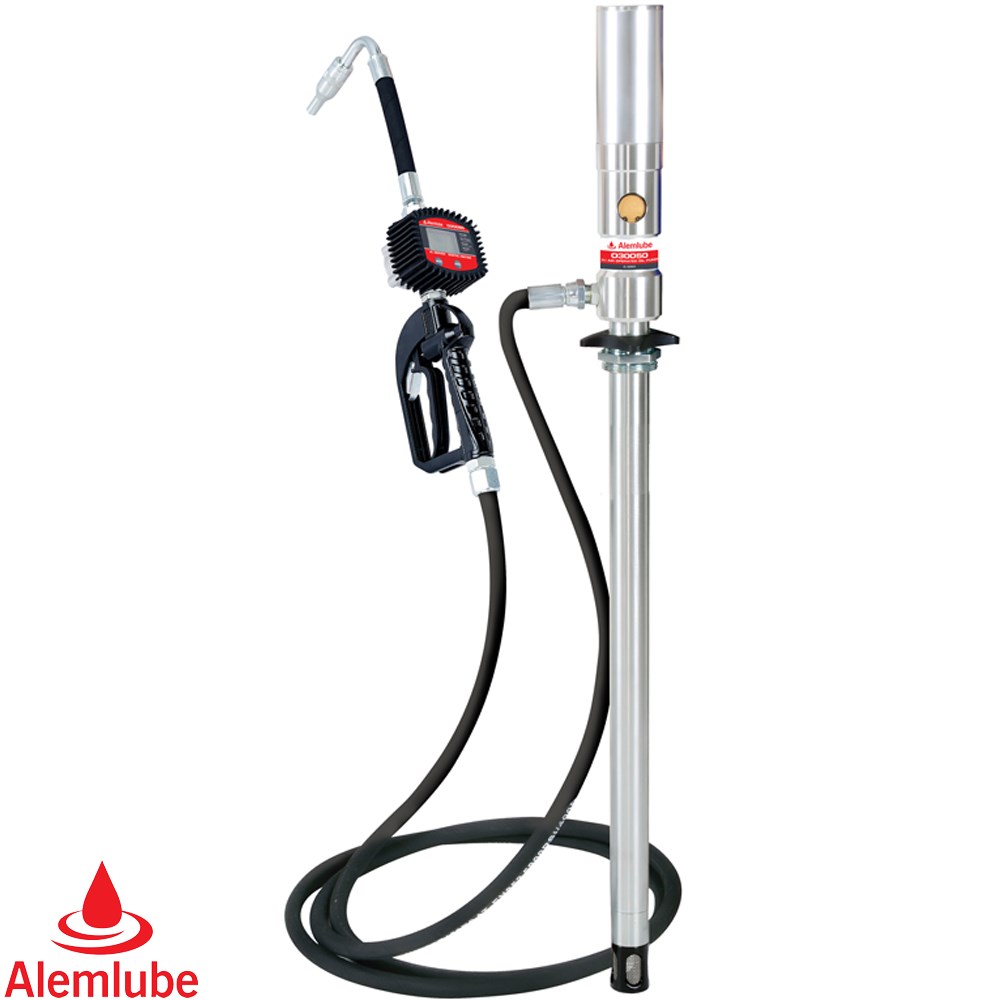

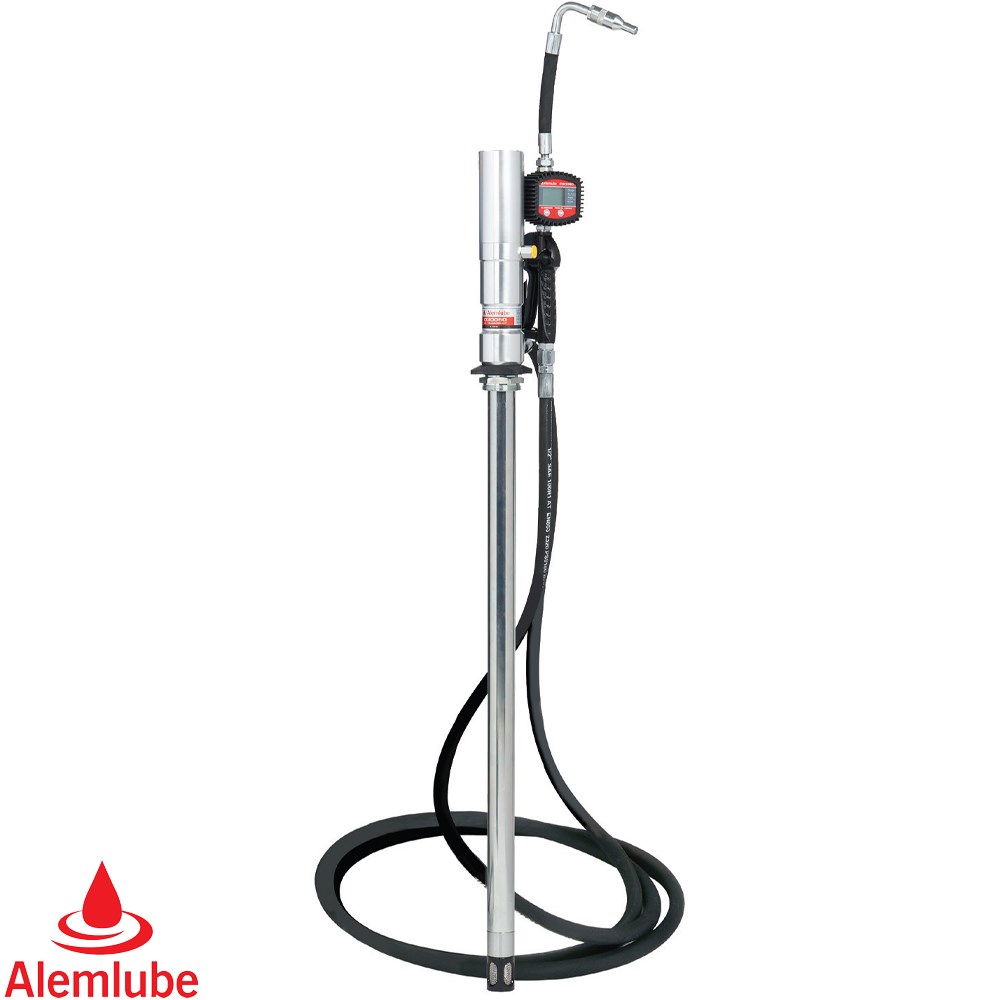

Alemlube EL Series Oil Transfer Kit with Meter
The Alemlube EL Series Drum Pump offers an efficient oil transfer and metering solution, ideal for dispensing oil up to a maximum viscosity of SAE130.
This kit provides excellent value for money, allowing for an upgrade from standard hand-operated oil drum pumps to a pneumatic solution. With a 3:1 ratio pump delivering up to 10L/min, it's suitable for use with 205L oil drums for intermittent or seasonal work. The oil meter features a 5-digit liquid crystal display, a low battery indicator, as well as Reset and Move buttons, ensuring user-friendly operation. Its smart design with fewer working parts translates to a lower cost of ownership. Powered by an easily replaceable 3V CR2 battery, the meter ensures convenience and reliability.
Manufactured with efficiency and reliability in mind, the O30050 oil transfer kit is affordably priced and supported by readily available spare parts.
Features
- Ideal for dispensing oil up to SAE130 viscosity
- Offers an upgrade from standard hand-operated pumps to pneumatic solution
- 3:1 ratio pump delivers up to 10L/min
- Suitable for use with 205L oil drums for intermittent or seasonal work

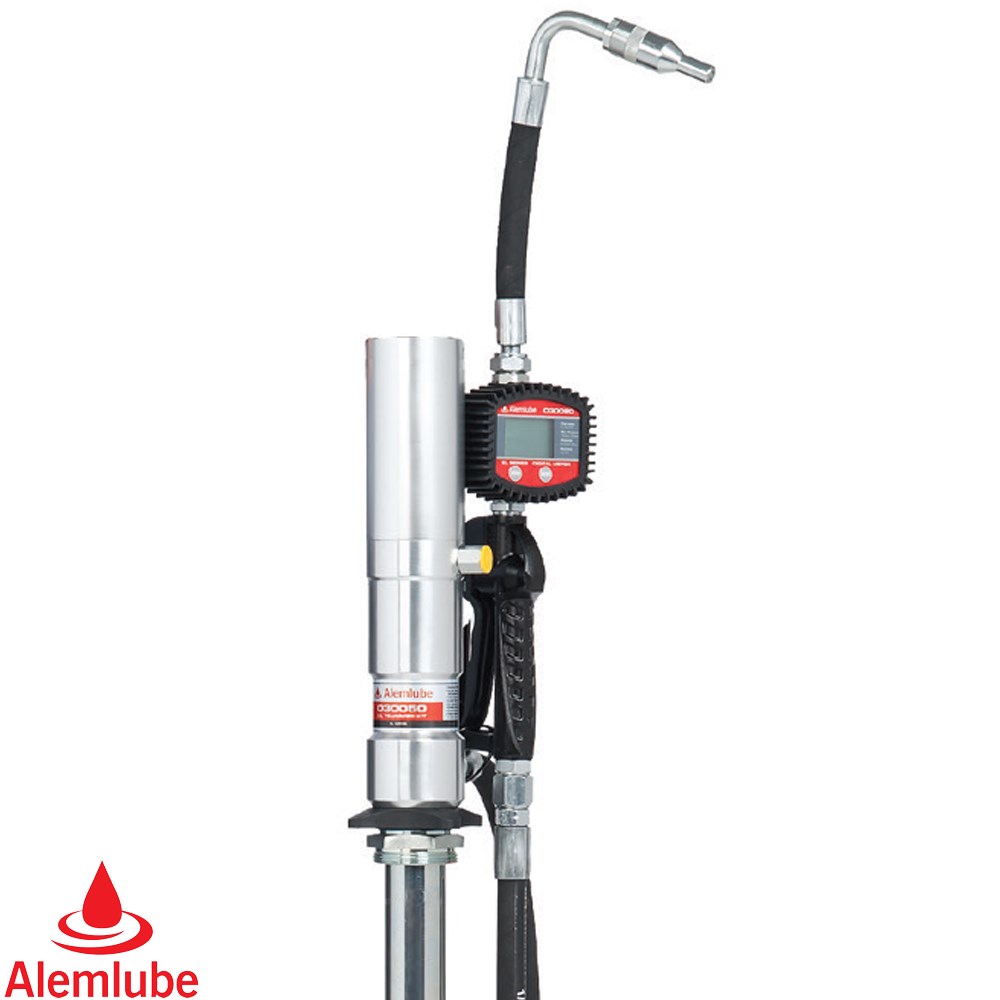

- Oil meter features 5-digit LCD display, low battery indicator, Reset, and Move buttons
- Smart design with fewer working parts for lower cost of ownership
- Powered by easily replaceable 3V CR2 battery
- Manufactured with efficiency and reliability in mind
- Supported by readily available spare parts
Specifications
- Ratio: 3:1
- Air Inlet Pressure 30-150psi (2-10bar)
- Max Fluid Pressure: 450psi (30bar)
- Air Consumption: 3.6cfm @ 150psi
- Kit Max Free Flow Rate: 10L/min
- Tube Diameter: 42mm
- Suction Tube Length: 940mm
- Air Inlet Connection: 1/4" quick plug
- Oil Delivery Connection: Male 1/2"
- Maximum Viscosity Oil Delivered: SAE 130
- Temperature Oil Delivered: -10~50°C
- Noise Level: 82 dB
