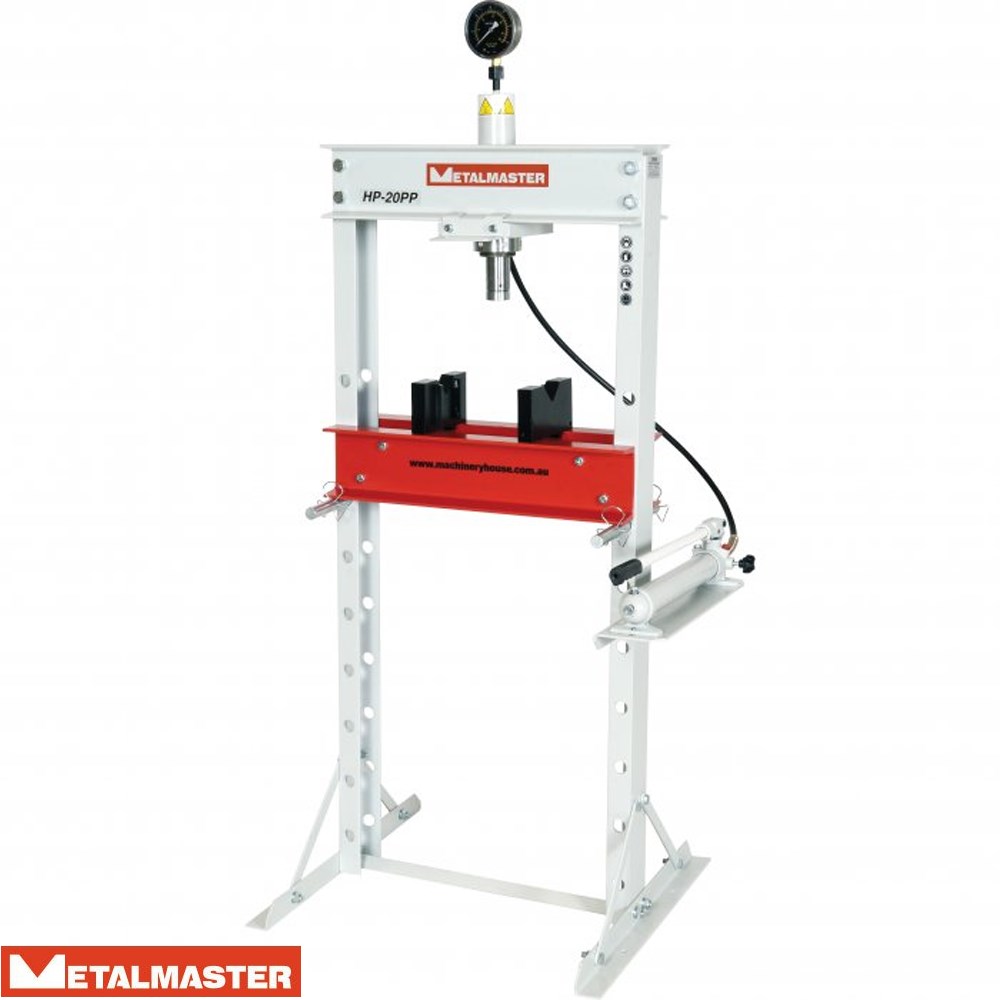

Metalmaster HP-20PP 20 Tonne Workshop Press
The Metalmaster HP-20PP Workshop Hydraulic Press is built for strength and versatility, perfect for a wide range of pressing applications. With a robust 20-tonne capacity, this press is ideal for removing and installing components like bushes, ball joints, bearings, gears, and pulleys. The adjustable sliding cylinder ram and removable hydraulic unit offer flexibility for various jobs, including offset pressing, straightening, or bending work. Constructed from high-strength C-channel steel and featuring an easy-to-read pressure gauge, this press is designed for heavy-duty use in both professional workshops and serious home garages. Complete with durable bending plates, it ensures reliability and precision in every task.
Features
- 20-tonne hydraulic capacity
- Adjustable sliding head for offset jobs
- Removable ram and pump for versatile use
- Heavy-duty C-channel steel construction
- Includes pressure gauge and bending plates
- Ideal for pressing bushes, bearings, gears, and more
Specifications
- MODEL: HP-20PP
- Pressing Capacity: 20 Tonne
- Hydraulic Ram Operation: Manual Hand Lever
- Sliding Ram (left-right): Yes

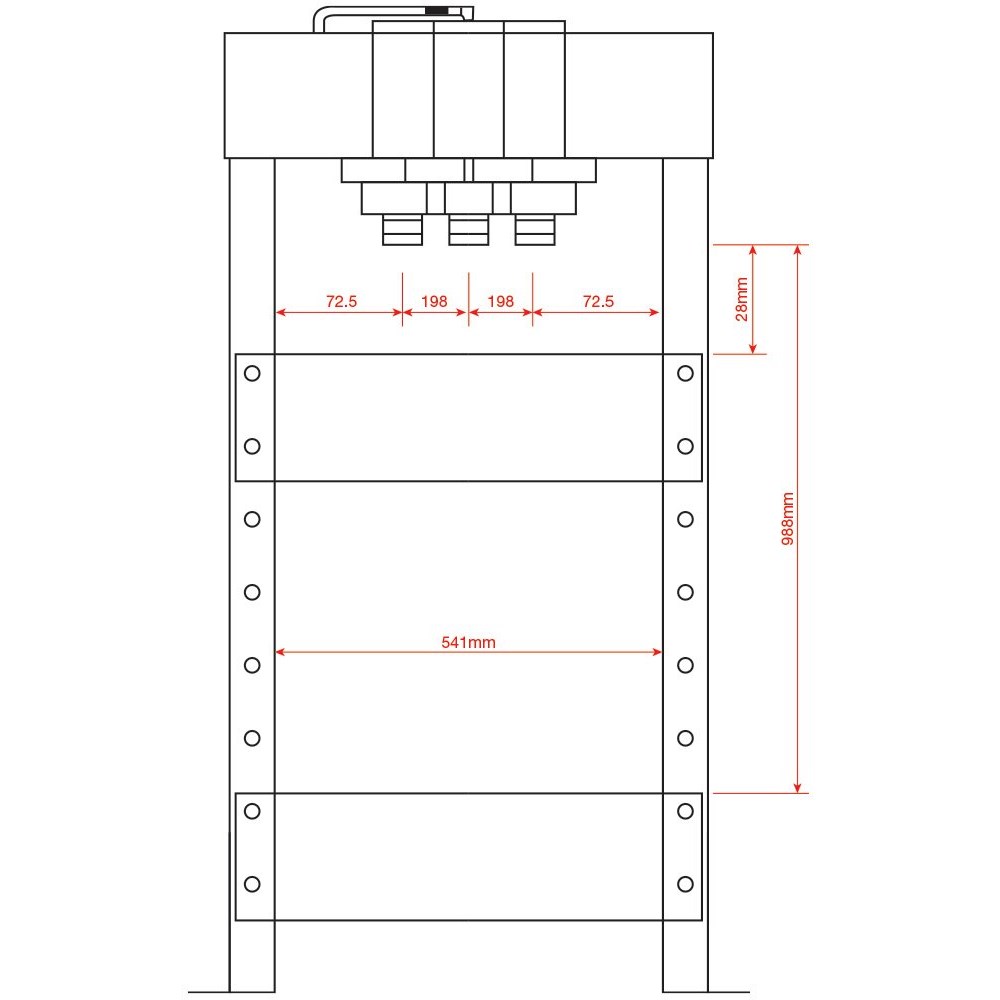

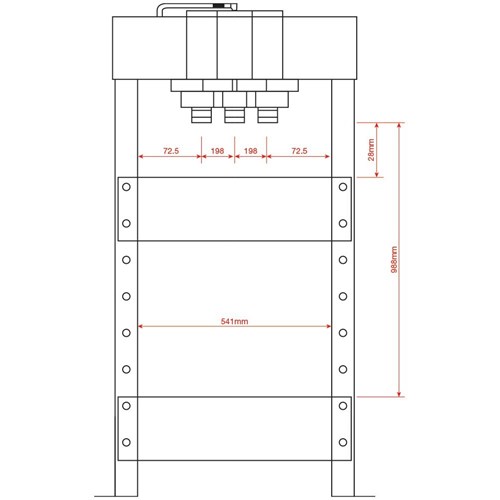

- Width Between Front Posts: 541mm
- Width Between Side Posts: 85mm
- Table Top Opening - (Front to Back): 105mm
- Ram To Table (Max.): 980mm
- Cylinder Stroke: 185mm
- Ram Diameter: Ø48mm
- Piston Diameter: Ø60mm
- Floor Space: 1100 W x 800 D x 1780 H mm
- Nett Weight: 114.5kg
