PILLOW BLOCK HOUSING 205
CAST IRON SPHERICAL BEARING 2 BOLT
Product Code: P205
From
P.O.A.
prices may differ on variants
EACH inc GST
In Stock
Low Stock
Contact Us
Please See Attributes
Increase value
Decrease value
Pillow Block Housing 2 Bolt
205 Series Self Aligning Ball Bearings

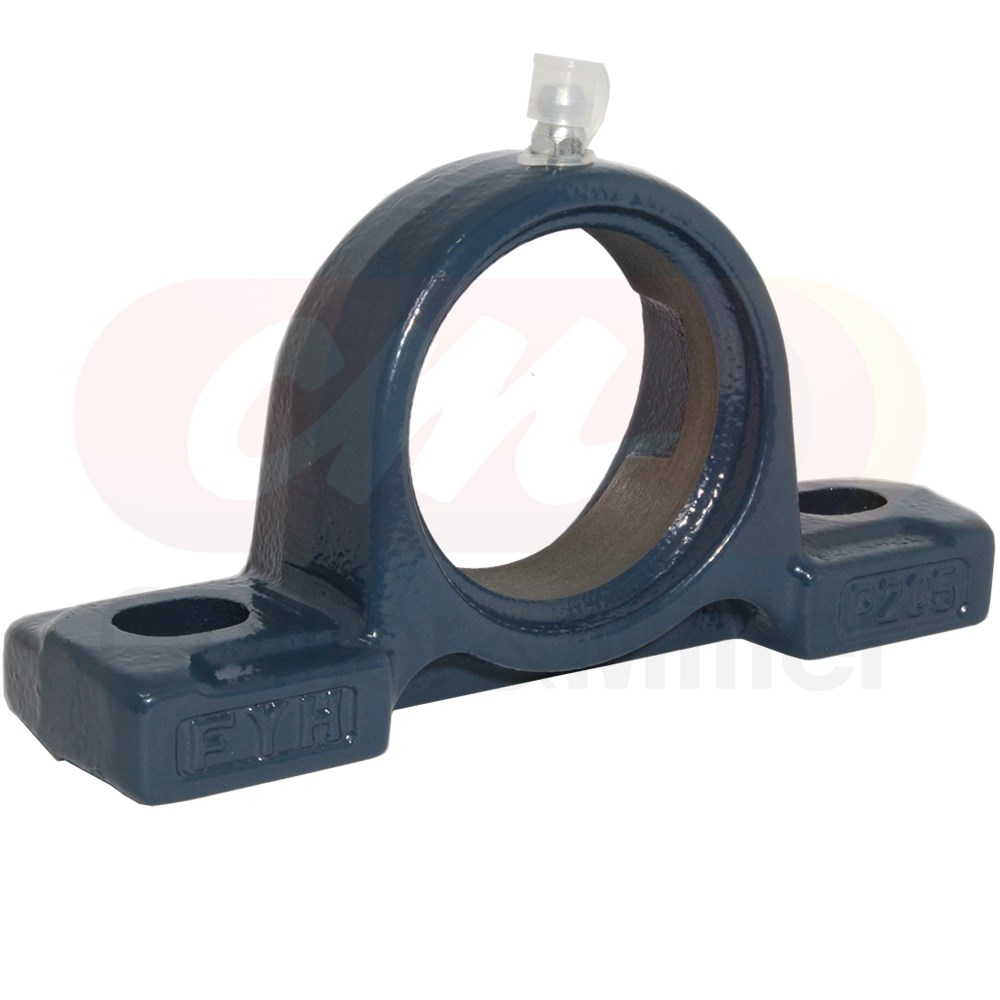

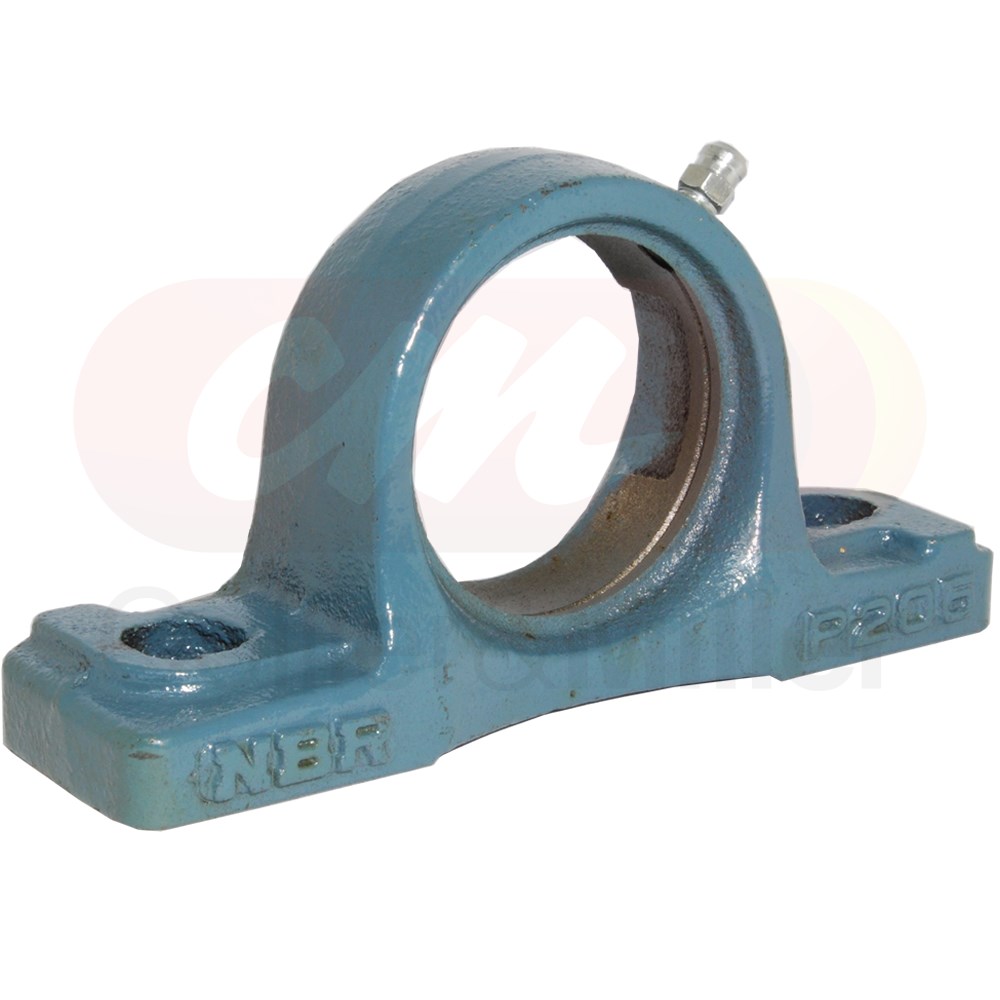

Pillow-block style 2 bolt cast iron bearing housing to accept normal duty 205 series self aligning (spherical outer) ball bearings. Housing available in either economy NBR or premium FYH brand.
| Brand |
H |
H1 |
H2 |
j |
L |
L1 |
N |
N1 |
| FYH Japan |
36.5mm |
16mm |
70mm |
105mm |
140mm |
38mm |
13mm |
18mm |
| NBR China |
36.5mm |
14.5mm |
70mm |
103mm |
130mm |
|
13mm |
19mm |
| Feature |
NBR |
FYH |
| Housing material |
Cast iron |
Gray cast iron |
| Mount finish |
Cast |
Milled |
| Grease groove |
Yes |
No |
| Suggested monting bolt |
M11 |
M10 |
Attention
- FYH bearing housing do not have a grease groove.
- Effective greasing for FYH housings require bearing grease hole to aligned with grease port.
- NBR bearing housing are supplied as the economy brand subject to availability.
