P200 Pillow Block

PILLOW BLOCK BEARING HOUSING

206 CAST IRON 2 BOLT PILLOW OD:62MM SPHERICAL BEARING

Product Code: P206
From
  P.O.A. prices may differ on variants
EACH inc GST
Afterpay Logo
Buy now. Pay later. Interest-free.
Afterpay Logo
Available for orders between $0.04-$2,000.00
Afterpay Logo
Unavailable for this order
Afterpay Logo
4 payments of
In Stock Low Stock Contact Us Please See Attributes
Increase value Decrease value

  • Detail

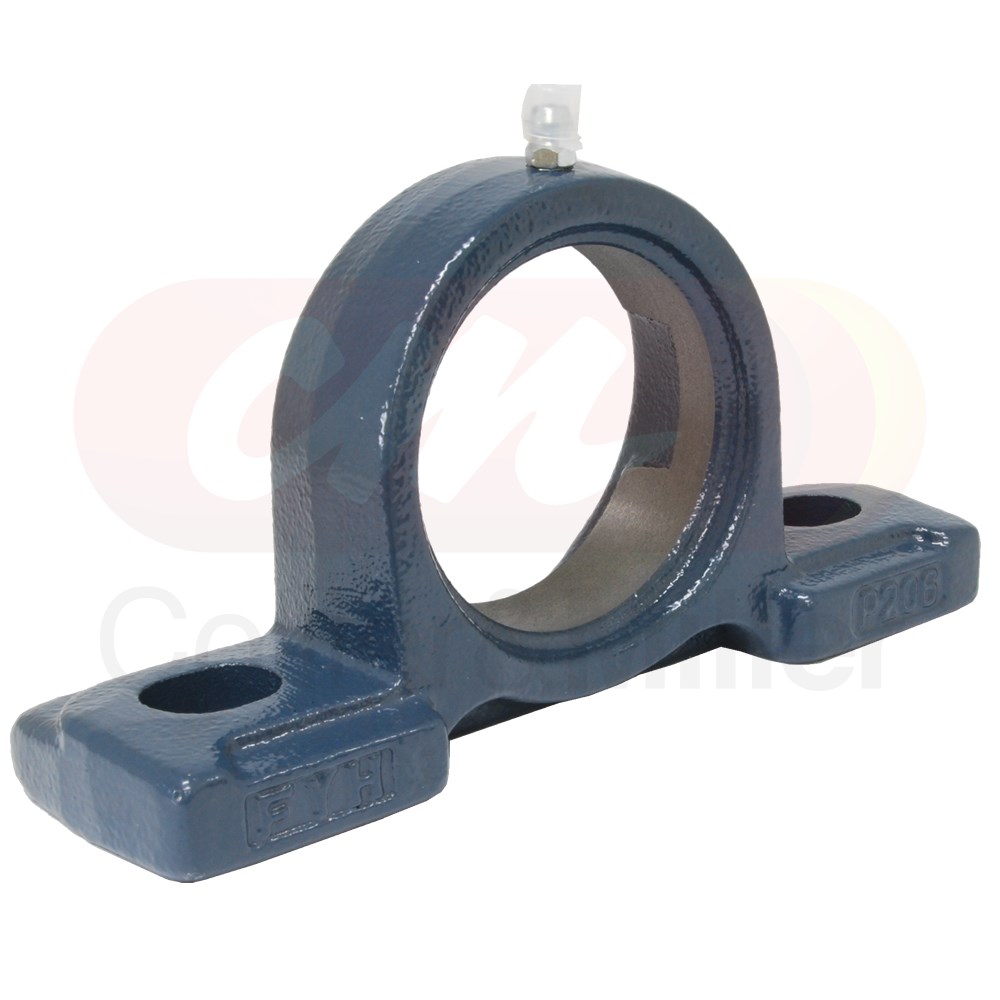

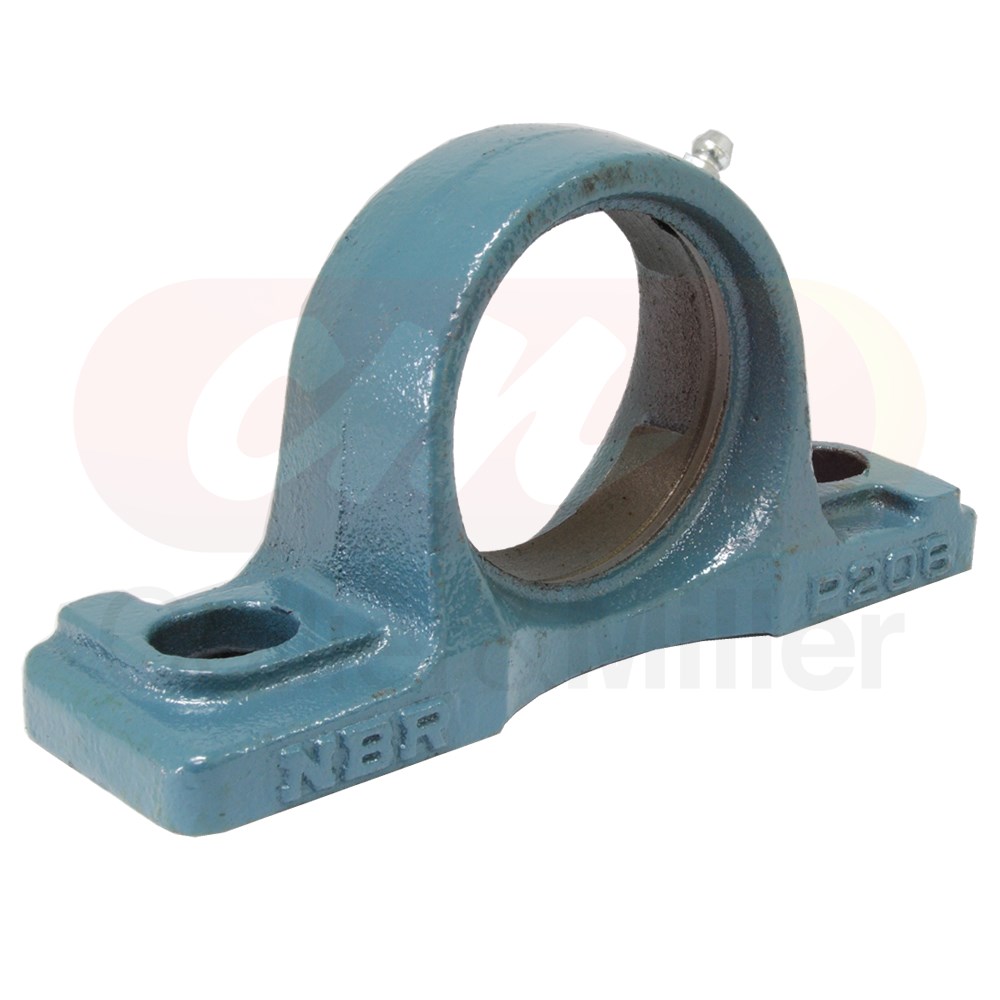

Pillow Block Housing 2 Bolt

206 Series Self Aligning Ball Bearings


Pillow-block style 2 bolt cast iron bearing housing to accept normal duty 206 series self aligning (spherical outer) ball bearings. Housing available in either economy NBR or premium FYH brand.


Brand H H1 H2 J L L1 N N1
FYH Japan 42.9mm 15mm 84mm 121mm 165mm 53mm 17mm 21mm
NBR China 42.9mm 17mm 83mm 121mm 165mm 17mm 21mm

Feature NBR FYH
Housing material Cast iron Gray cast iron
Mount finish Cast Milled
Grease groove Yes No
Suggested monting bolt M14  M14

Attention
  • FYH bearing housing do not have a grease groove.
  • Effective greasing for FYH housings require bearing grease hole to aligned with grease port.
  • NBR bearing housing are supplied as the economy brand subject to availability.
