208 CAST IRON 2 BOLT PILLOW OD:80MM SPHERICAL BEARING

Product Code: P208

From

Buy now. Pay later. Interest-free.

Available for orders between $0.04-$2,000.00

Unavailable for this order

4 payments of

Detail

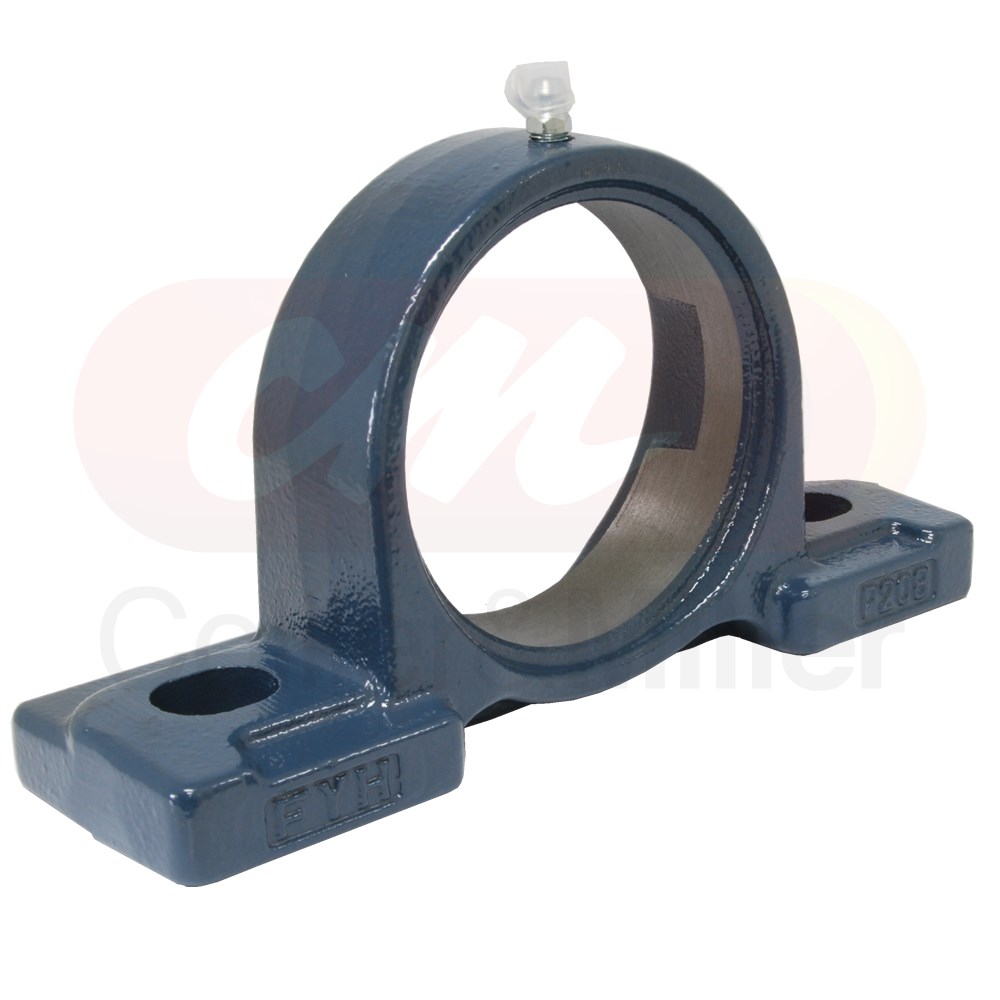

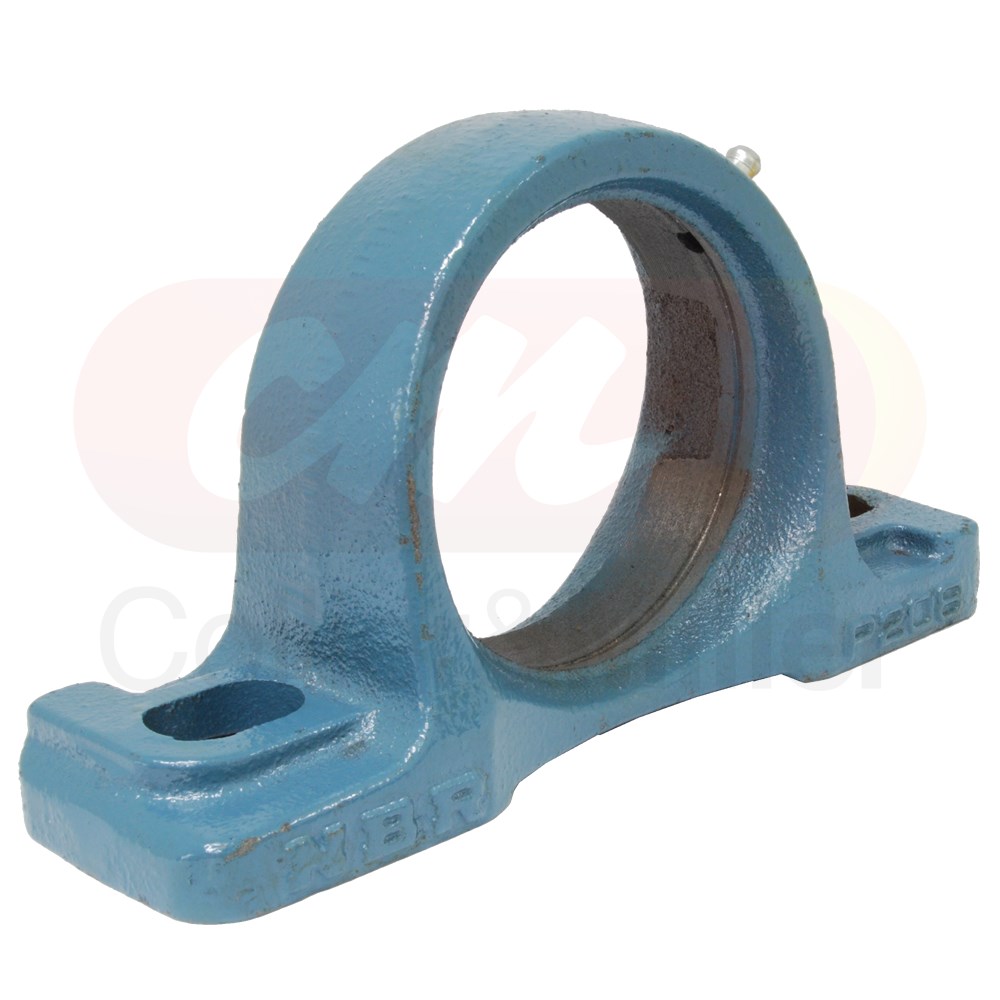

Pillow Block Housing 2 Bolt

208 Series Self Aligning Ball Bearings

Pillow-block style 2 bolt cast iron bearing housing to accept normal duty 208 series self aligning (spherical outer) ball bearings. Housing available in either economy NBR or premium FYH brand.

Brand	H	H1	H2	J	L	L1	N	N1
FYH Japan	49.2mm	17mm	98mm	137mm	184mm	57mm	17mm	21mm
NBR China	49.2mm	18mm	98mm	137mm	184mm		17mm	21mm

Feature	NBR	FYH
Housing material	Cast iron	Gray cast iron
Mount finish	Cast	Milled
Grease groove	Yes	No
Suggested monting bolt	M14	M14

Attention

FYH bearing housing do not have a grease groove.
Effective greasing for FYH housings require bearing grease hole to aligned with grease port.
NBR bearing housing are supplied as the economy brand subject to availability.
