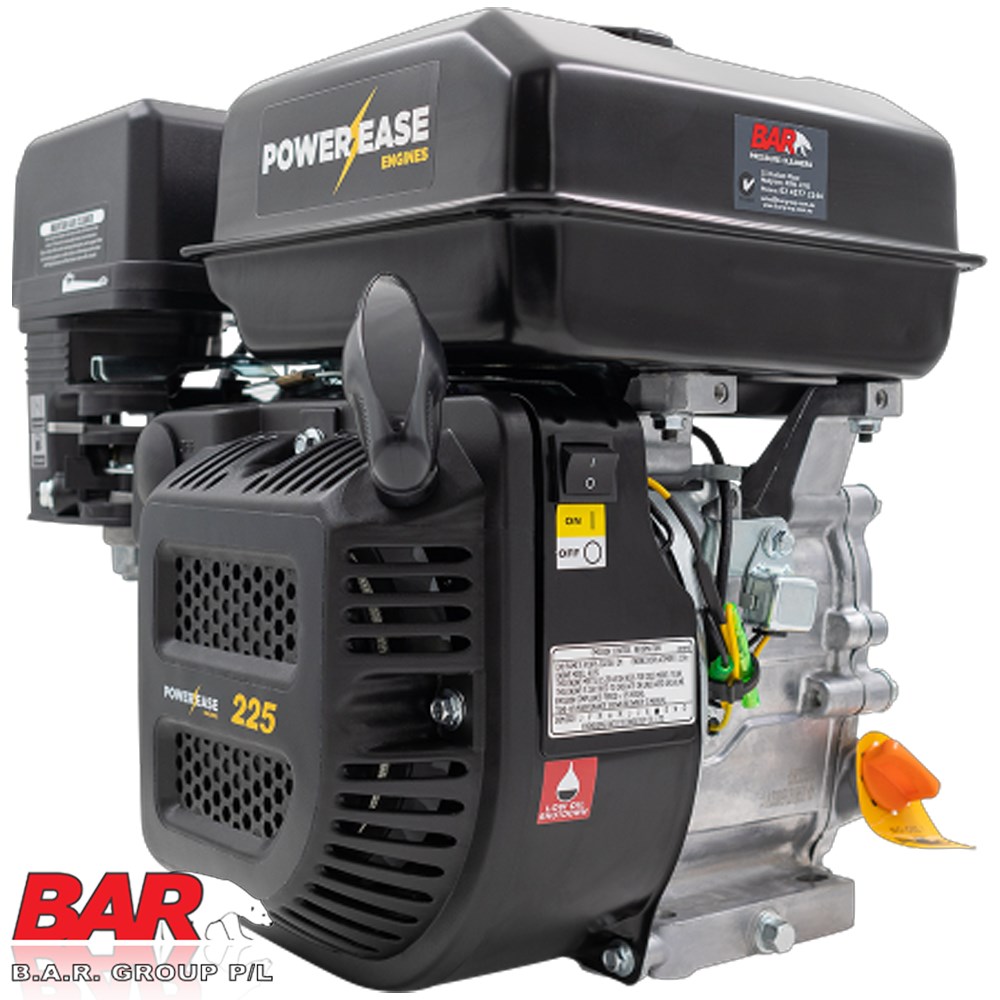

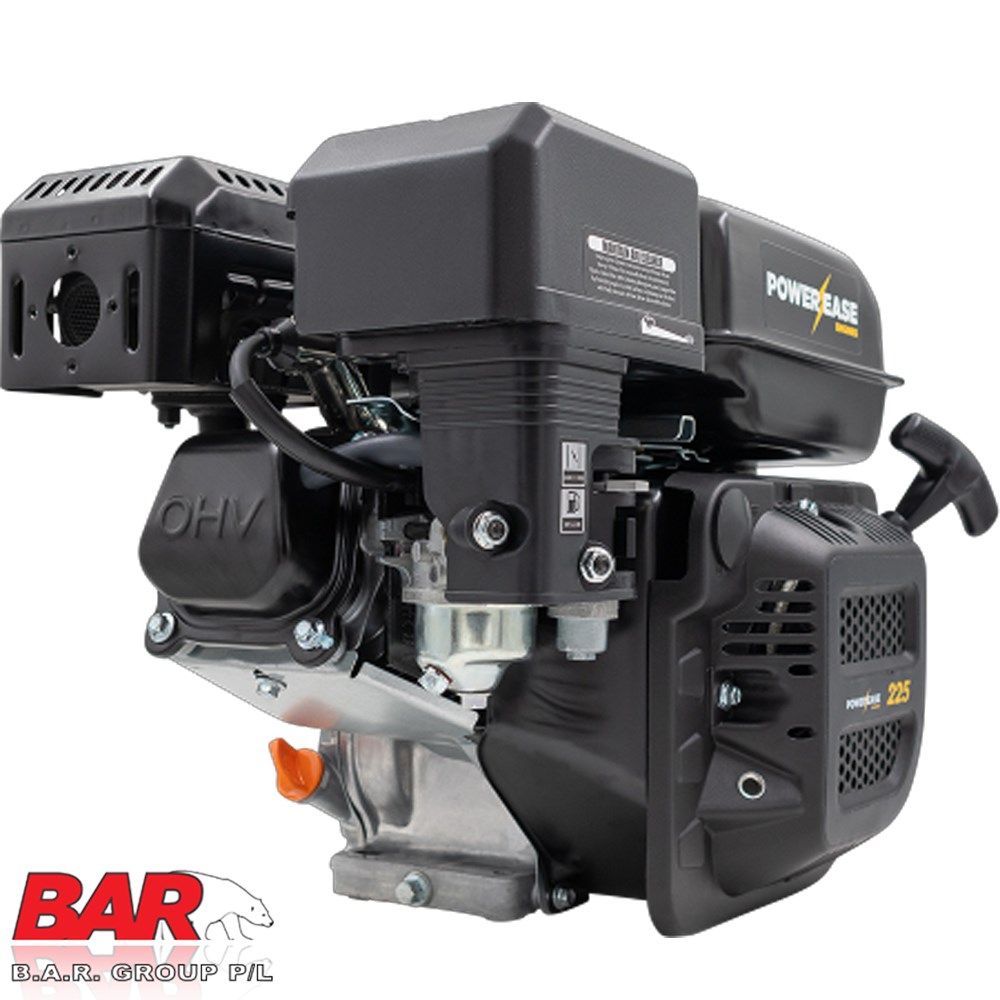

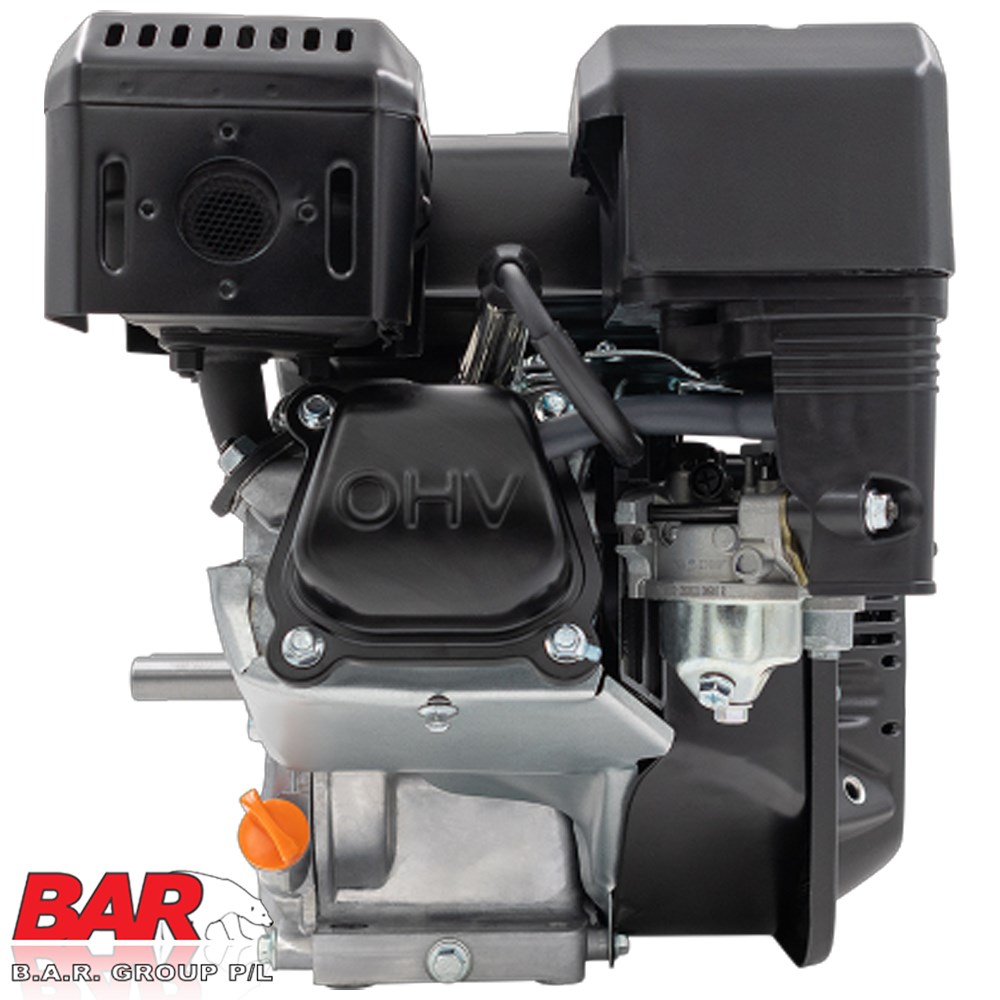

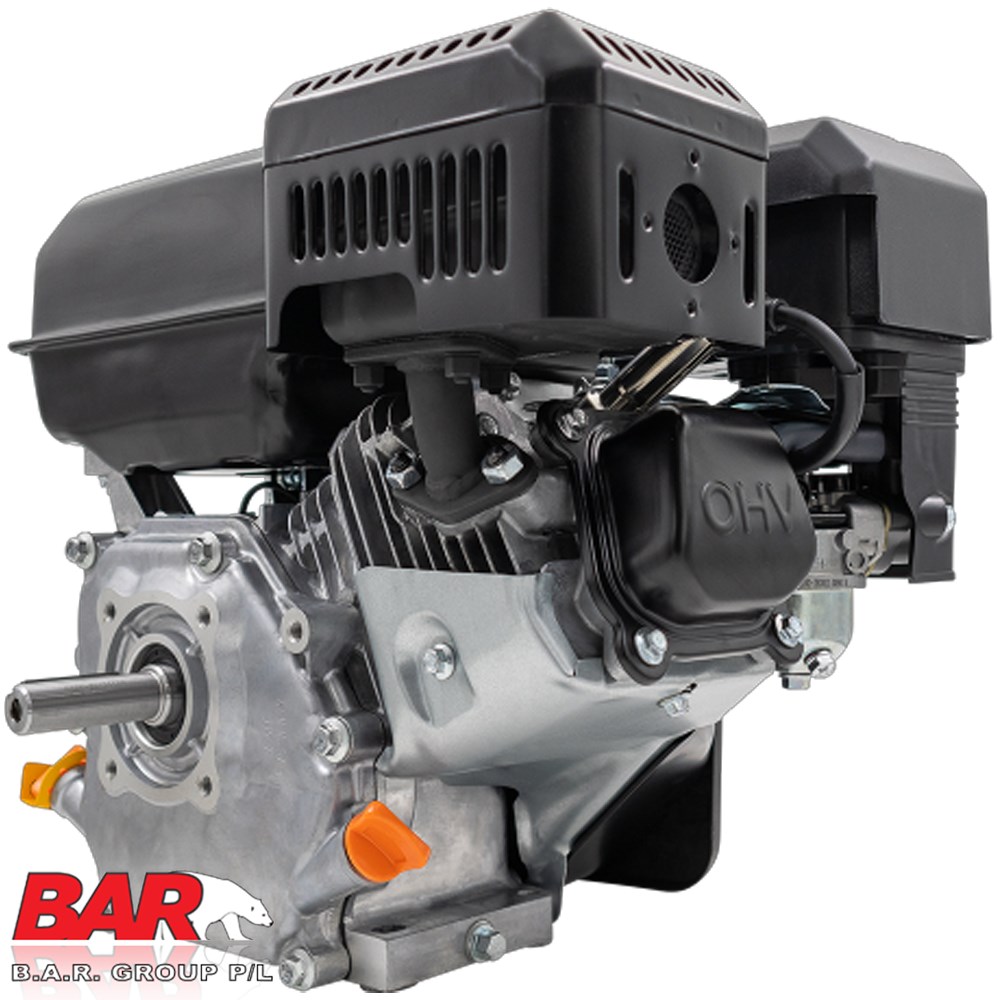

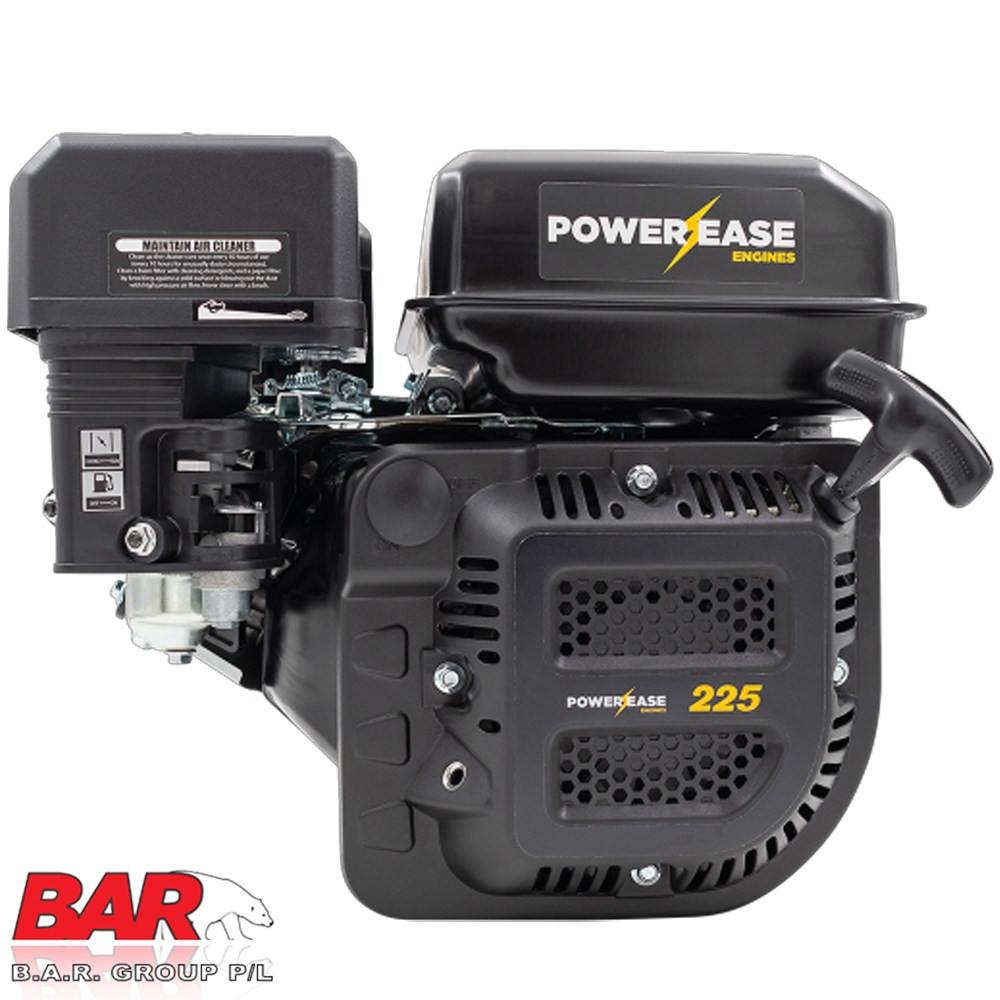

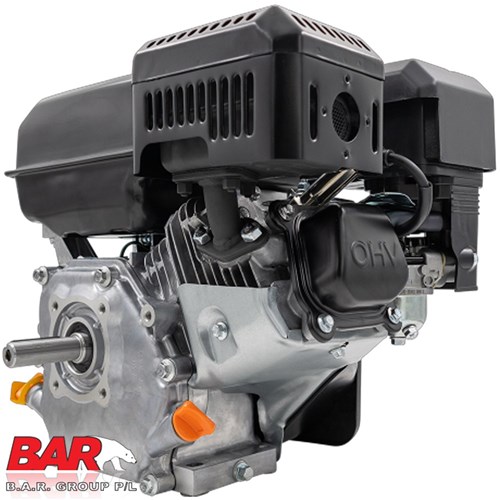

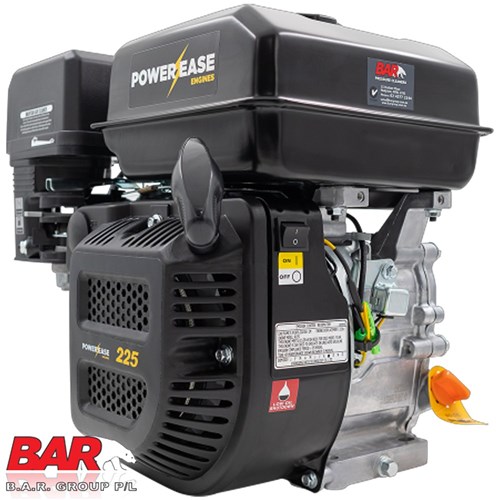

POWEREASE PETROL ENGINE 7.0HP RECOIL START 225CC 3600RPM 4 STROKE 3/4" KEYED SHAFT

RECOIL START 225CC 3600RPM 4 STROKE 3/4" KEYED SHAFT

Product Code: PE70

Detail
Downloads

Powerease™ stationary engines have earned a reputation for trustworthy performance and reliability. Fitted to a wide range of BE Power Equipment, Powerease engines offer excellent performance and reliability for an economical price.

Features

Replacement engine for equipment that accepts a keyed, 3/4” horizontal shaft x 1/4" key way.
Air cooled, 4-stroke, Over Head Valve (OHV) design enables higher compression ratio to obtain greater power output.
Uses common SAE 10W30 motor oil to splash lubricate the components in the crankcase.
Automatic low-oil sensor will shut down the engine if the oil level drops to dangerous levels
Fuel recommended to use is regular unleaded that is 86 octane or more. It is best to use fuel with no ethanol, but ethanol blends of up to 10% is acceptable.

Specifications

TITLE	SPECS
Model	POWEREASE 225
Cylinders	Single
Engine Type	AIR-COOLED 4-STROKE OHV
Displacement	223CC
Starting System	Recoil
Ignition System	Transistorised Magneto
Compression Ration	8.4:1
Fuel Tank Capacity	3.6 Liters
Fuel	Unleaded 86 Octane or Higher
Lubrication System	Forced Splash
Oil capacity	600CC
Low Oil Shutdown	Yes
Shaft Size	3/4" Straight Keyed
Shaft Rotation	Counter Clockwise
Torque	9.1 LB-FT (12.3 NM) @ 2,500 RPM
Power Output	7.5Hp @ 3600RPM
Air Cleaner	Dual Element
Valve Clearance	0.06" INTAKE, 0.08" Exhaust
