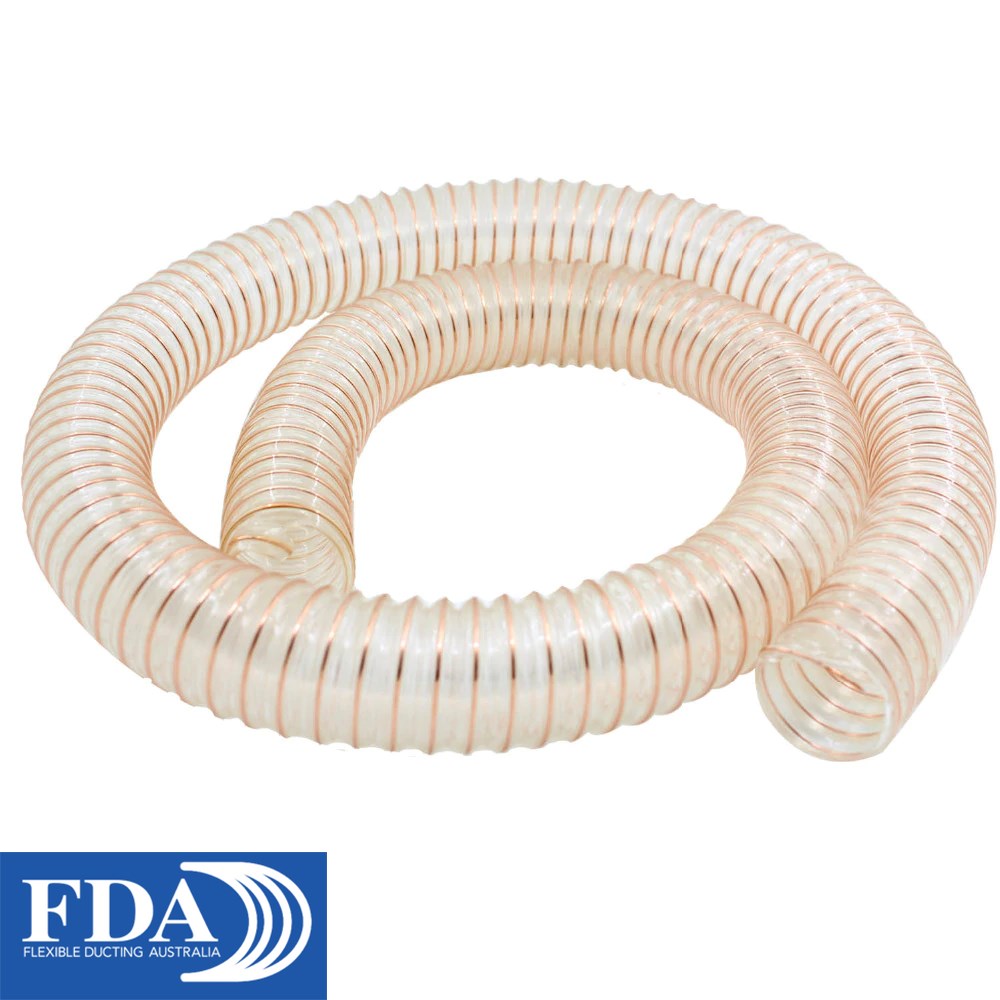

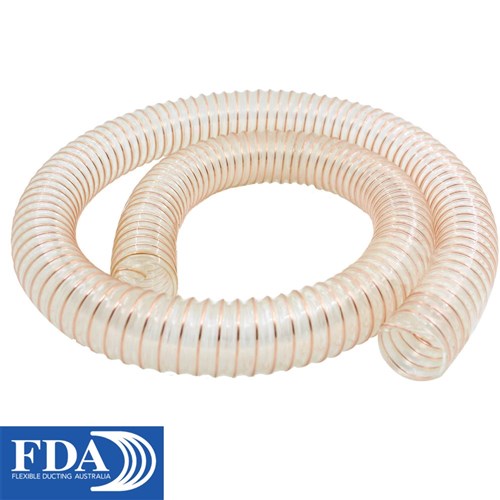

SpiralTube PUR
Translucent Suction & Discharge Ducting
PUR spiral tube transluscent ducting hose with a copper coated steel reinforcement wire. Manufactured from polyeurethane this ducting is highly resistant to abrasion while remaining flexible. This ducting is constructed to ensure uniform wall deformation through bends to improve flow rates. Bend uniformity and quality construction are hallmarks of the Spiratube range.
We sell this product into the agricultural industry for seed and fertiliser applications. It performs much better that similar PVC products. The manufacturer states it is suitable for suction and discharge of abrasive powders, fumes, shavings and vapours.
Applications
- John Deere® Cotton Picker Air Duct
- Groupers discharge chutes
Features
- ID = 152mm (6")
- Wall thickness = .55mm
- Bend radius = 125mm
- Temp range -40 > +90 degree C.
- Smooth inside tube
- Very light and flexible
- High resistance to abrasion
- Weather resistant

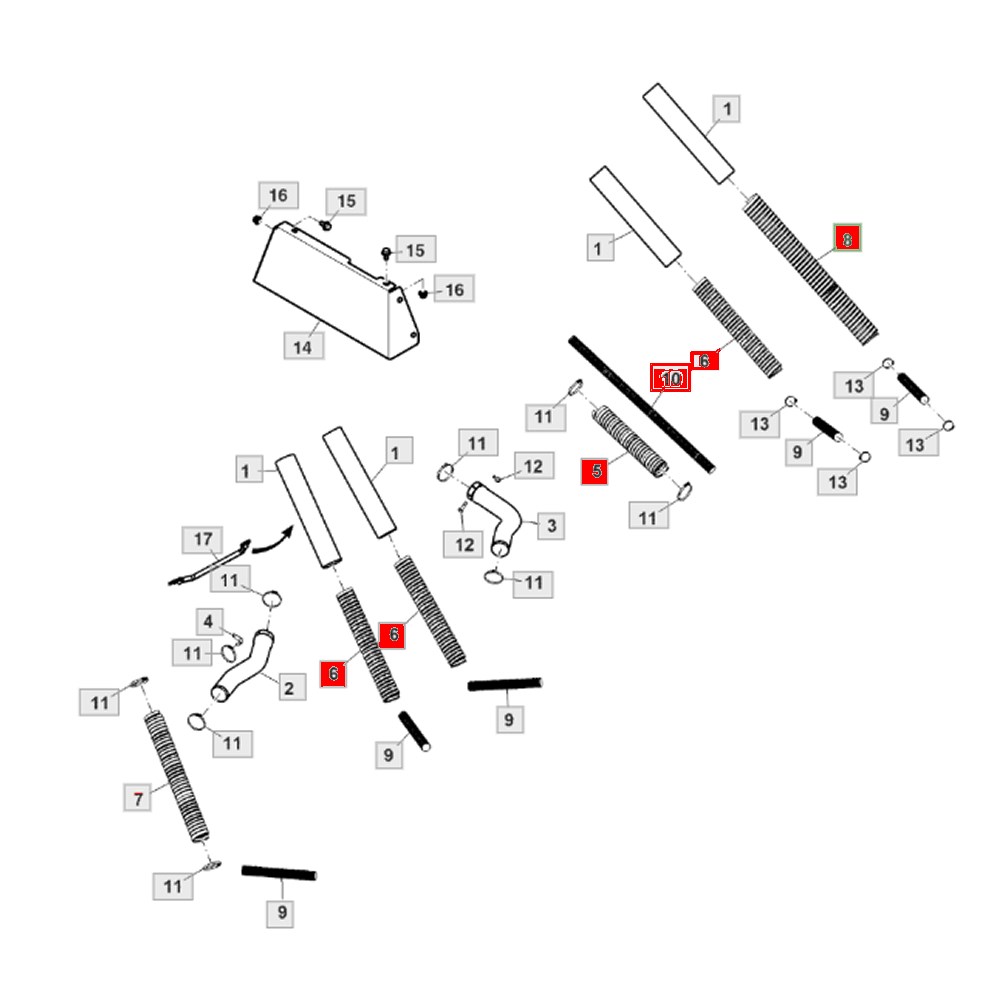

John Deere Part Numbers
| Series |
Models |
Lengths |
| John Deere® 7760 |
7760 |
- 1 @ CTL = 787.4mm, 3 @ CTL 990.6mm, 1 @ CTL 1143mm, 1 @ 1346.2mm
|
| John Deere® CP Series |
CP690 |
- 1 @ CTL-787.4mm, 2 @ CTL=990.6mm, 1 @ CTL 1143mm, 1 @ 1346.2mm
|
|
CP770 |
- 2 @ CTL = 788mm, 2 @ CTL 991mm, 2 @ CTL 1143mm
|
