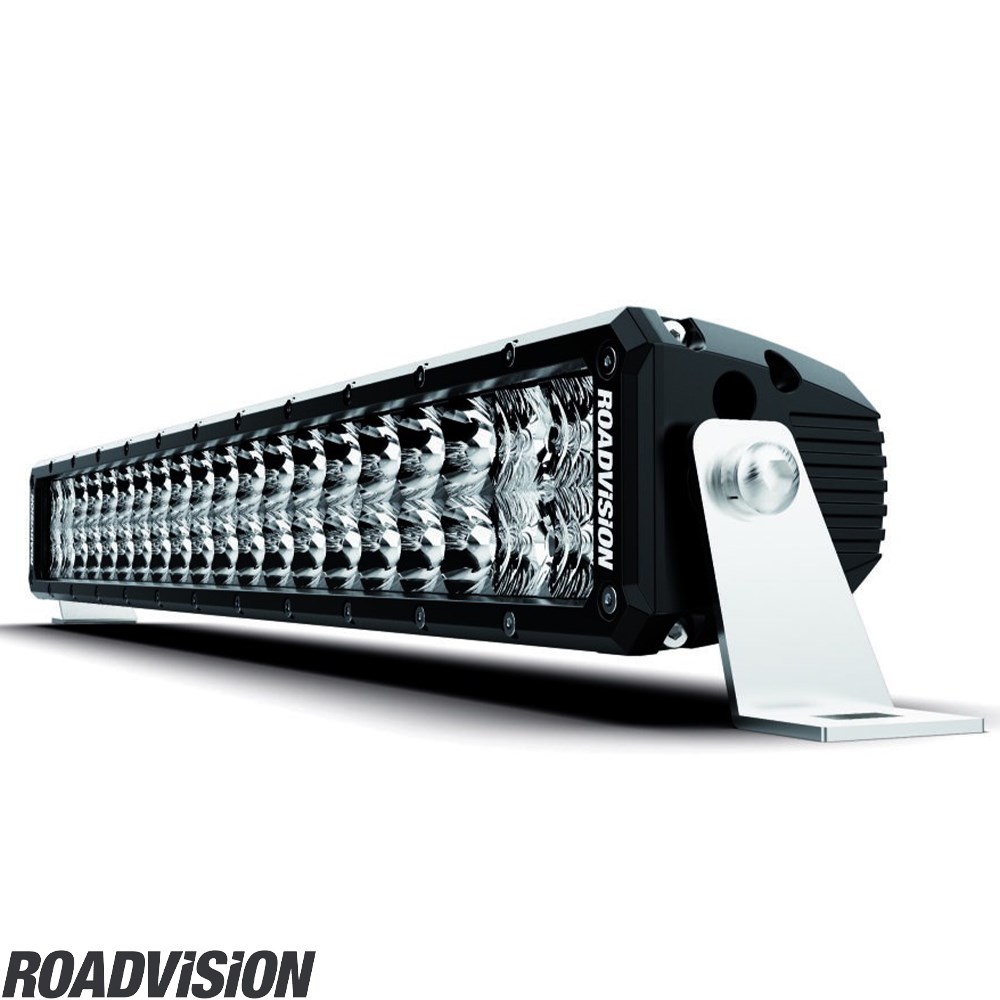

Roadvision Essential DRE Series LED Light Bars – Double Row
The Roadvision Essentials Series LED bar lights are the perfect choice for those seeking value without compromising on quality. Crafted from lightweight, tough die-cast aluminium, these lights feature IP-rated housing and utilize high-performing 5W Osram LEDs. They support a multi-volt 11-32V DC input and boast low current draw, thermal management technology, and a polycarbonate lens for durability in the toughest conditions.

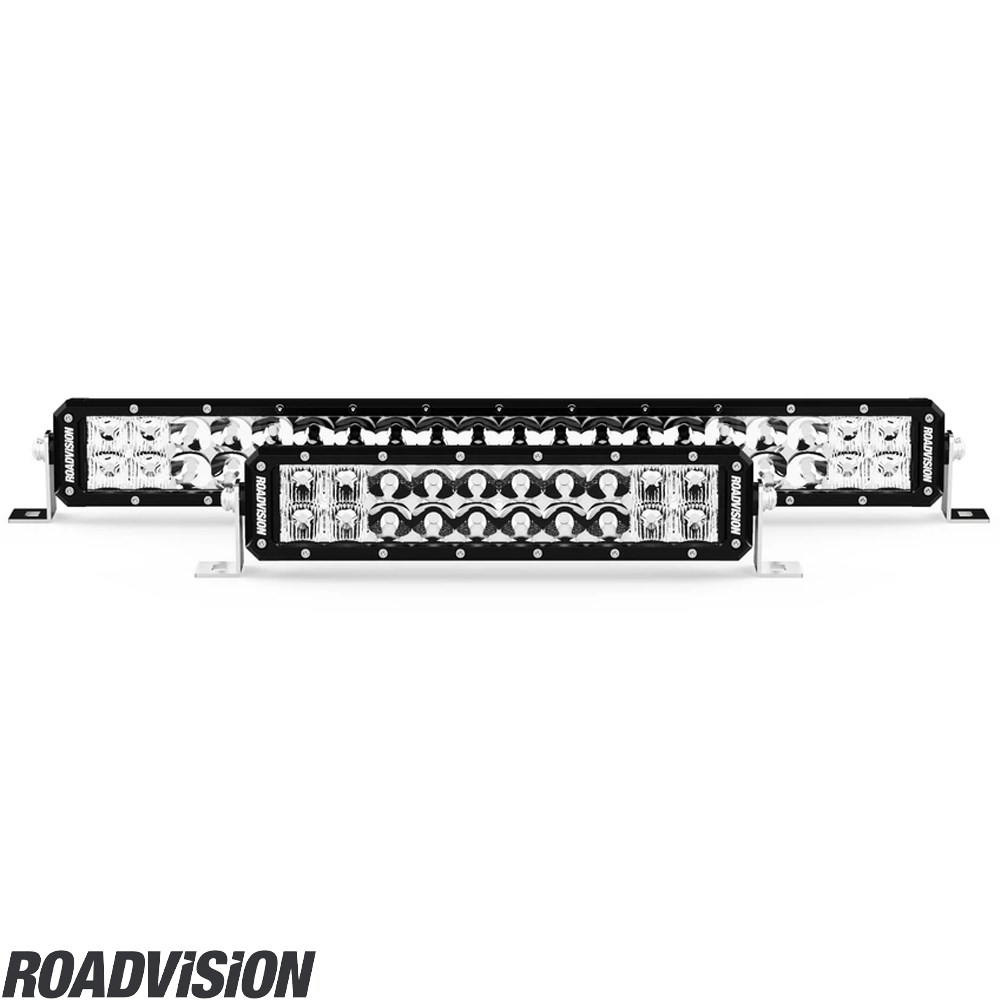

With a combination of spot and driving optics, these dual-row LED bar lights produce a versatile beam pattern with long-distance range. Available in both 12” and 22” lengths, they offer an excellent entry-level solution while delivering great output, durability, and an ideal look for your rig.
Installation is straightforward with a simple 2-wire setup with a Deutsch plug, and low-profile slide and end mounts for a sleek appearance. They also feature over/under voltage protection, reverse polarity protection, and EMI/EMC radio interference approval.
Features
- Lightweight, tough die-cast aluminium construction
- IP-rated housing for durability
- High-performing 5W Osram LEDs
- Multi-volt 11-32V DC input with low current draw
- Thermal management technology
- Polycarbonate lens for tough conditions
- Combination of spot and driving optics for versatile beam pattern
- Available in 12” and 22” lengths
- Simple 2-wire installation with Deutsch plug
- Low-profile slide and end mounts for sleek appearance
- Over/under voltage protection
- Reverse polarity protection
- EMI/EMC radio interference approved
Specifications
- Beam Pattern: Combination
- Maximum Lumens: 11500lm
- Maximum Lux @ 10m: 4819lx
- Maximum Beam Distance @ 0.5lx: 982m
- Maximum Beam Distance @ 1LX: 694m
- Input Voltage: 11-32VDC
- Maximum Watts: 200W
- Number of LEDs: 40 x 5W Osram
- Current Draw @ 13.8V: 8.3~14.5 Amps
- Lens Construction: Polycarbonate
- Housing Construction: Die-Cast Aluminium
- Wiring: 2 Pin Deutsch Plug
- Dimensions LxHxW: 614 x 80 x 65mm
