1500MM FITTED WITH 1-3/8X6 Q/R YOKE BOTH ENDS

Product Code: S164137

Detail

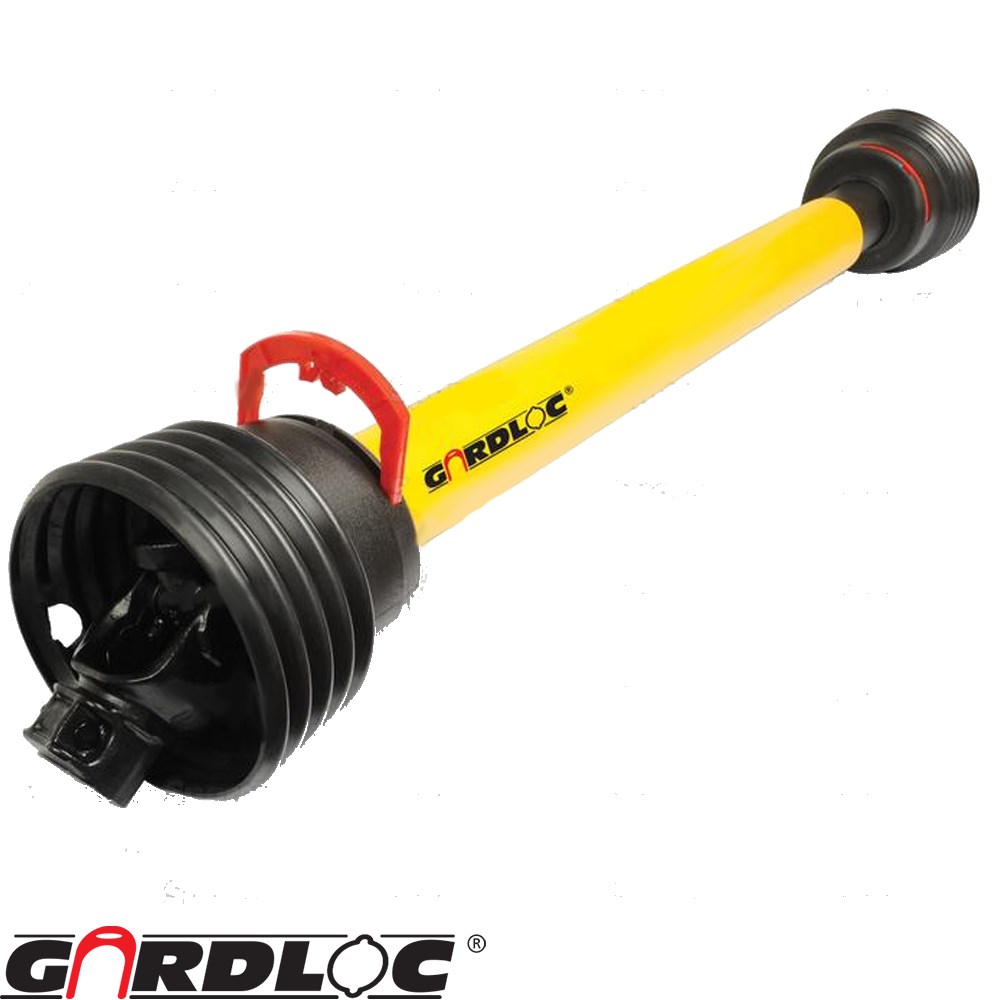

GARDLOC PTO Shaft - (Lz) Length: 1500mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R.

Specifications

Brand: GARDLOC
HP Rating @ 540RPM: 35
HP Rating Range @ 540RPM: up to 54
Implement End: 1 3/8'' x 6 Spline Q.R.
Italian Series: AB4/A4
Kilowatt Power Rating @ 540RPM: 26
Lz Length (mm): 1500
PTO Series: AB4/A4
Torque (Nm): 460
Torque: 335 - 1240Nm
Total Closed Length (mm): 1714
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Triangle
Universal Joint Dimensions: 27 x 74.5mm
