BONDIOLI & PAVESI GEARBOX 2200 RATIO 1:1.53 INCREASE 241KW 1-3/4 X 20 SPLINE SHAFTS

RATIO 1:1.53 INCREASE 241KW 1-3/4 X 20 SPLINE SHAFTS

Product Code: S2200066020

Detail
Downloads

Genuine Bondioli & Pavesi

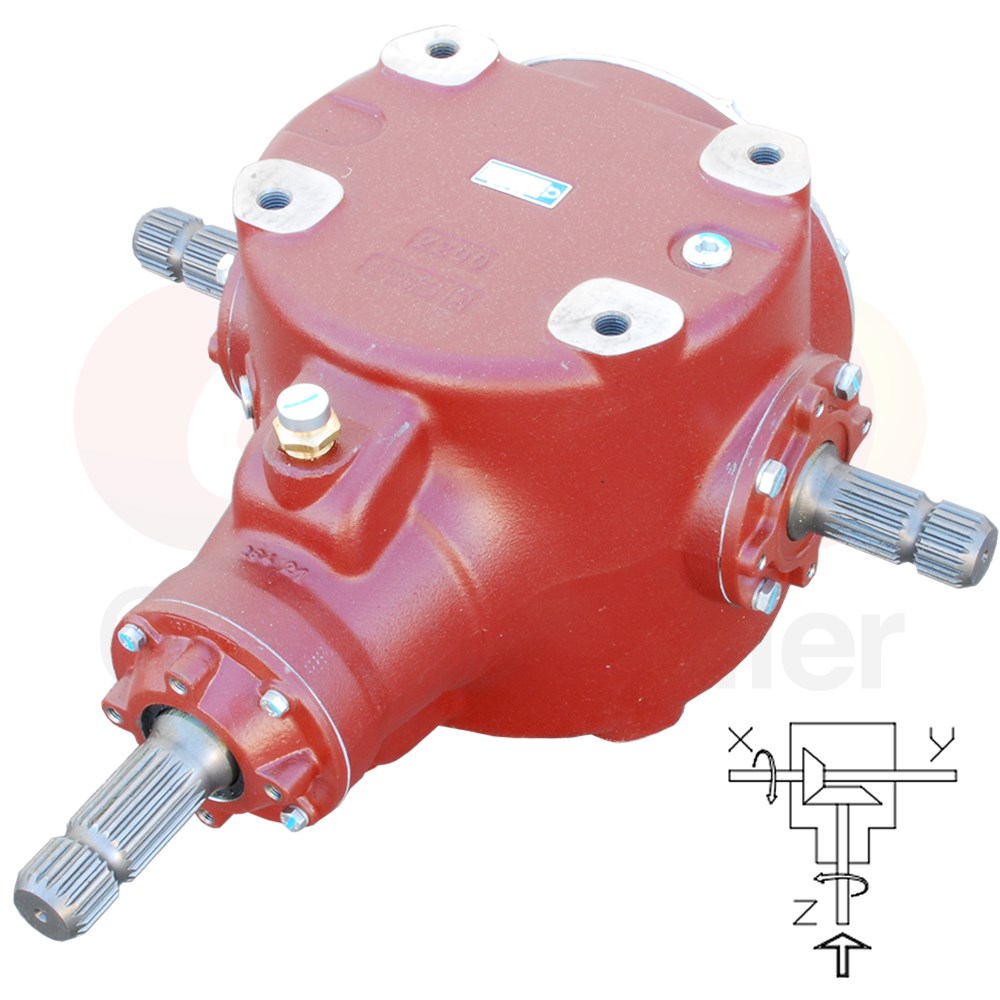

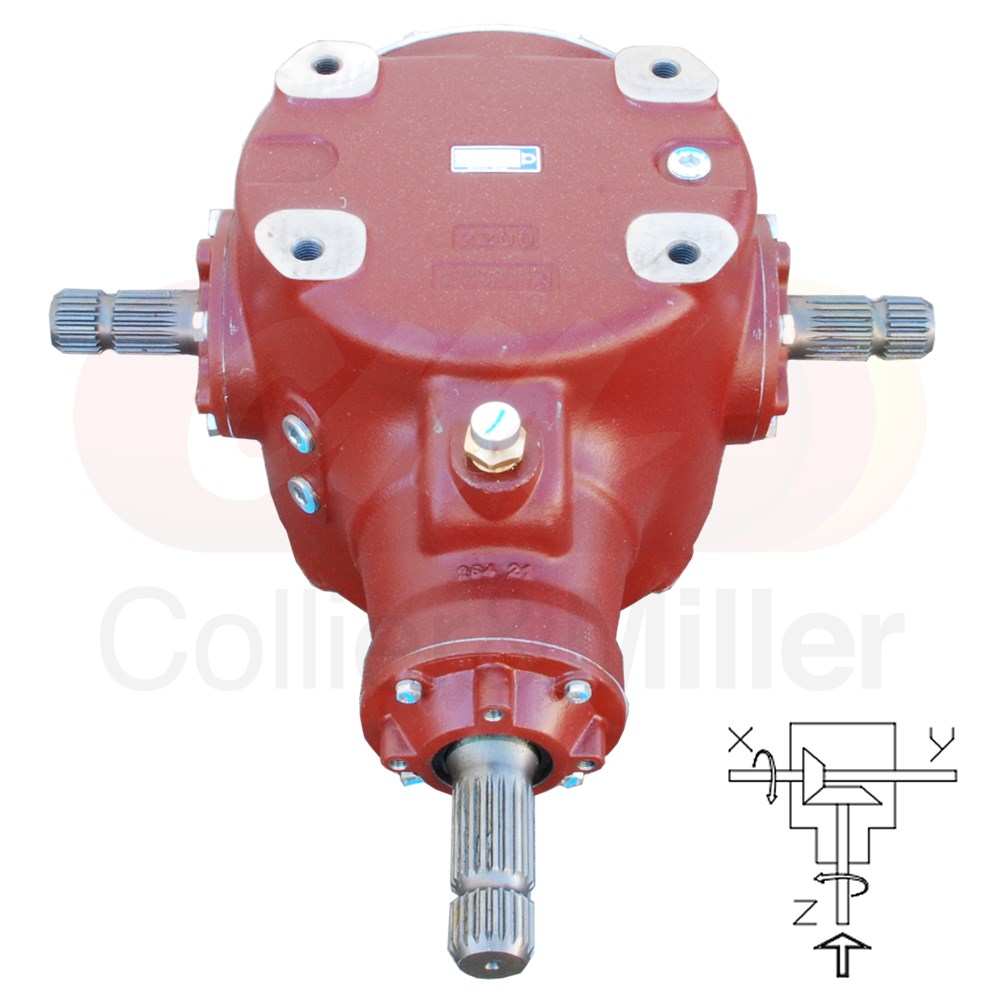

2200 Series Speed Multiplier Gearbox

Bondioli & Pavesi 2200 Series T box with integral overrun clutch. This gearbox features 1-3/4" x 20 Spline input and output shafts and is supplied with an internal over-run clutch for use in applications where rotating mass can free-wheel once power is disengaged. Ideal for heavy duty mulcher applications.

Part Numbers

S2200-066-020

Specifications	Rating	Rating @ 540RPM	Rating @ 1000RPM
Ratio	1:1.53 Speed Multiplier
Configuration	Input = Anti-Clockwise Output=Clockwise
Rated Input Speed	Max 1000 RPM
Rated Power		205 KW (275Hp)	244Kw (328Hp)
Rated Torque		3578Nm	2305Nm
Shaft Type	1-3/4" Z20 Spline Input & Output

Input = Anti-Clockwise
Output = Clockwise
Gearbox is supplied with no oil
You must fill gearbox with recommended type and capacity before operation
