S32 agricultural conveyor chain is a popular conveyor chain used in the agricultural industry. We supply this product as an economical chain suitable for a wide variety of applications. The primary brand supplied is AMEC, however this may be substituted by an equivalent brand depending on availability. If brand is critical please contact us to confirm the brand currently in stock.

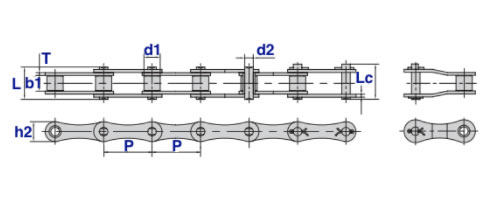

Chain Dimensions
|
|
| Specification |
Ref |
Dimension |
| Chain Size |
|
S32 |
| Pitch |
P |
1.150" |
| Roller Diameter |
d1 |
0.450" |
| Width between plates |
b1 |
0.625" |
| Pin Diameter |
d2 |
0.1751" |
| Pin Length |
L |
1.051" |
| Connector Pin Length |
Lc |
1.133" |
| Inner Plate Depth |
h2 |
0.520" |
| Plate Thickness |
T |
0.070" |
