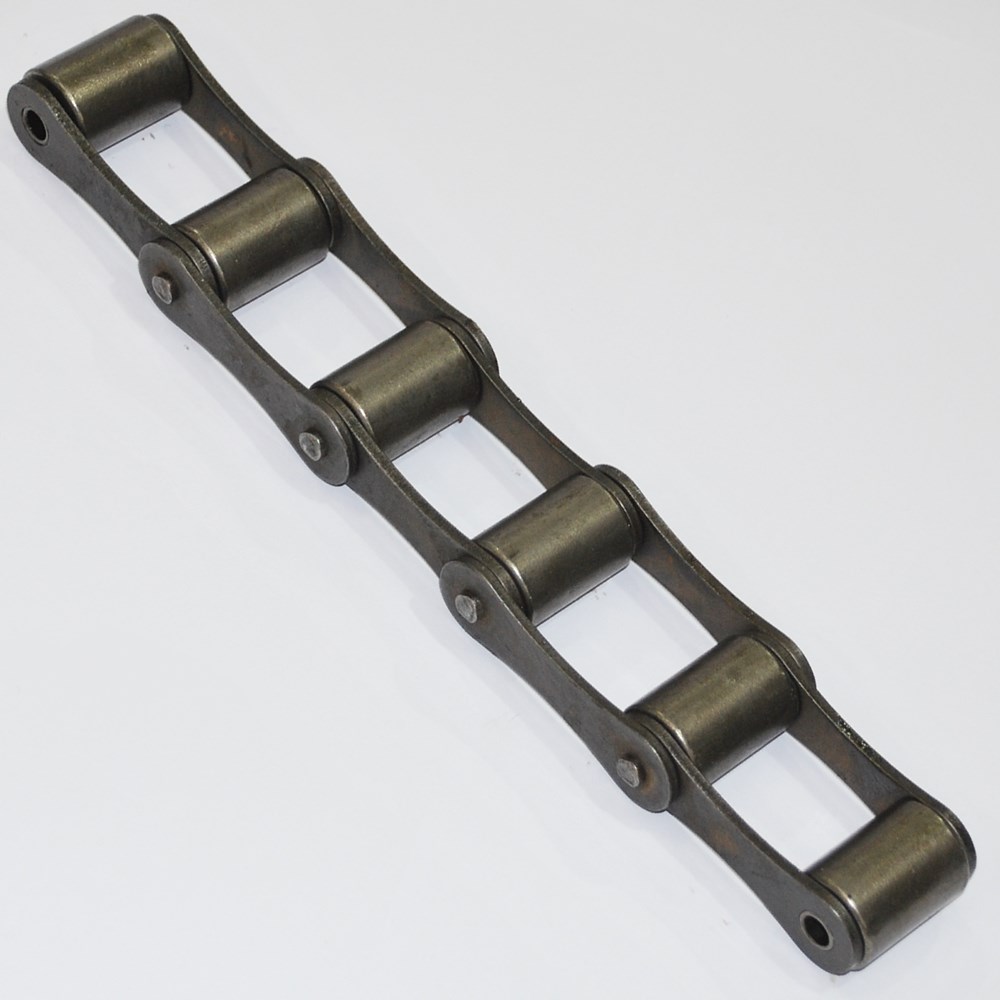

S62 agricultural roller chain is manufactured to DIN 8189 standard and is a popular conveyor chain used in the agricultural industry. We supply this product as an economical chain suitable for a wide variety of applications. The primary brand supplied is AMEC, however this may be substituted by an equivalent brand depending on availability. If brand is critical please contact us to confirm the brand currently in stock.

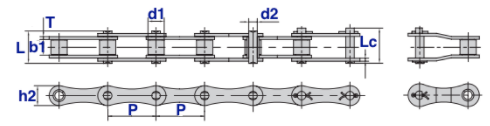

| Specification |
Ref |
Dimension |
| Pitch |
P |
1.650" |
| Roller Diameter |
d1 |
0.750" |
| Widith Between Inner Plates |
b1 |
1.031 |
| Pin Diameter |
d2 |
0.225" |
| Pin Length |
L |
1.587" |
| Connecting Link Pin Length |
Lc |
1.692" |
| Inner Plate Depth |
h2 |
0.682" |
| Plate Thickness |
T |
0.098" |
