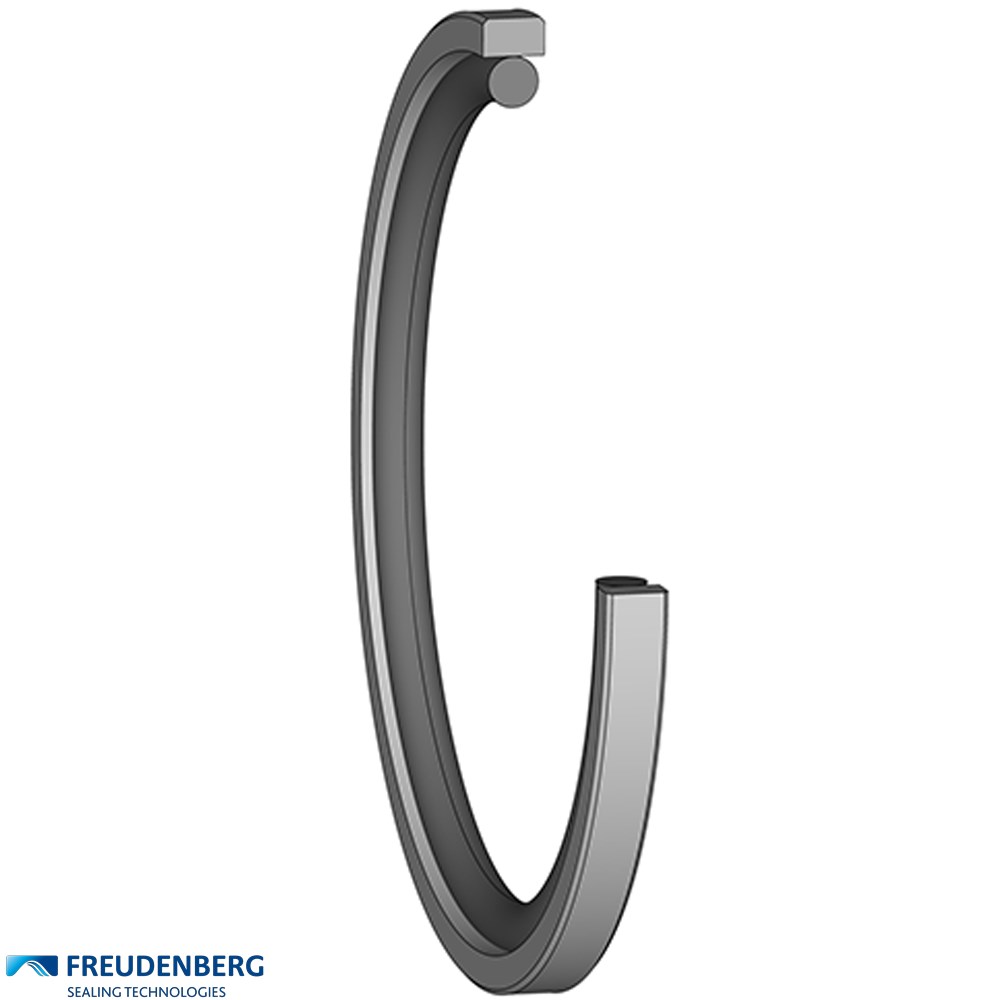

Double Acting PFTE Piston Glide Seal
The Double Acting PTFE Piston Glide Seal is a durable, double-acting seal designed for one-piece pistons, providing reliable performance in high-speed and stick-slip applications.
Featuring a filled PTFE seal face and nitrile rubber O-ring energizer, it offers excellent adaptability with varied pressure capabilities. This versatile seal is compatible with mineral-based oils, water/glycol, and water emulsions, making it ideal for demanding hydraulic systems.
While not suited for applications requiring strict position holding, it excels in smooth, rapid movement and provides effective sealing for a range of fluid types.
Features
- Double-acting glide seal for one-piece pistons

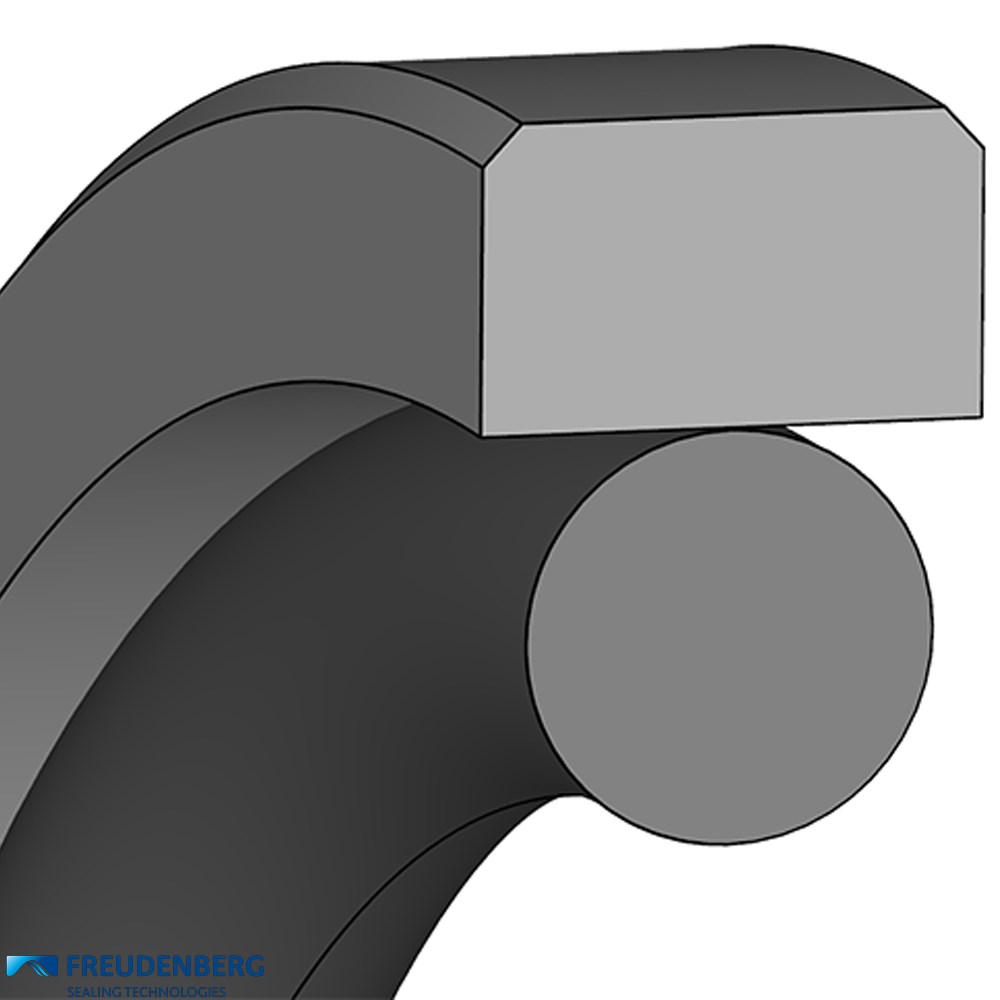

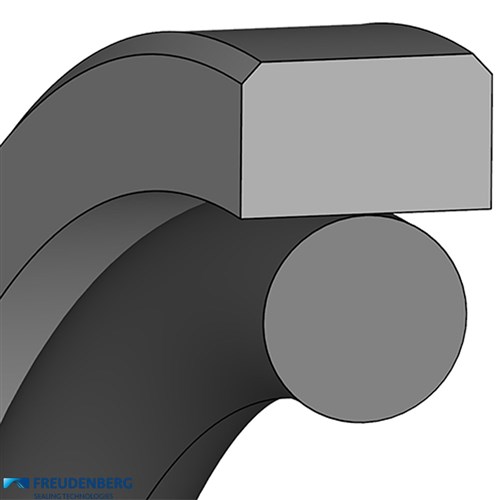

- Filled PTFE seal face with nitrile rubber O-ring energizer
- Suitable for high-speed and stick-slip movement applications
- Compatible with mineral-based oils, water/glycol, and water emulsions
- Dual-face materials provide adaptable pressure capabilities

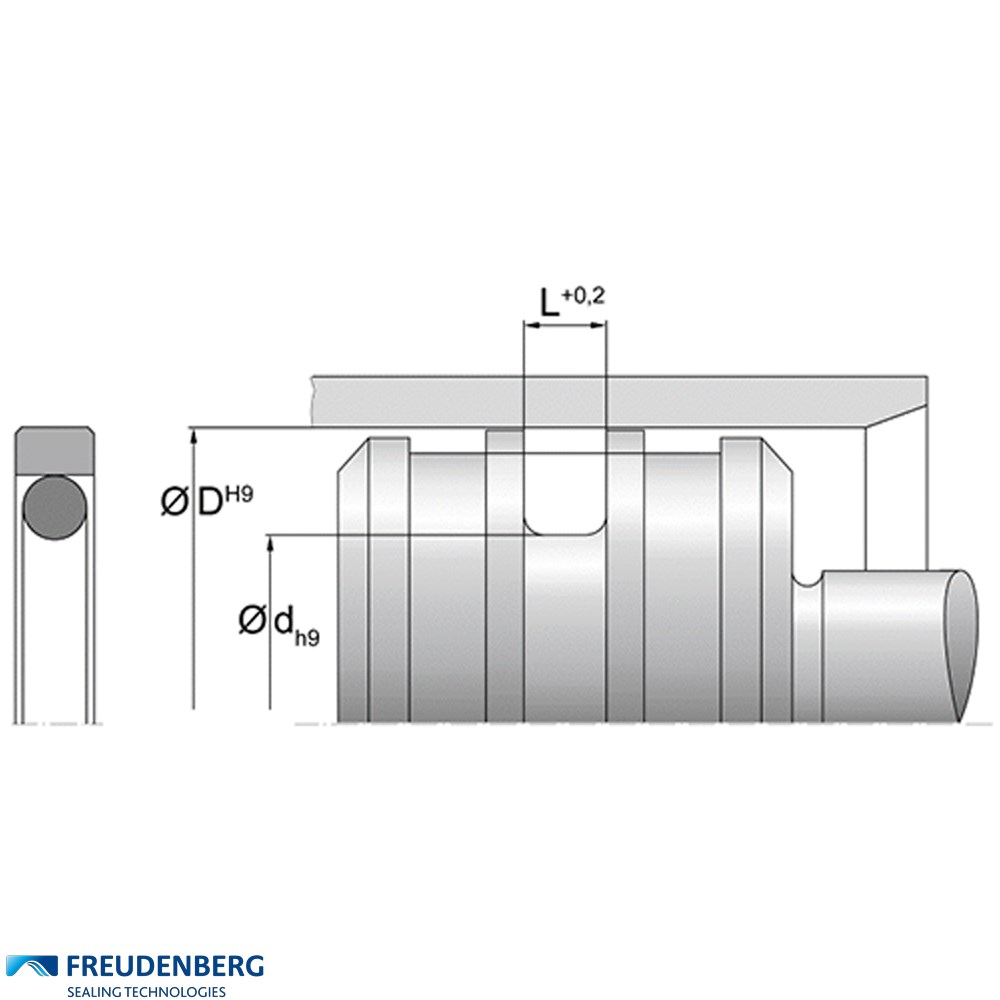

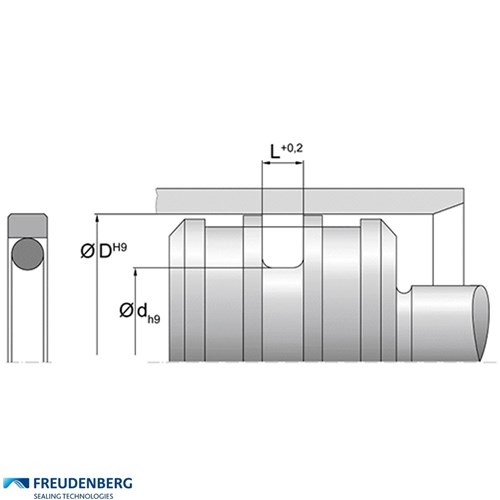

Specifications
- ID: 2.068
- OD: 2.500
- LI: 0.165
- Max Pressure: 6000 PSI
- Mex Temp: 100 C
