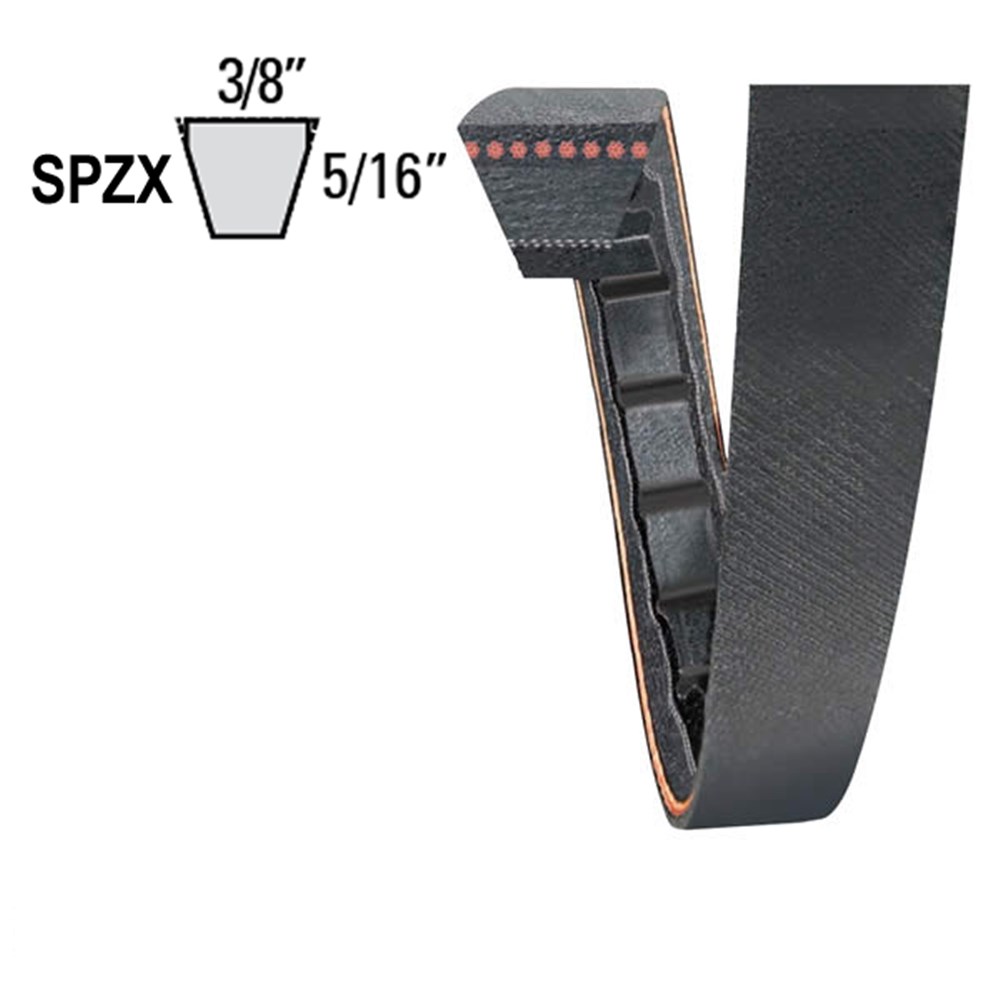

Compact Timken Power-Wedge® or
PIX-X'tra® high power raw edge wedge belts. The standard in inch sized (3VX, 5VX) or metric sized (SPZX, SPAX & SPBX) wedge belts for use in industrial and agricultural applications. We supply these belts in either PIX™ or TIMKEN™ branded product depending on cuurent availaibility.
| Dimension |
Imperial (Inches) |
Metric (mm) |
| Nominal Top Width |
|
9.7mm |
| Nominal cross-section |
|
8.0mm |
Pix™ Features
- Higher power transmission capacity than wrapped Belts
- Special cog design for enhanced flexibility and heat dissipation rate
- Suitable for drives using smaller diameter pulleys and high RPM
- Anti-static, oil & heat resistant
- Maximum Belt linear speed (Classical section: up to 30 m/Sec, Wedge: up to 42 m/Sec, Narrow: up to 45 m/Sec)
- Temperature range: -25°C to +100°C
TIMKEN™ Features
- High-Modulus Cords Carries high horsepower loads with minimum stretch. Better belt stability. Fewer take-up adjustments.
- Precision Molded Cogs Improves belt flex, reduces bending stress. Helps dissipate heat and requires less power. Improves flexibility for increased performance on small diameter pulleys.
- EPDM EPDM offers superior flex and load carrying capacity. It resists belt cracking and won’t stretch. EPDM has excellent flexibility at high and low temperatures
- Raw Edge Sidewalls Produces a higher coefficient of friction. Keeps a tighter grip on the pulley to reduce slippage. Improves performance and efficiency. Reduces vibration for extended component life
- Durable
- Oil & Heat Resistant
- Static Conductive
- Resist hardening & glazing
- 60% broader operating temperature
- Made in USA
- Energy efficient
BrandsWe supply several brands, depending on what is in stock. When placing your order we will supply either PIX™ or TIMKEN™ branded belts. If you require a specific brand please specify this on the order.
