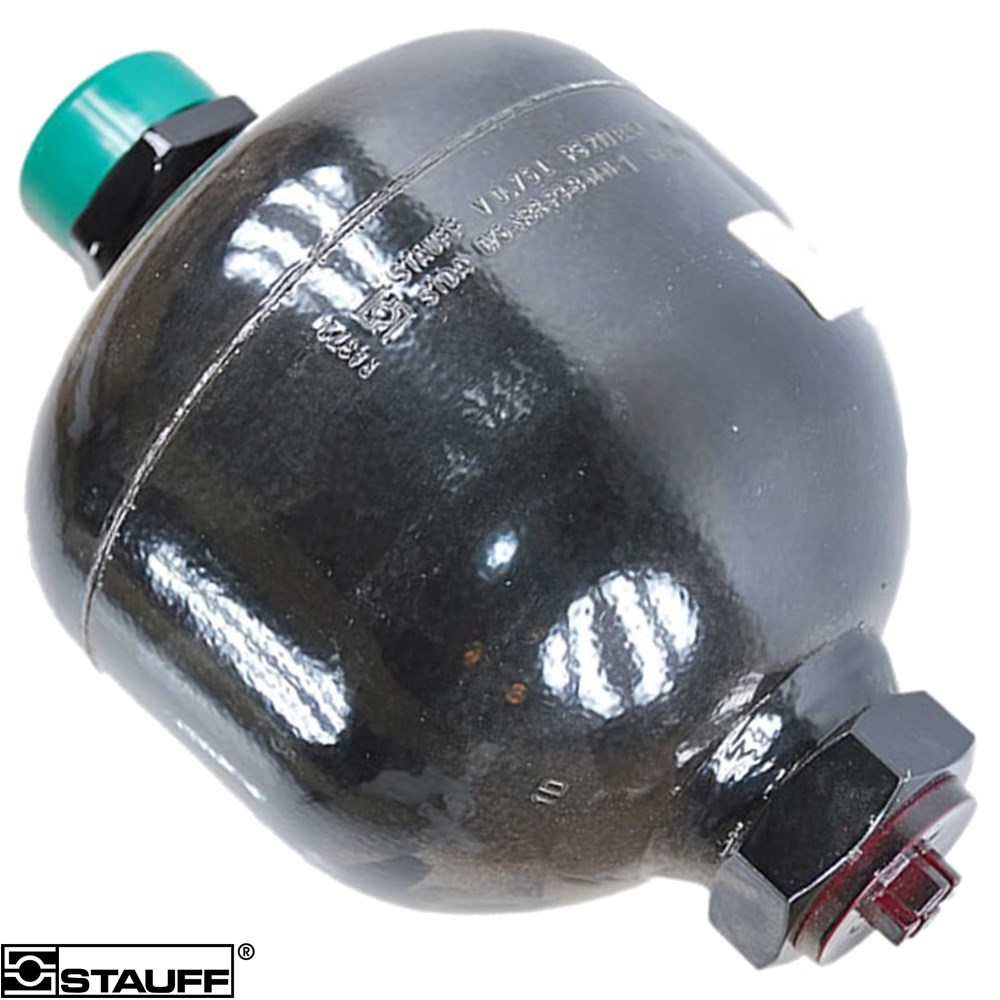

ACCUMULATOR 1.0L DIAPHRAGM

TYPE M28X1.5 (NON-REPAIRABLE) MAX PRESSURE: 210 BAR -1/2BSPP

Product Code: STDA100NBRP3BMN1
  $259.00
EACH inc GST
Afterpay Logo
4 payments of $64.75
In Stock Low Stock Contact Us Please See Attributes 8
Increase value Decrease value

  • Detail
  • Parts & Codes
  • Downloads

John Deere® Compatible

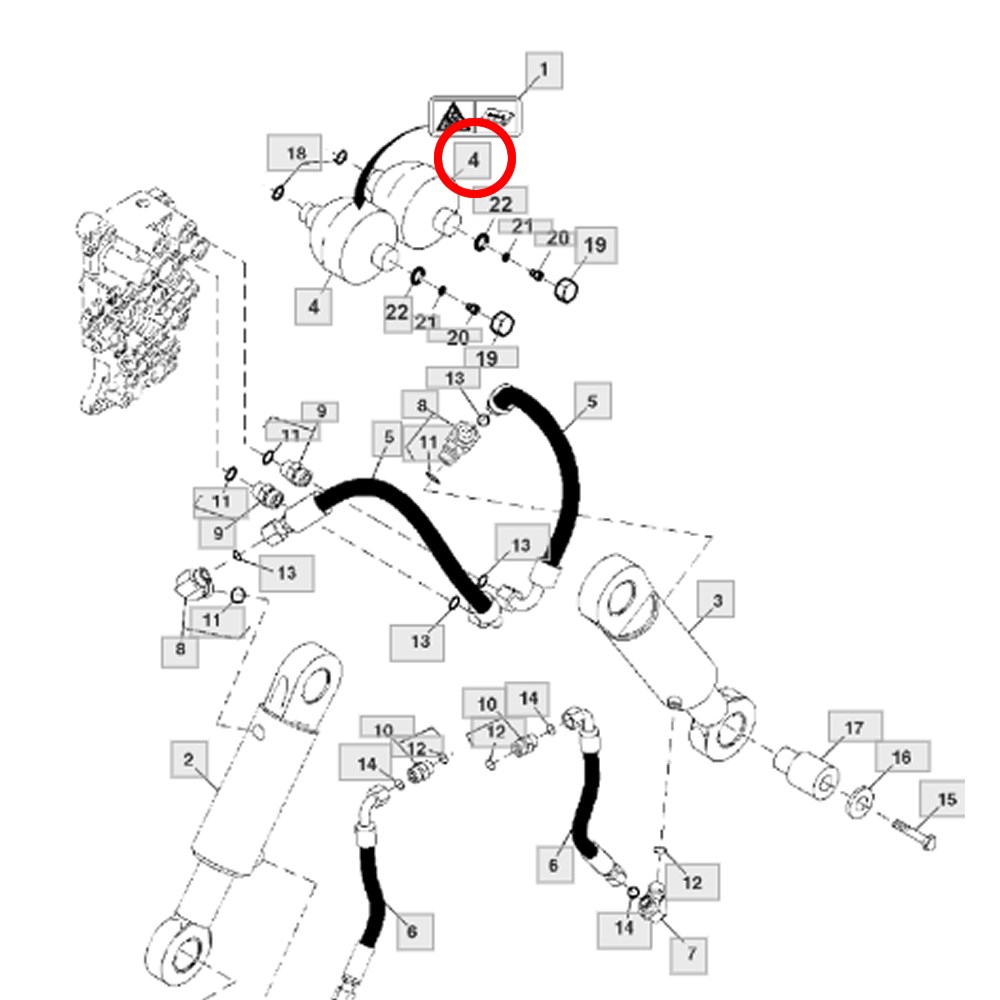

ILS™ Suspension Upper Accumulator


Aftermarket Stauff Diaphragm Accumulator (STDA Series) to fit the upper section of the front suspension on John Deere® tractors. This accumulator is a a non-repairable compact type with a nominal capacity of 1.0 Litre with a M28 x 1.5mm Gas Connection and a BSPP Female 1/2" Fluid Port Connection. Maximum working pressure rating of 210 Bar.

Part numbers
  • RE321770 RE193370
Series Models Serial/Year
John Deere 20™ Series Tractors 8120, 8220, 8320, 8420, 8520 With ILS™ Suspension
John Deere 82™ Series Tractors 8225R, 8235R, 8245R, 8260R, 8270R, 8285R, 8295R With ILS™ Suspension
John Deere 83™ Series Tractors 8310R, 8320R, 8335R, 8345R, 8360R, 8370R With ILS™ Suspension
John Deere 84™ Series Tractors 8400R With ILS™ Suspension

Features
  • Genuine Stauff® Made in Germany
  • 1.0 Lite nominal capacity
  • M28x1.5mm gas connection
  • 1/2"-F BSPP Fluid Port
  • Supplied un-gassed
  • 2 required per tractor
RE321770 RE193370

Documents

John Deere® Compatible ensures the C&M aftermarket part will fit the machine model stated based on our research and customer feedback. C&M parts are an aftermarket product and do not make a claim to be a genuine John Deere® part. It is recommended prior to ordering you should verify the parts will fit your equipment. John Deere® is a registered trademark of DEER & COMPANY
