Genuine SMC® SV1000 Series
4/3 NC 24VDC Soleniod Valve

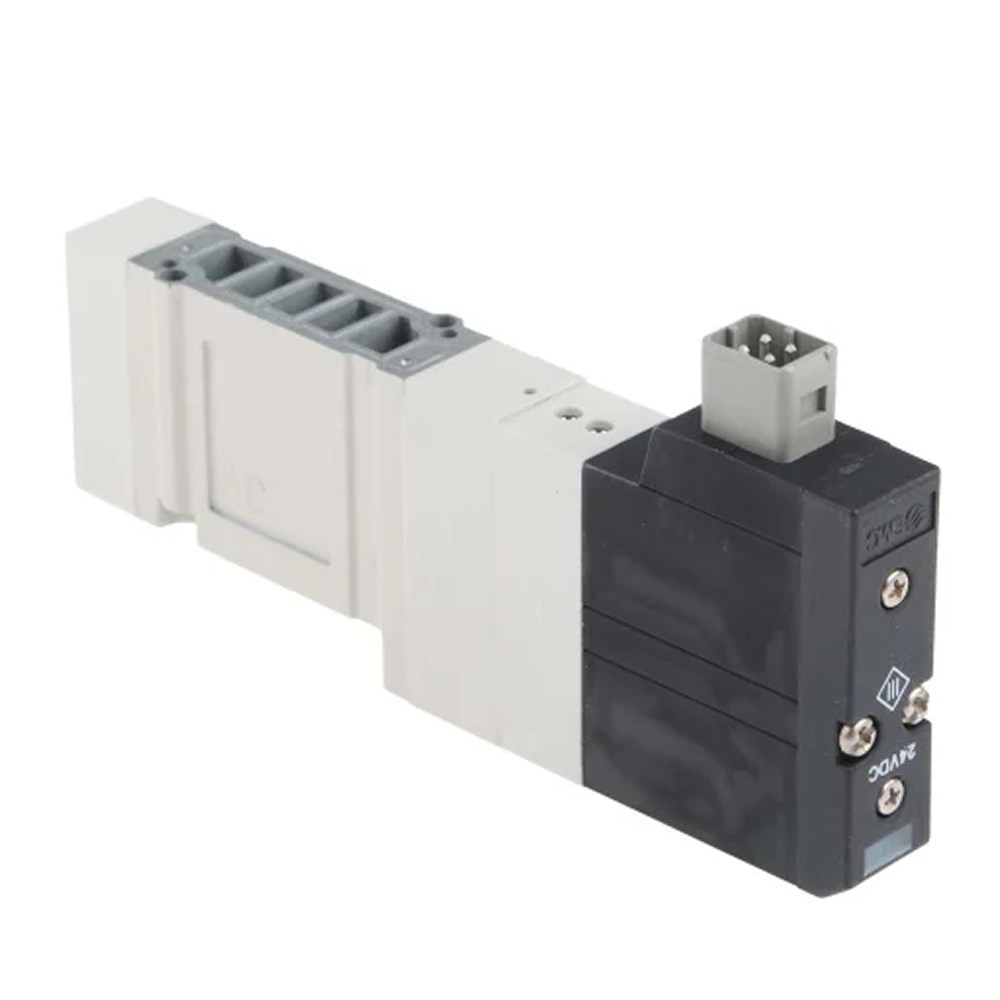

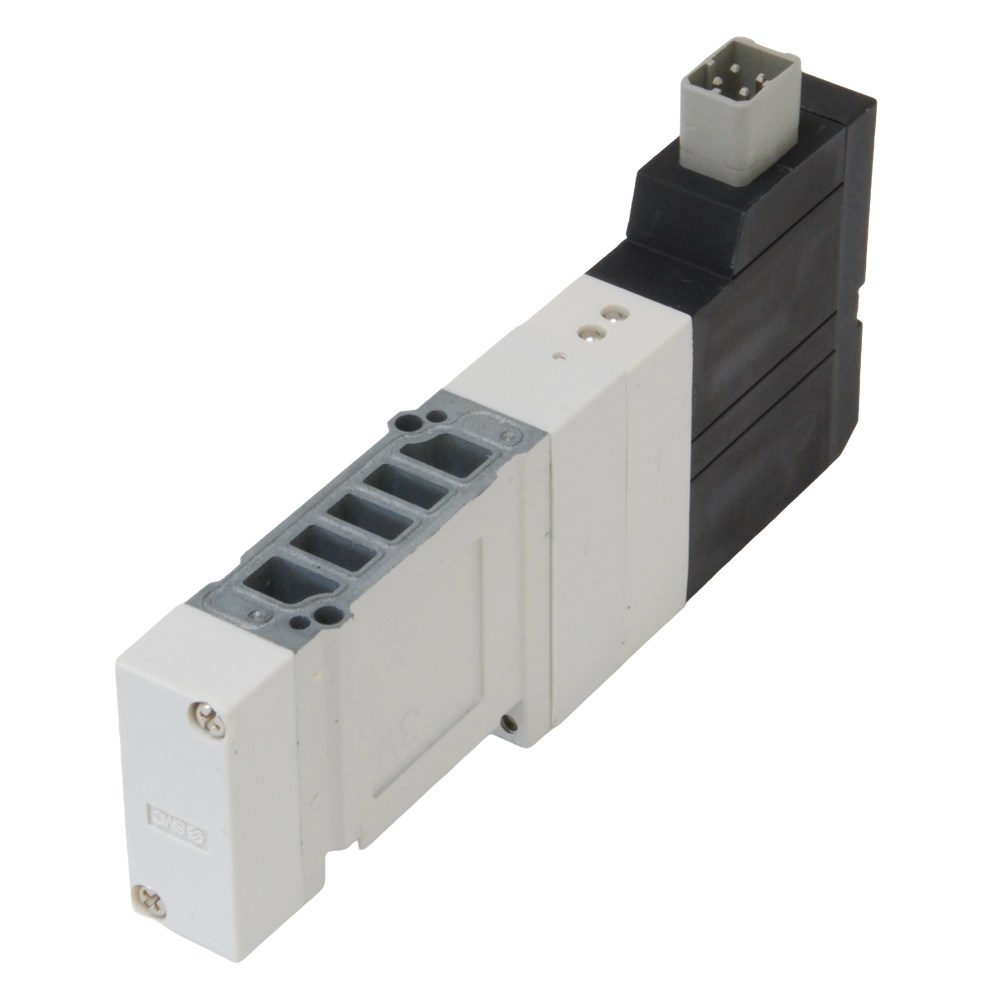

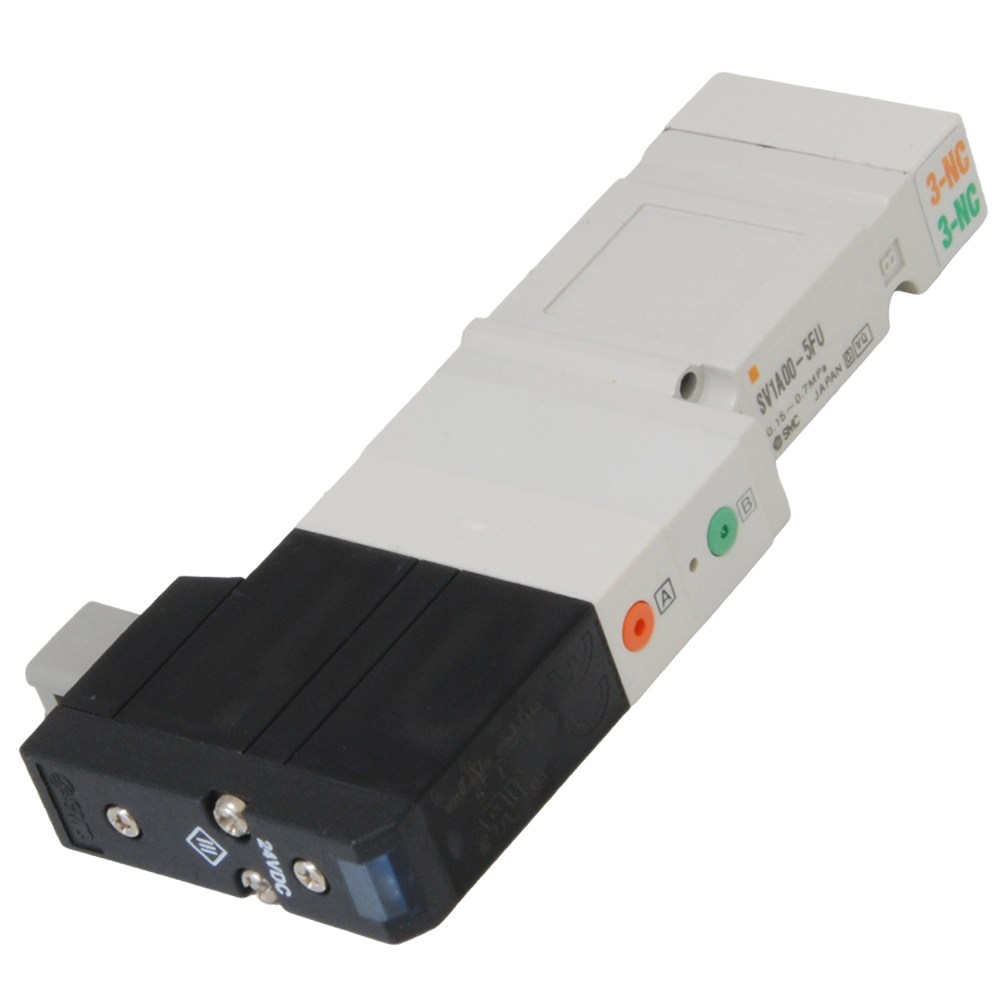

SMC® SV1A00-FFU is a high-flexibility, 4-position dual 3-port, 24VDC plug-in solenoid valve designed for controlling pneumatic air flow in manifold systems. It is primarily used in factory automation to simplify installation and modifications using cassette-type base manifolds with 34-pin, IP67-rated connectors.
- Application: Ideal for manifold mounting (SV1000 series), allowing up to 16 stations with 34-pin connectors.
- Valve Function: 4-position, dual 3-port (Normally Closed + Normally Closed) configuration.
- Installation: Uses a multi-connector system instead of conventional lead wires for internal manifold wiring, enabling easy, fast modifications.
- Design: Compact "cassette" type, suitable for applications requiring high, reliable, and configurable air control in, for example, manufacturing plants.
- Specifications: Operates with 24VDC, features a light/surge voltage suppressor, and has an IP67 rating.
