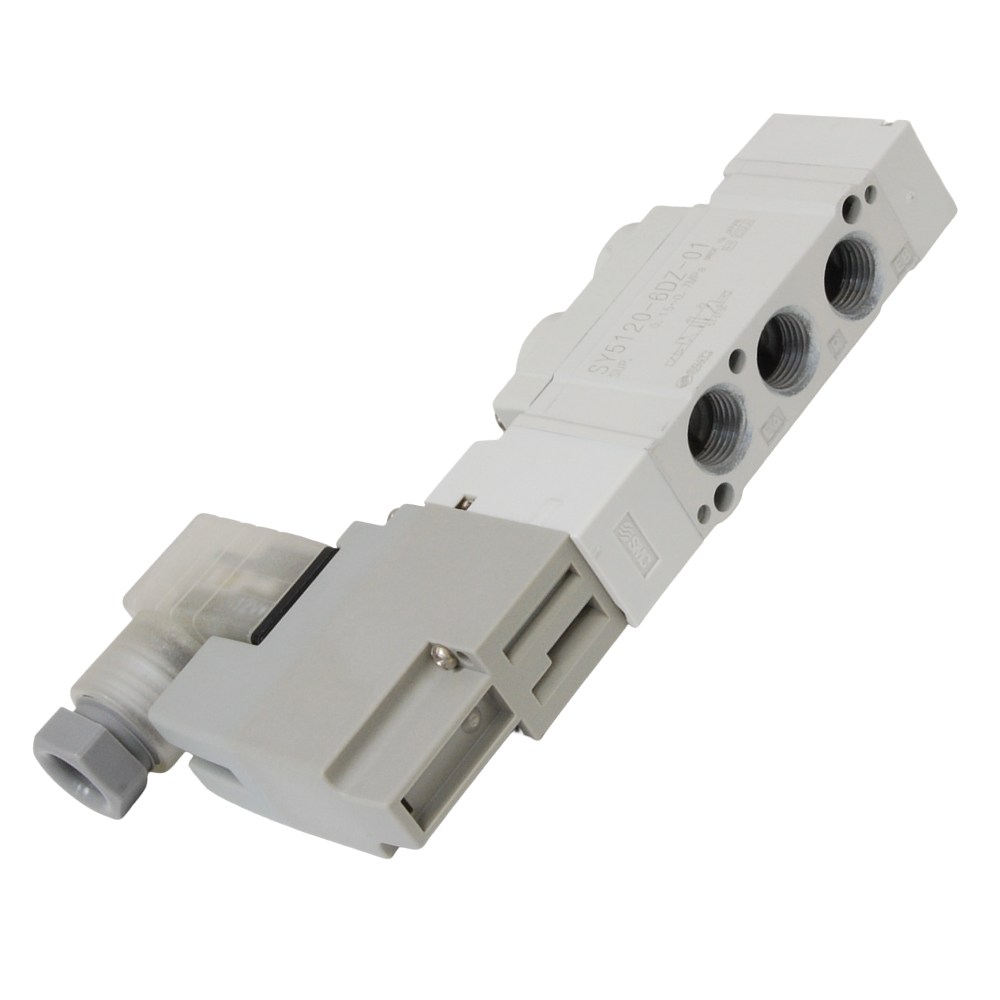

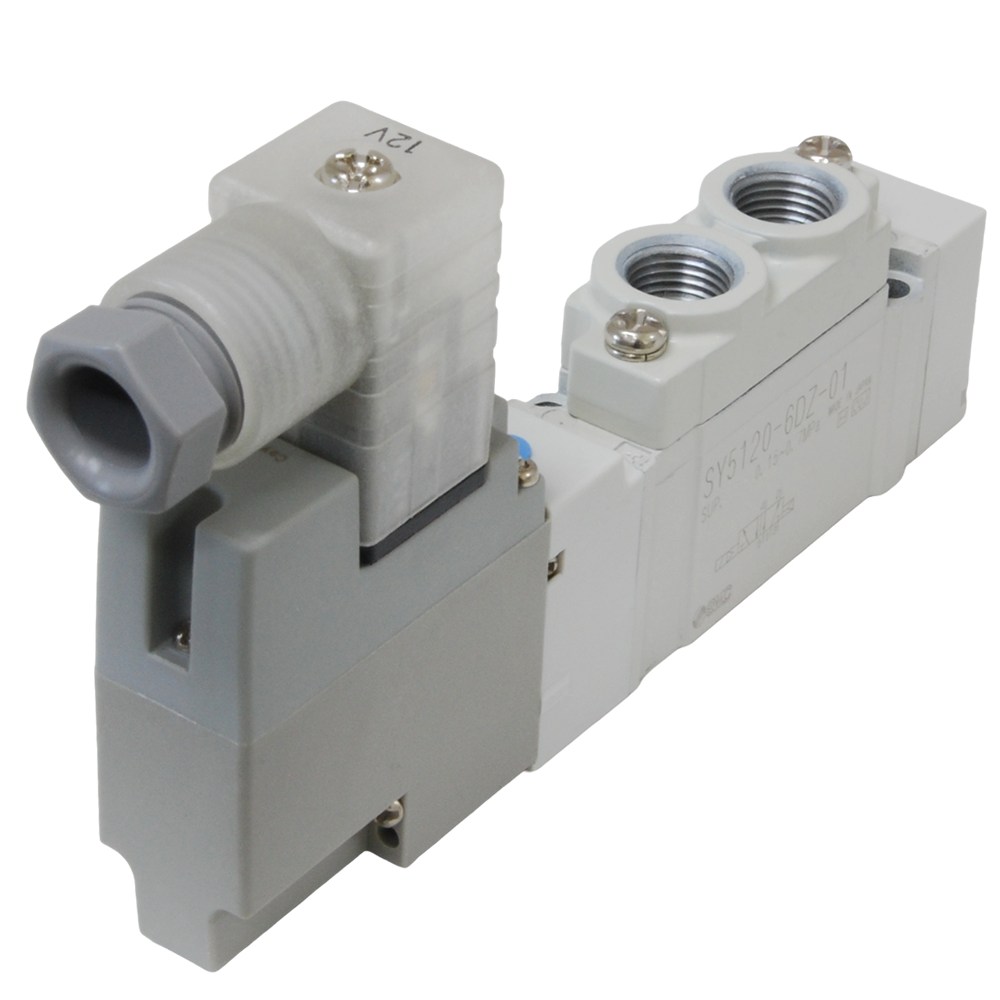

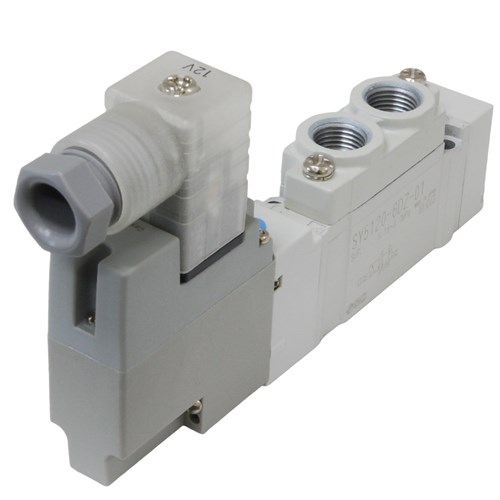

Genuine SMC® SY5000 Series
5-Port Solenoid Valve

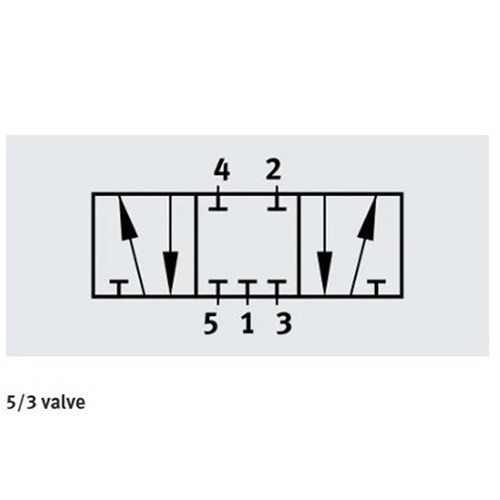

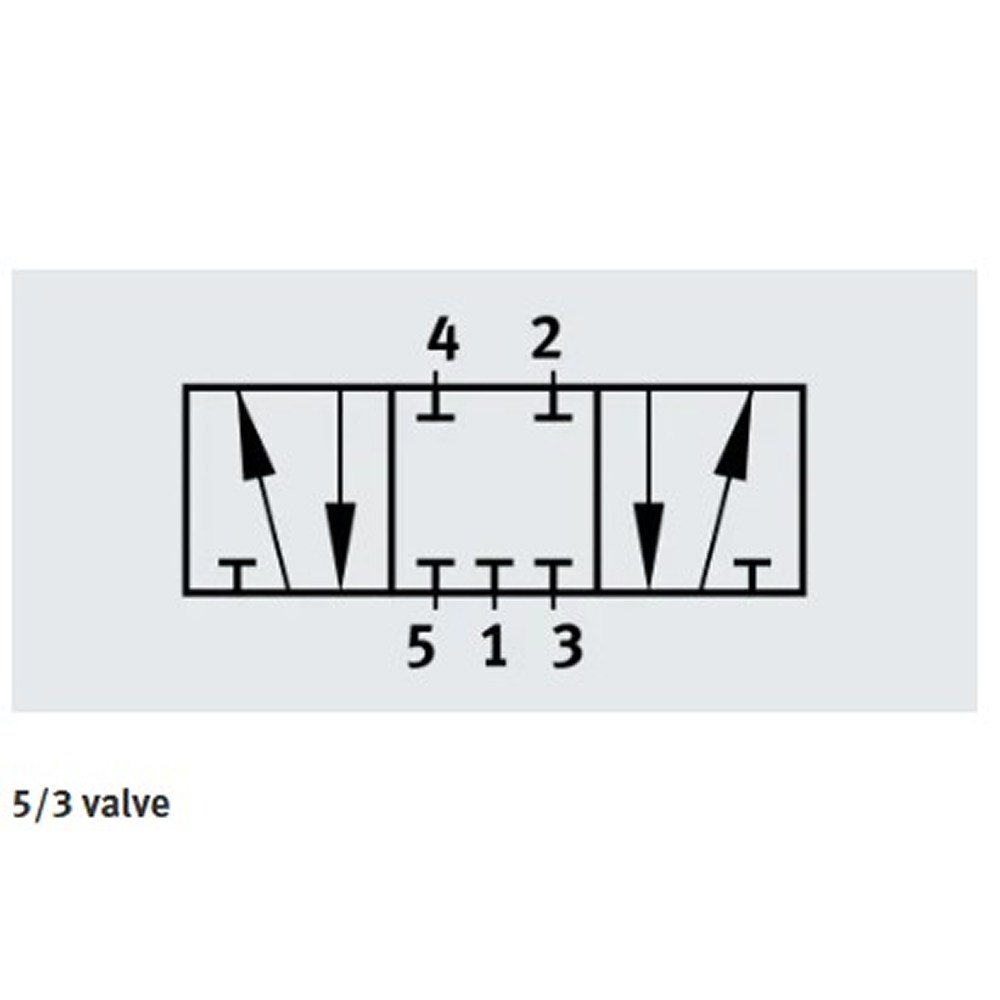

SMC® SY5120-6DZ-01 designed to control pneumatic actuators. Configured to extend and retract cylinders and is set up as a 5 port x 3 position (extend/retract/hold). Its primary use is to stop or hold a cylinder mid-stroke, or allow it to "creep," rather than just fully extending or retracting.
Key applications
- Mid stroke positioning of pneumaic actuators
- Safety control - allows for safe immediate stopping of actuators
- Variable control enabling inching or creeping of cylinders
Part Number
| SY5 |
1 |
20 |
6 |
D |
Z |
01 |
| SY5000 SERIES |
2 POSITION SOLENOID |
BODY PORTED |
12VDC |
DIN TERMINAL |
LIGHT SURGE SUPPRESSOR |
PORT BSP-F 1/8" |
