(BSPP-F 1" X FEMALE POPPET) HUS-25-F-G16-BT 4719 STAUFF

Product Code: T10010

Detail
Parts & Codes

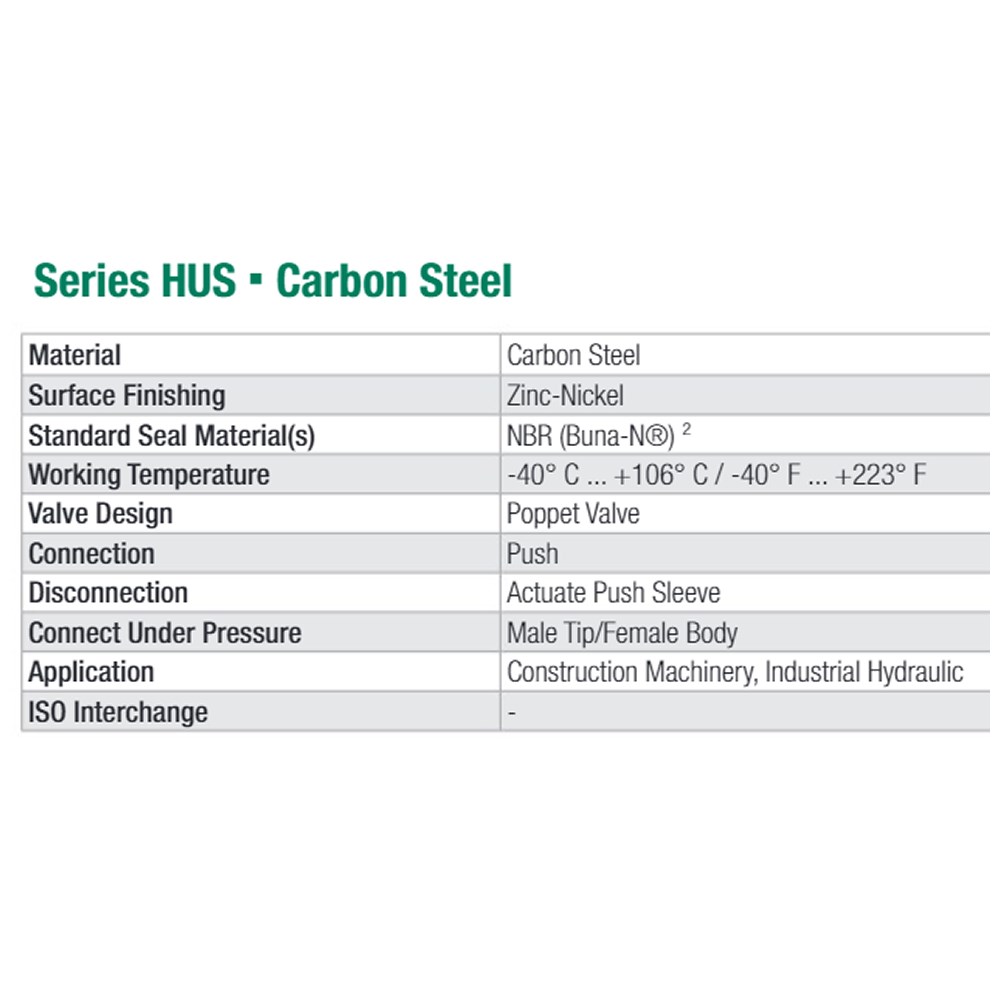

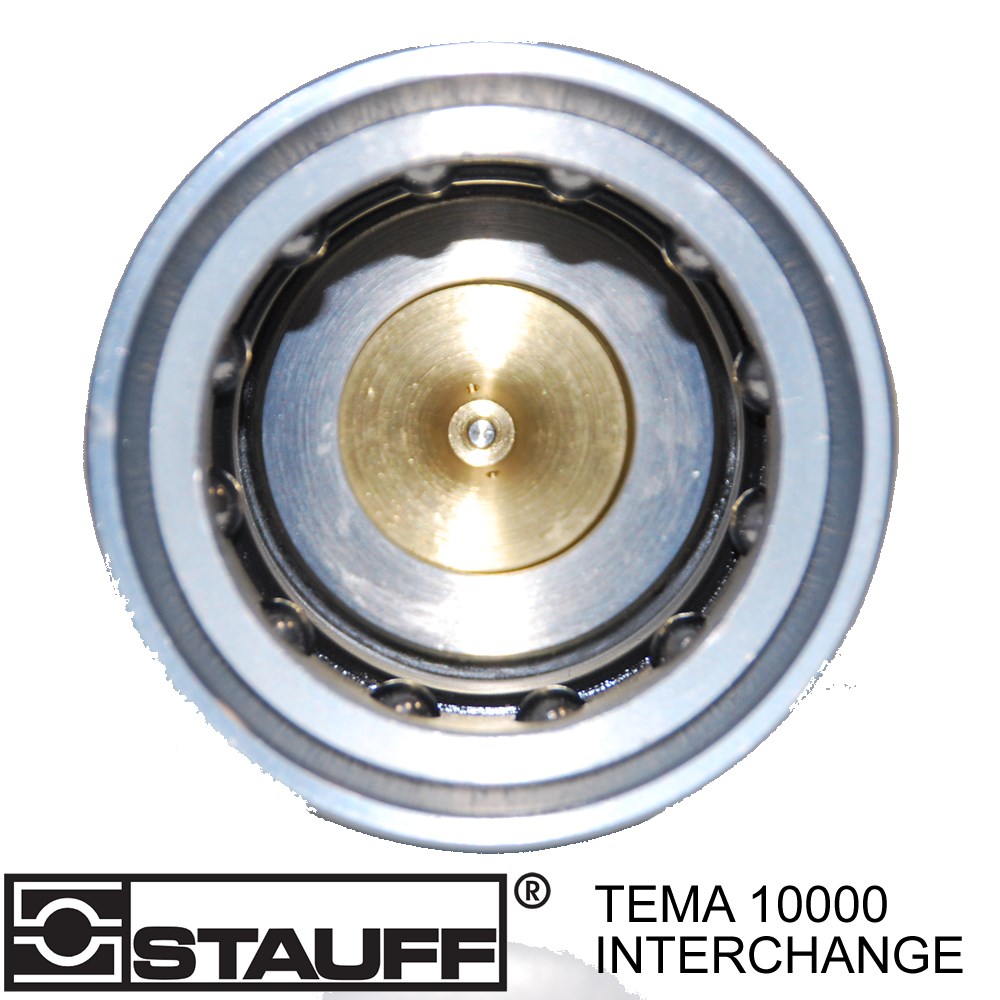

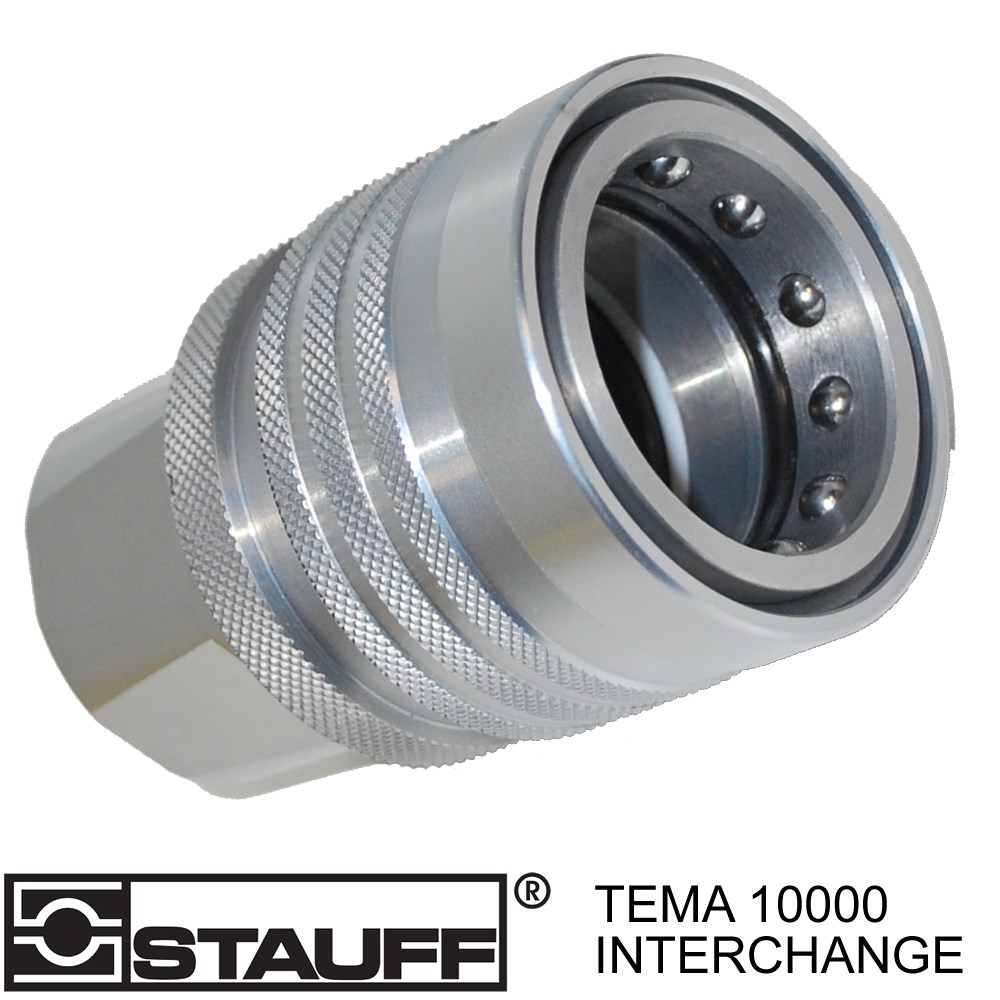

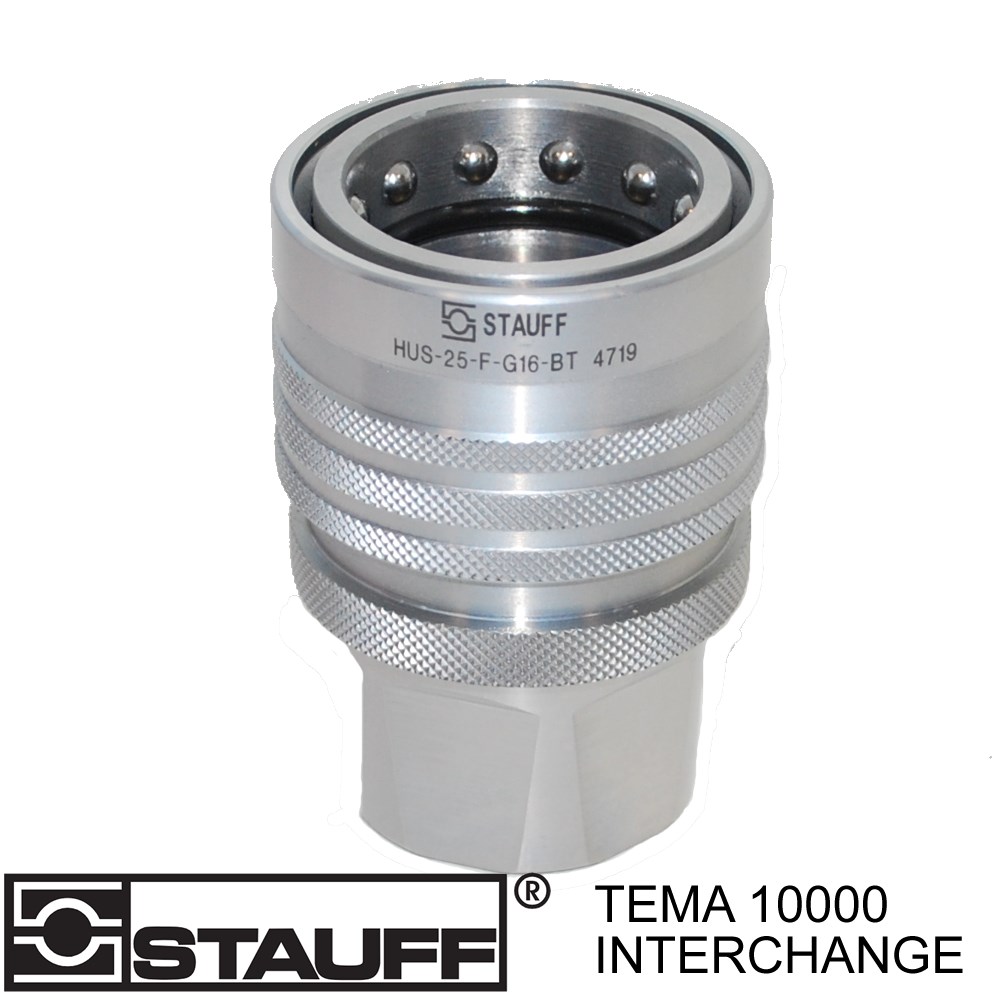

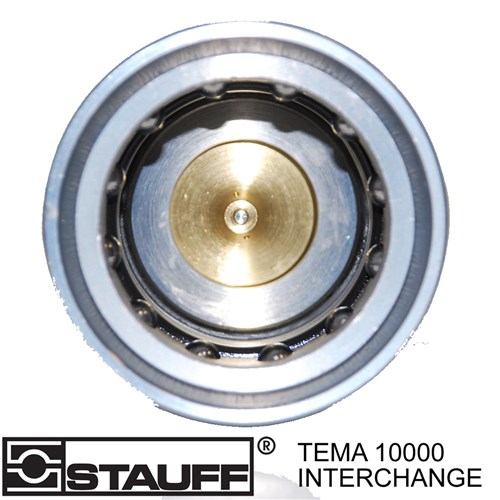

Stauff push to connect HUS Series female transportation coupling. Tema 10000 equivelent.

This Tema equivelent coupling is a quality Stauff product with and one of our most popular types of hydraulic couplings for the transport industry. The 1 inch female body has a rated working pressure of 260 Bar (3770 PSI)and just over 400 L/Min flow rate (Approx. 100 USGPM). This coupling comes fitted with dual NBR O-ring seals for a temperature range of -40Deg C to +106Deg C.

Quality Stauff product

Carbon Steel with zinc nickle finish

Poppet Valve

Couple under pressure

Push sleeve actuation

Lockable sleeve actuation

HUS25FG16BT4719

HUS25FG16BT4719
