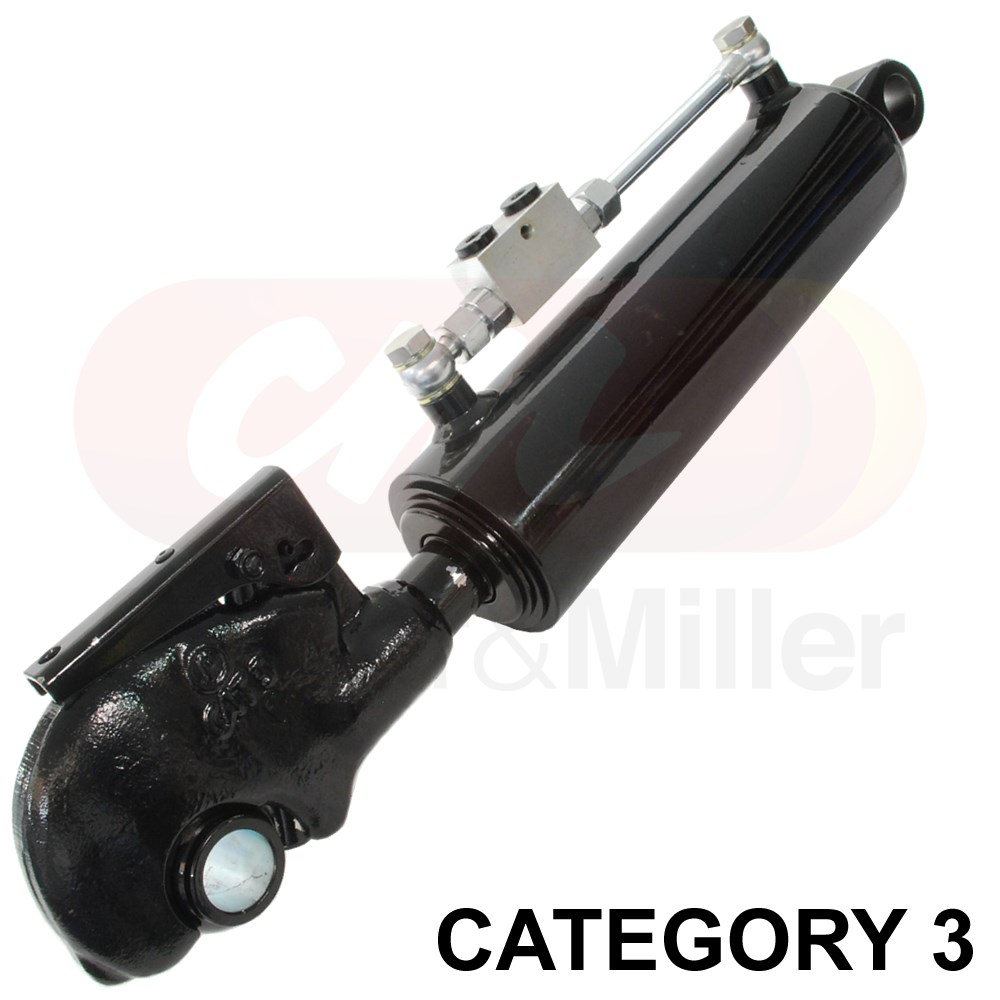

QUICK HOOK CAT 3 KNUCKLE MOUNT LOCK VALVE 130 -170HP TRACTOR

Product Code: TLHQH3

Detail

Power your tractor's three-point-linkage system with a quality Motus® Quick-Hook / Knuckle category 3 hydraulic top link.

Features

Quick-Hook / Knuckle mount
Fitted with lock-valve to stop cylinder creep
Quality components for long trouble-free operation
3/8" BSPP-F valve ports

Specifications

Stroke	250mm
Closed centre measurement	654mm
Open centre measurement	895mm
Ports	3/8" BSPP-Female
Base Mount	Knuckle 1"
Shaft Mount	Quick-Hook with Ball 1-1/4" (Cat3)
Force Extension	kG @ 2250psi
Force Retraction	9240kG @ 2250psi
