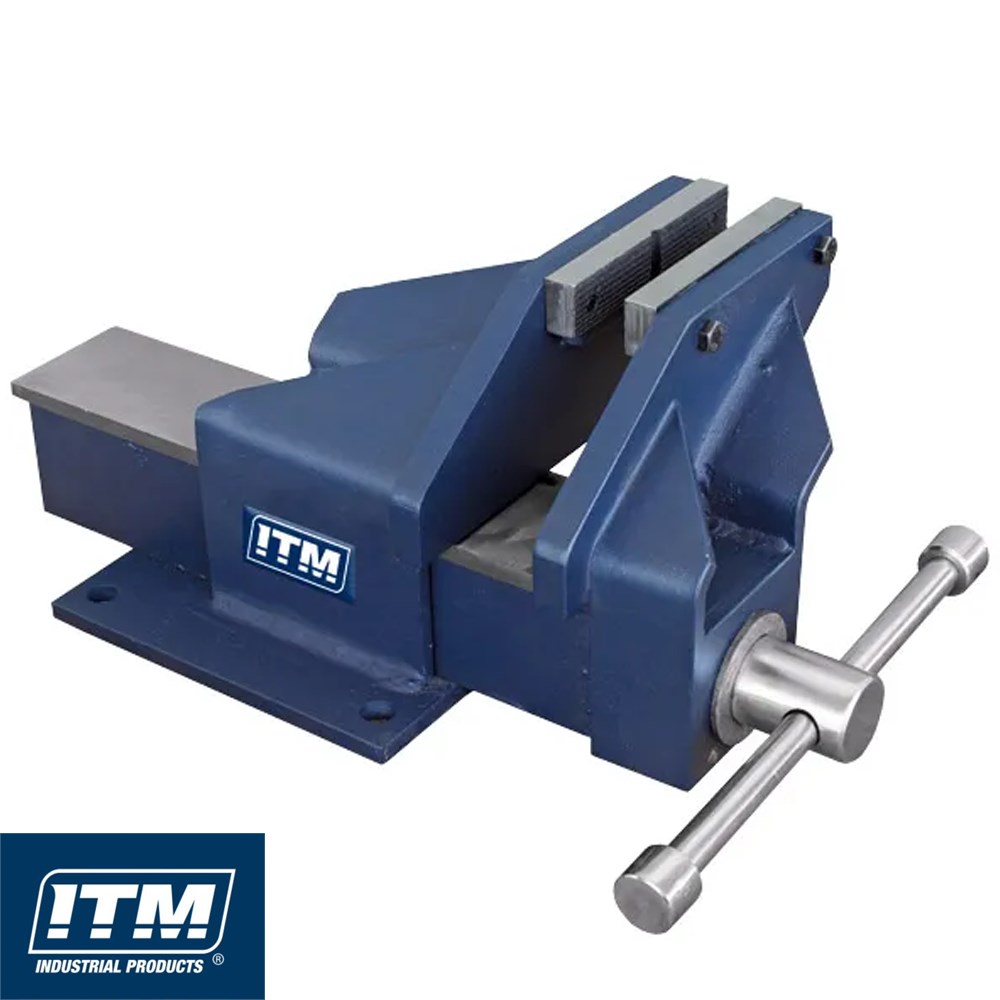

ITM Fabricated Steel Bench Vices – Offset Jaw

Engineered for demanding industrial applications, ITM Fabricated Steel Bench Vices with offset jaws are built tough from heavy-duty steel plate. These vices feature a large diameter screw and smooth-sliding jaw for precise, consistent clamping performance. Replaceable precision-machined knurled jaws with integrated V-grooves provide a secure grip on both flat and rounded materials. Designed for durability and long service life, these vices are a reliable addition to any workshop.

Features

• Available in 125mm, 150mm & 200mm sizes
• Fabricated from heavy steel plate for industrial strength
• Offset jaw design for enhanced access and functionality
• Precision-machined knurled jaws with V-groove
• Replaceable jaws for extended tool life
• Large diameter screw for smooth, accurate operation

Specifications - 125mm

• Jaw Width: 125mm
• Max Jaw Opening: 140mm
• Jaw Depth: 95mm
• Weight: 20.3kg
• Jaw Type: Offset

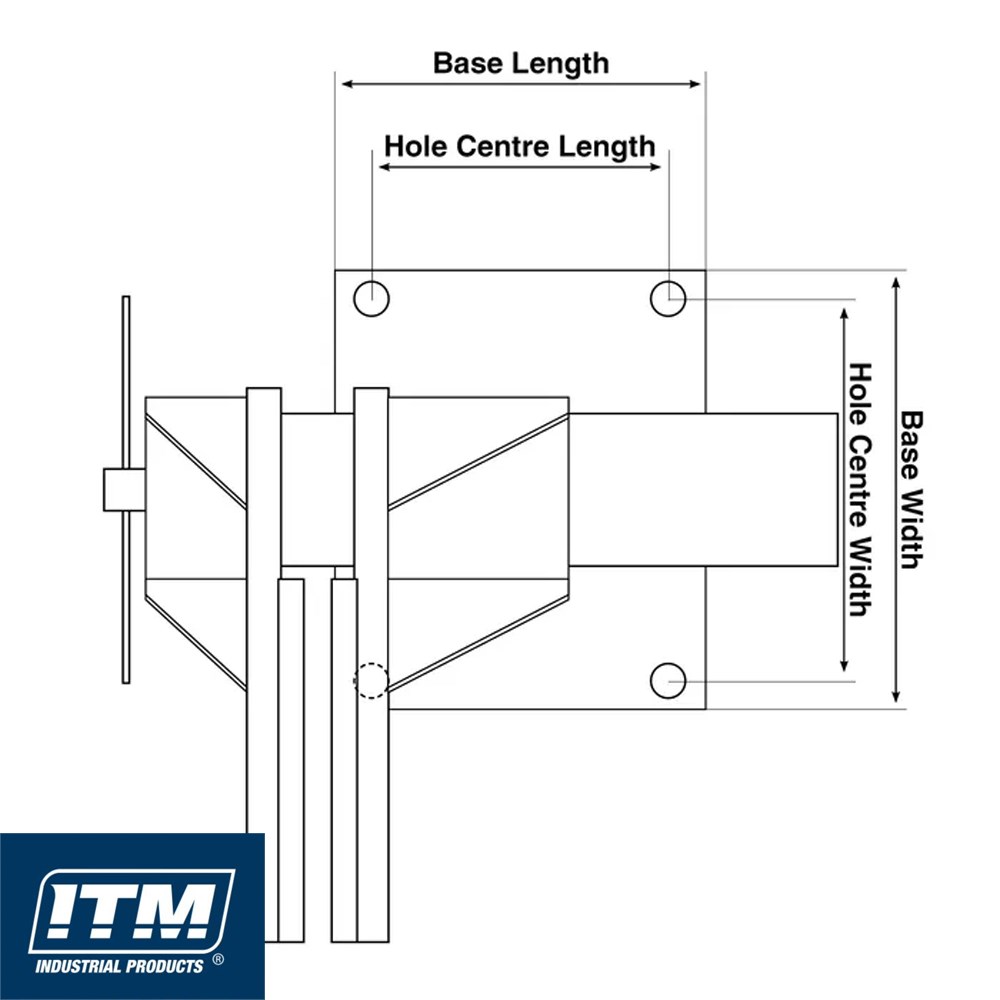

• Base Length: 200mm
• Base Width: 180mm
• Hole Centre Length: 170mm
• Hole Centre Width: 150mm

Specifications – 150mm

• Jaw Width: 150mm
• Max Jaw Opening: 170mm
• Jaw Depth: 105mm
• Weight: 25kg
• Jaw Type: Offset
• Base Length: 230mm
• Base Width: 200mm
• Hole Centre Length: 200mm
• Hole Centre Width: 170mm

Specifications – 200mm

• Jaw Width: 200mm
• Max Jaw Opening: 265mm
• Jaw Depth: 135mm
• Weight: 60kg
• Jaw Type: Offset
• Base Length: 300mm
• Base Width: 250mm
• Hole Centre Length: 255mm
• Hole Centre Width: 200mm
