5 LEAF 6.5MM 2T OFFSET 14" RIMS

Product Code: TRR605I

Detail
Interchange
Downloads

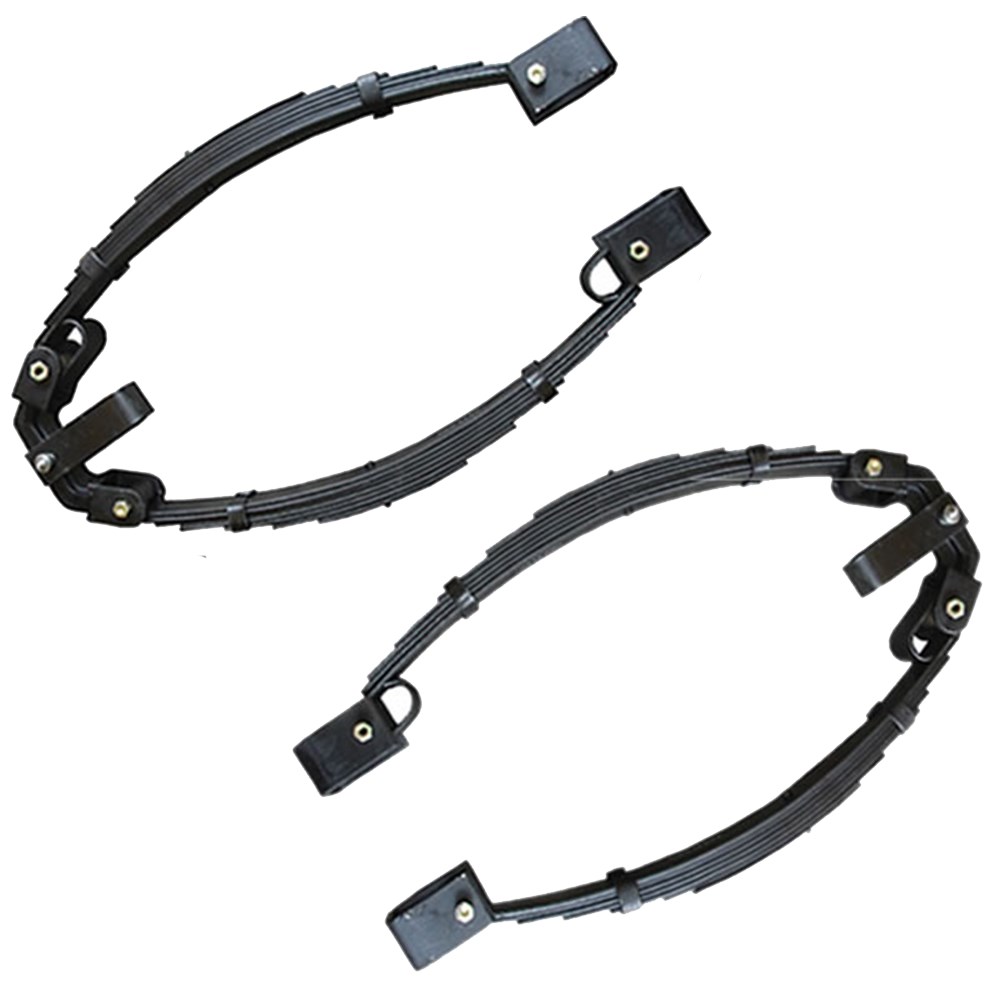

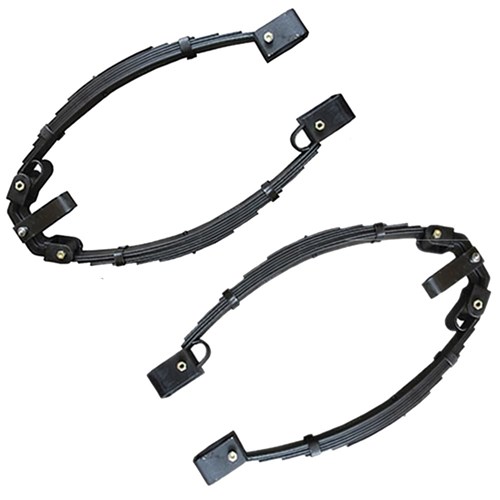

Rocker Roller Tandem Spring Set

2.0 Tonne X 5 Leaf

Tandem rocker-roller spring set suiatble for use on trailers.

Supplied as a pair (2)
Complete with fitting kit
2 Tonne capacity - per pair
5 leaf x 60mm x 6.5mm spring steel
Suits 14" rims

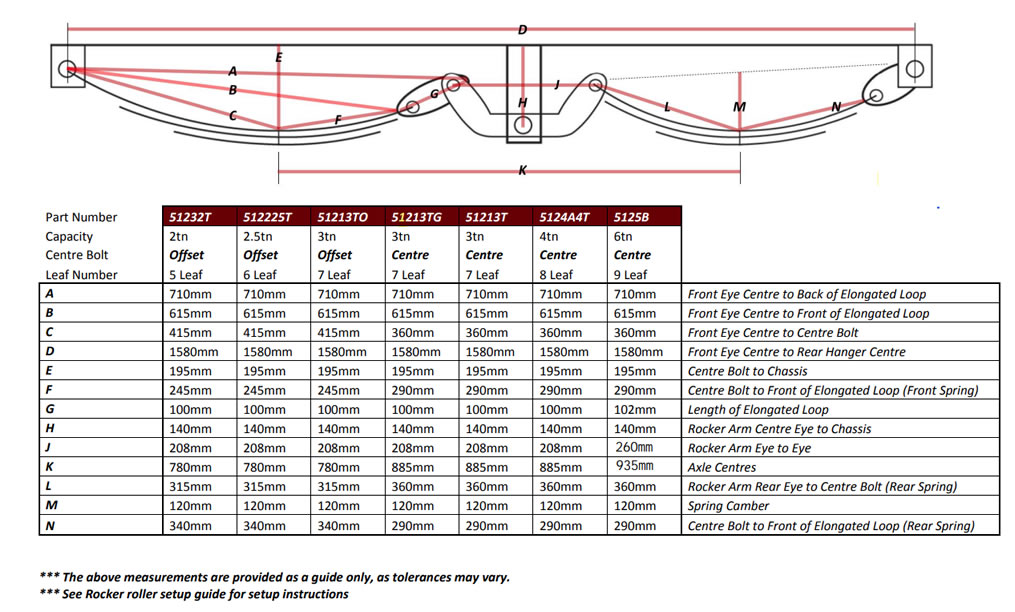

Detailed dimensions in sizing guide link.
Fitting instructions in download tab.

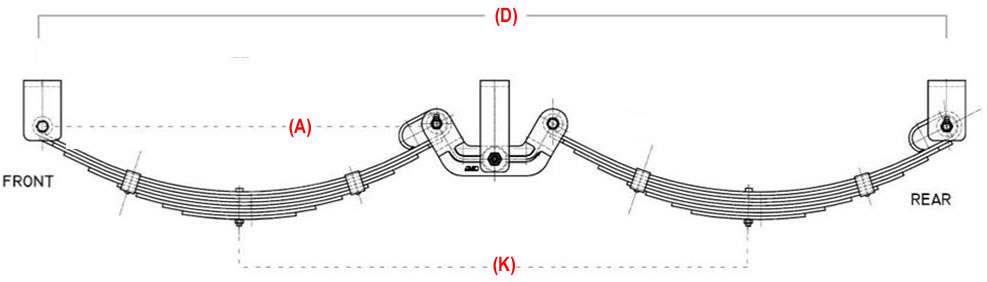

	A	D	K	Centre Bolt	# Leafs	Load Capacity	Rim Diameter
TRR605I (51232T)	710mm	1580mm	780mm	Offset	5	2.0 Tonne	14"
TRR607I (51213TO)	710mm	1580mm	780mm	Offset	7	3.0 Tonne	14"
TRR607I16 (51213T)	710mm	1580mm	885mm	Centre	7	3.0 Tonne	16"
TRR608I16 (5124A4T)	710mm	1580mm	885mm	Centre	8	4.0 Tonne	16"
TRR609I16 (5125B)	710mm	1580mm	935mm	Centre	9	6.0 Tonnr	16"

51232T
