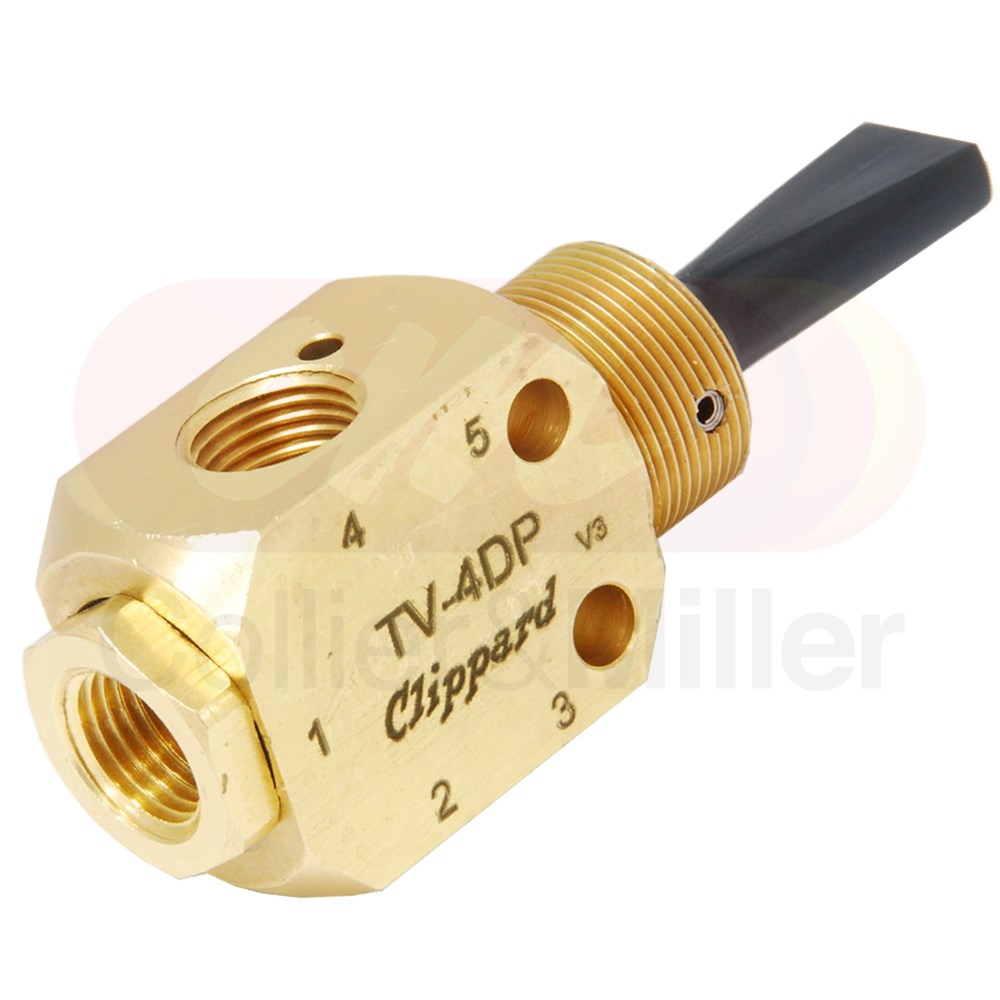

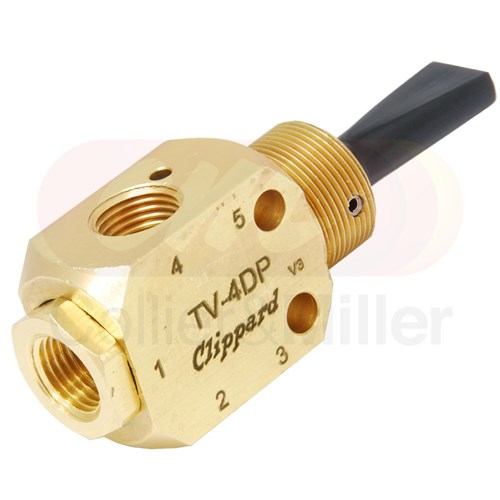

CLIPPARD MECHANICAL VALVE 5/3 TOGGLE LEVER (BSP-F 1/8 PORTS)

TOGGLE LEVER (BSP-F 1/8 PORTS)

Product Code: TV4DP

Detail

Clippard (5-Way 3-Position) Toggle Valve - Two Action

This 5/3 valve has 5 ports and 3 positions. Designed to actuate a double action cylinder or rotary motor in both directions. center position is closed with both ports 2 & 4 open to atmosphere.

Specifications

5-way 3-position (5/3)
Normally Closed
Detented/Detented
Max pressure 300 Psi
Port 1/8"-F BSP

Features

Plastic Toggle
Brass body

Typical Uses

Control a double action cylinder or motor in two directions with center closed and ports vented to atmospere.
