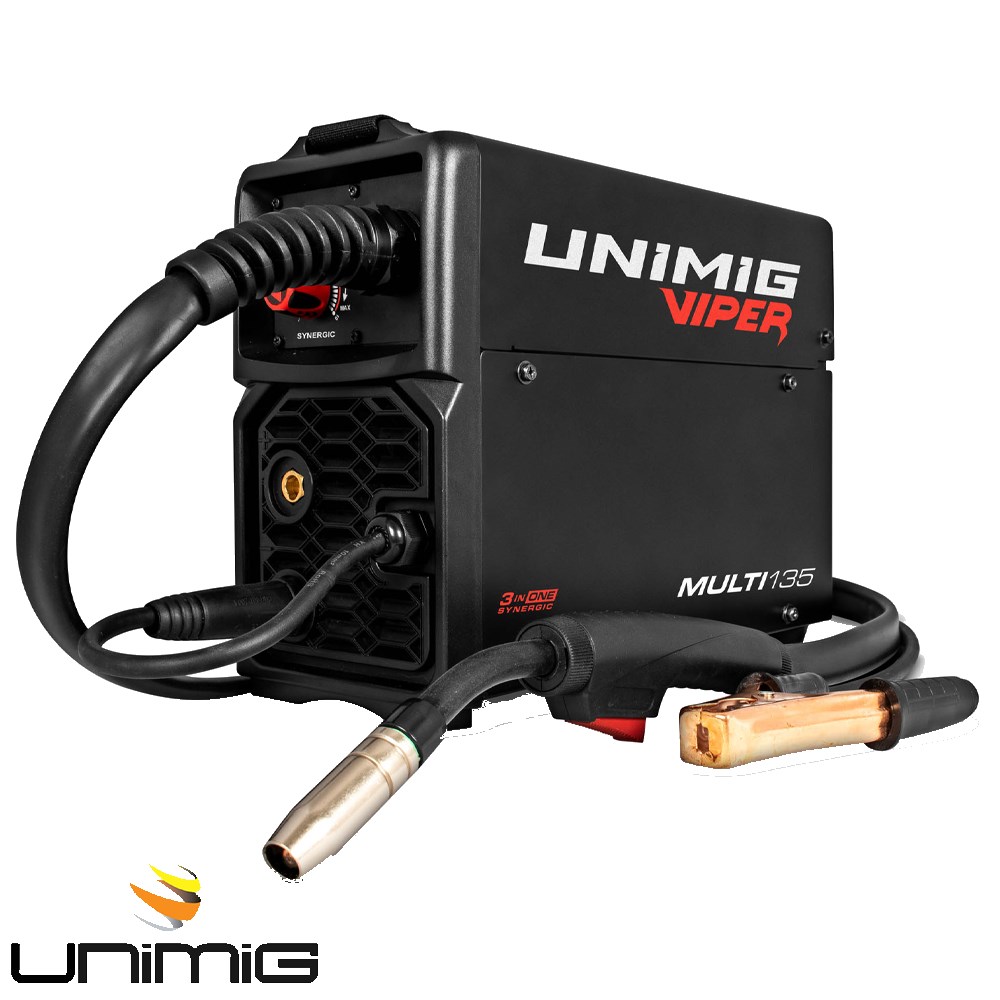

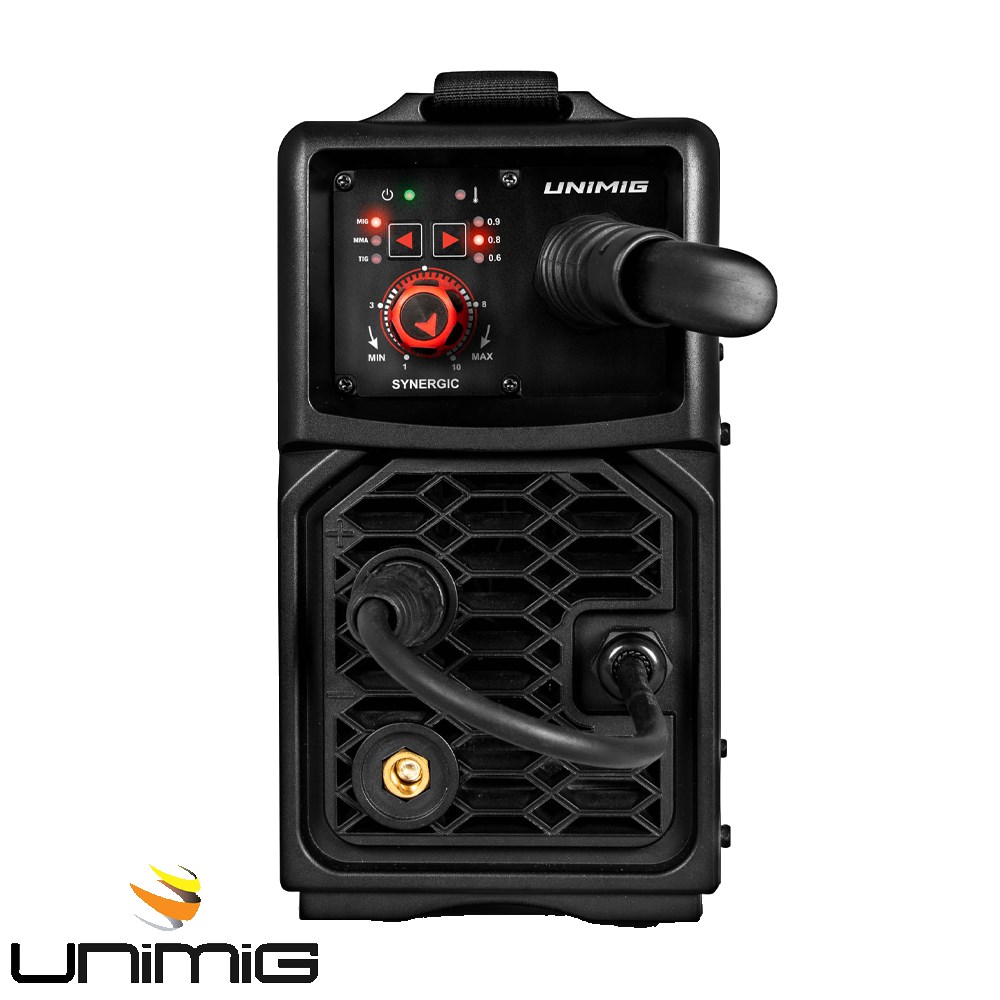

Unimig Viper Multi 135 Mig/Tig/Stick Welder

• The ultimate DIY multi-process welder, the VIPER MULTI 135 is perfect for those weekend projects.
• Synergic MIG controls for quick and easy weld setups
• 3-in-1 multi-process machine so you can MIG, TIG & STICK
• 10 amp plug, so you can use it with any domestic outlet

Machine Specifications

• Primary Input Voltage: 240v Single Phase
• Supply Plug: 10 Amp
• Rated Input Power (Kva):4.15
• Ieff (A): 8.4
• Rated Output: 40/16v-135a/21v
• No Load Voltage (V): 68
• Protection Class: Ip21s
• Insulation Class: H
• Power Factor: 0.68
• Minimum Generator (Kva): 8.0
• Dinse Connector: 10/25
• Standard :As/Nz60974-1
• Suitable Material: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper
• Warranty (Years): 2

Mig Specifications

• Mig Welding Current Range: 40-135a
• Mig Duty Cycle @ 40°C: 15% @ 135a, 60% @ 65a, 100% @ 50a
• Mig Wire Size Range: 0.6-0.9mm
• Mig Wire Spool Size: 1kg
• Mig Welding Thickness Range: 1-6mm

Tig Specifications

• Tig Function Type: Dc Lift Arc
• Tig Welding Current Range: 20-120a
• Tig Duty Cycle @ 40°C: 15% @ 120a, 60% @ 60a, 100% @ 45a
• Tig Welding Thickness Range: 1-6mm

Stick Specifications

• Stick Welding Current Range: 20-120a
• Stick Duty Cycle @ 40°C: 15% @ 120a, 60% @ 60a, 100% @ 45a
• Stick Electrode Range: 2.5-3.2mm
• Stick Welding Thickness Range: 1-6mm

Size & Weight

• Dimensions (Mm): 353x132x250mm
• Weight (Kg): 5.2kg

Machine Features

• Wire Drive: Standard
• Vrd: Yes
• Thermal Overload Protection: Over Temperature Warning

Includes

• VIPER MULTI 135 MIG/TIG/STICK Welder
• 2m Direct Connect MIG Torch
• 2m Earth Clamp & Lead
• Electrode Holder
• 2m Gas Hose Complete with fittings
• 1kg E71T-GS 0.8mm Gasless Wire
• Operating Manual
