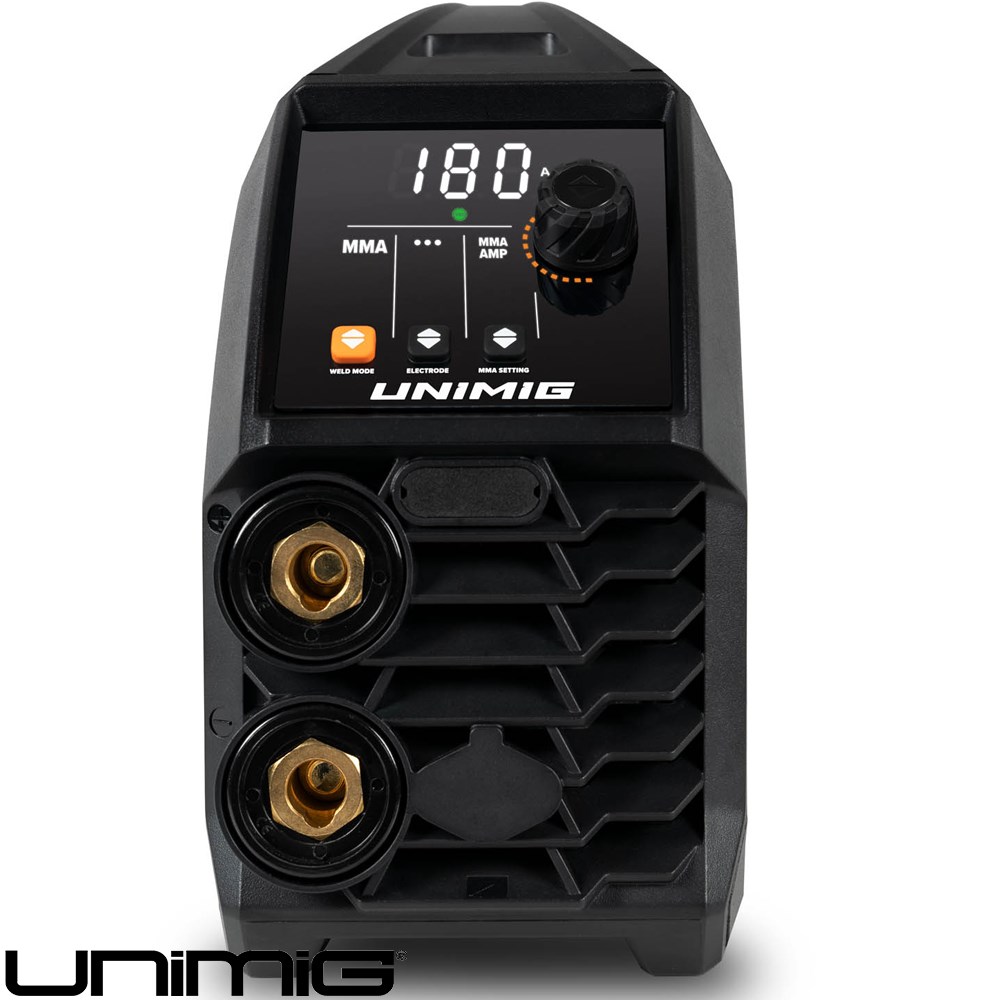

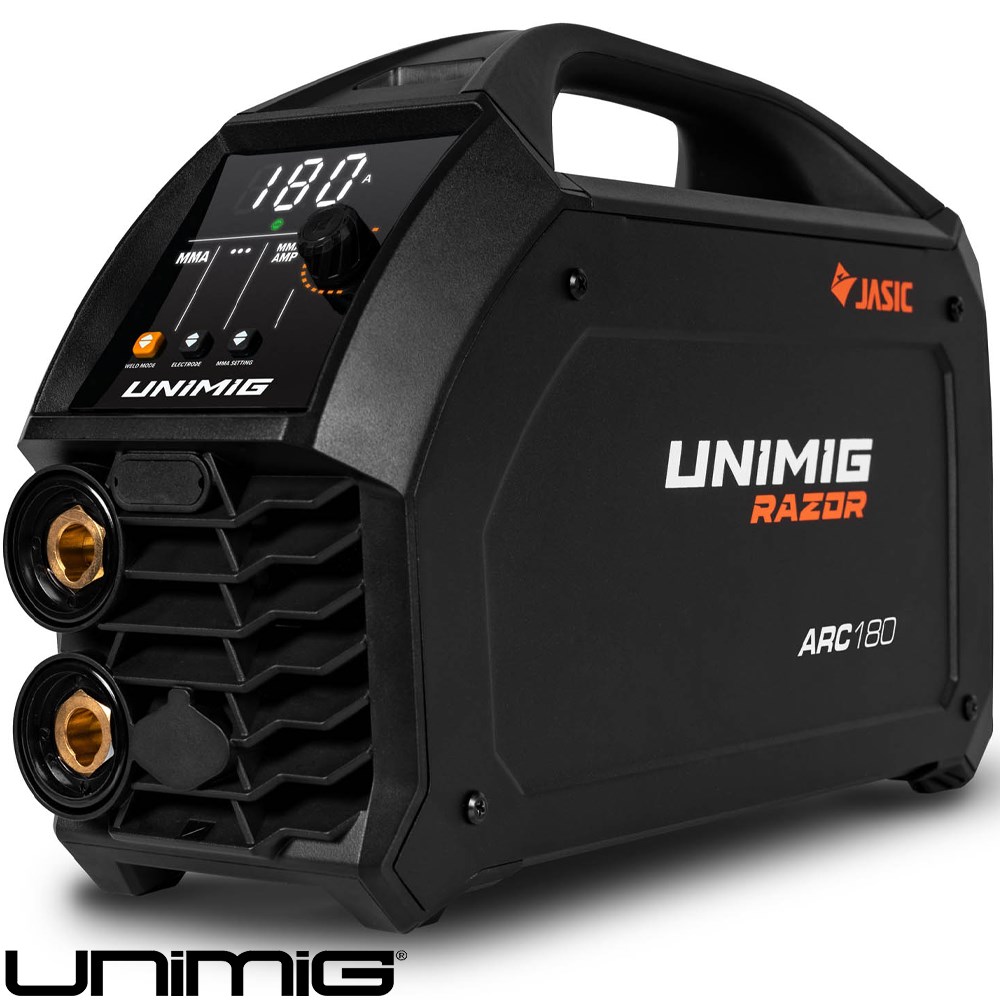

UniMig Razor Arc 180 Welder

Introducing the UniMig Razor Arc 180 Welder, a professional STICK (MMA) machine designed for both worksites and workshops. Packed with advanced features like hot start, arc force, and anti-stick, it provides precise MMA weld control. The machine's versatility extends to DC Lift Arc TIG, offering seamless transitions between applications. With a 15 AMP plug and a 5-year warranty, it ensures reliable performance and durability.

The HD Backlit Interface delivers a user-friendly control panel, while the Smart Fan technology reduces noise, saves power, and minimizes contaminants, creating a more efficient workspace. DC Lift Arc TIG simplifies the ignition process in TIG welding, enhancing overall precision by preventing tip sticking. The UniMig Razor Arc 180 Welder represents the fusion of power and precision, promising superior results in welding projects of any scale.

Features

• Versatile STICK (MMA) welder designed for worksites and workshops
• Advanced features include hot start, arc force, and anti-stick for precise weld control
• DC Lift Arc TIG adds versatility for various welding applications
• Backed by a 5-year warranty, ensuring confidence in durability and performance
• 15 AMP plug for reliable power connection, suitable for different outlets
• User-friendly HD Backlit Interface for easy control in any environment
• Smart Fan technology reduces noise, saves power, and minimizes contaminants
• MMA enhancements like Anti-Stick technology and adjustable Arc Force for improved weld quality
• DC Lift Arc TIG ignition simplifies the TIG welding process, enhancing precision

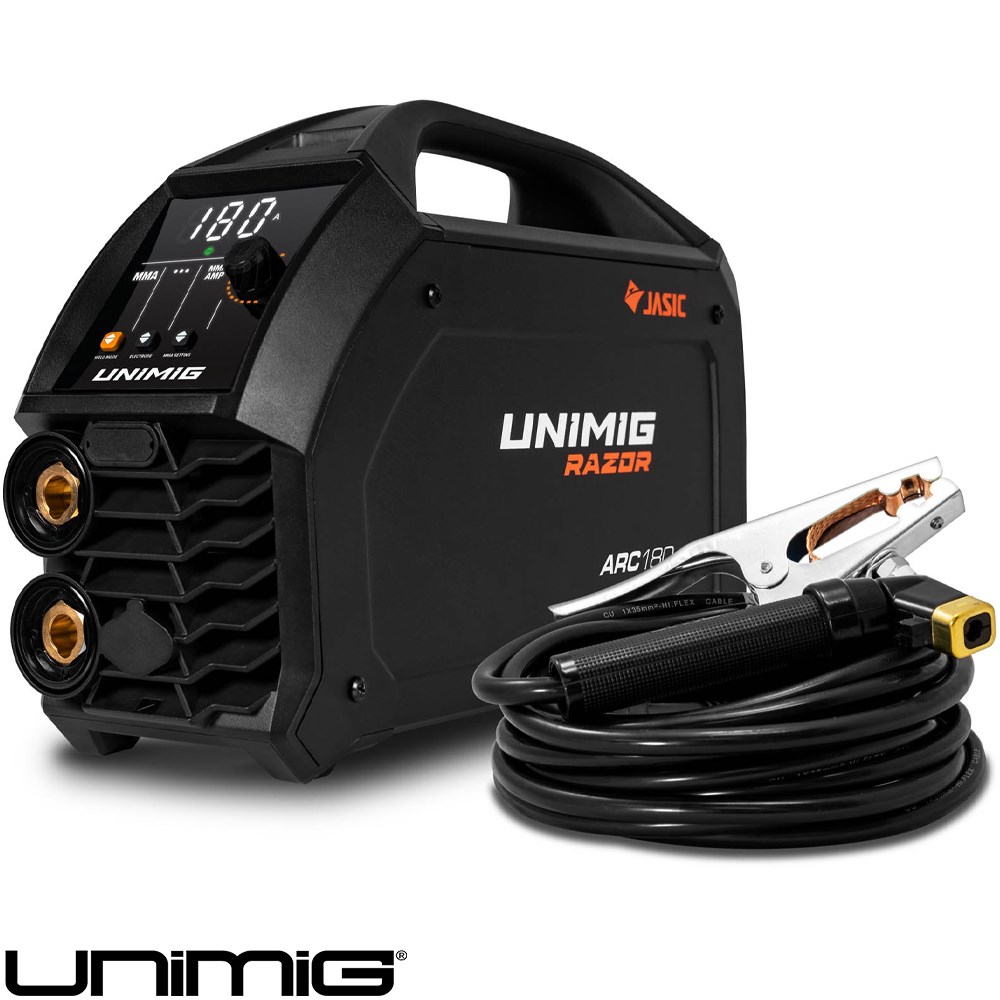

Includes

• UniMIg RAZOR Arc 180 PFC Welder
• 4m Twist Lock Electrode Holder
• 4m 300 Amp Earth Clamp & Lead
• Operating Manual

Specifications

• Primary Input Voltage: 240V Single Phase
• Supply Plug: 15 AMP
• Ieff (A): 14.7
• Rated Output: 20A/20.8V - 180A/27.2V
• No Load Voltage: 78 Volt
• Protection Class: IP23S
• Insulation Class: H
• Minimum Generator: 10.0 kVA
• Dinse Connector: 35/50
• Standard: AS/NZ60974-1
• Suitable Material:
• TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze
• MMA: Mild Steel, Stainless Steel, Cast Iron
• Warranty: 5 Years
