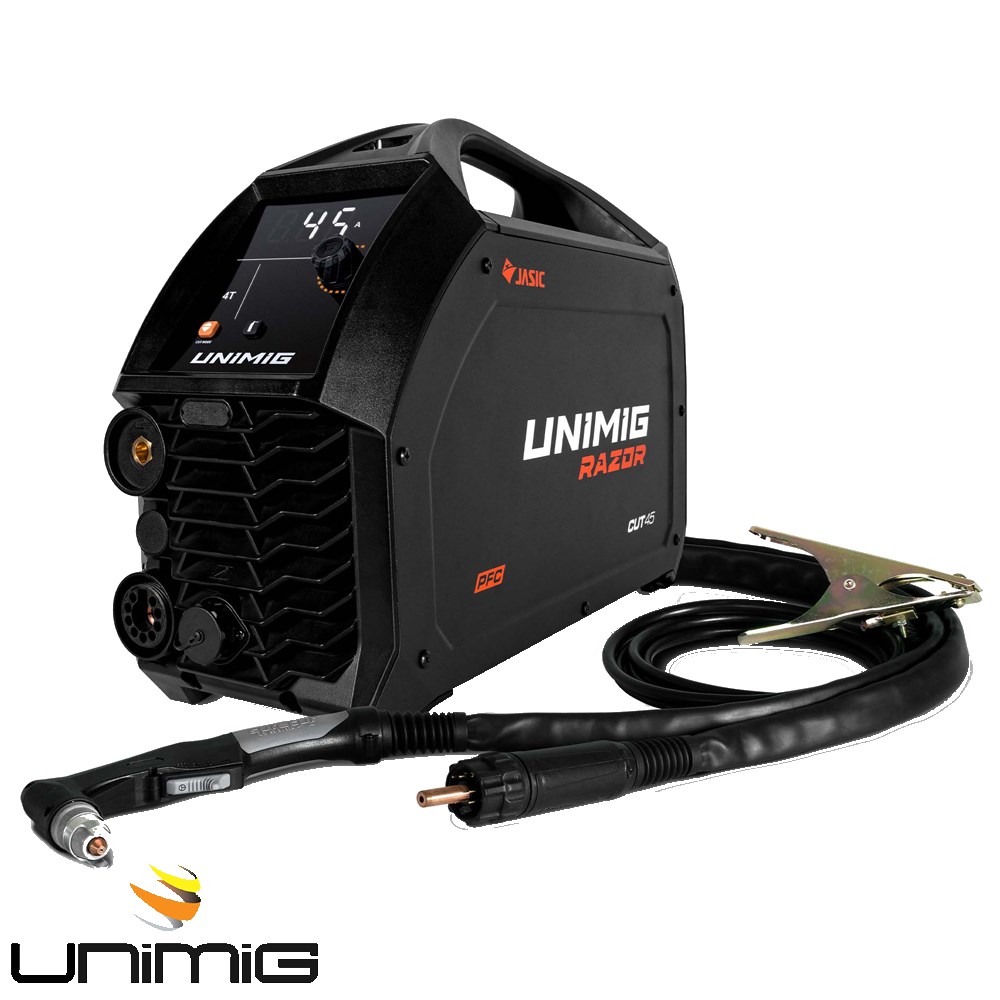

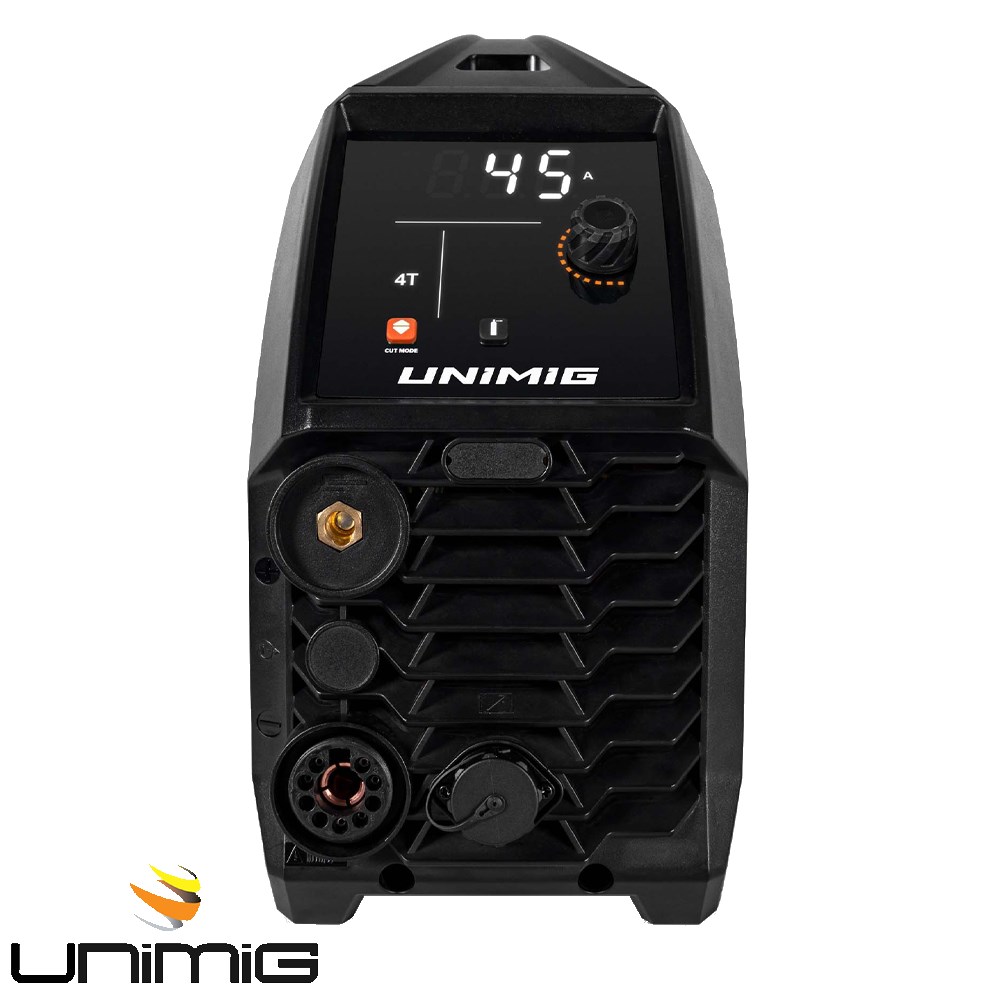

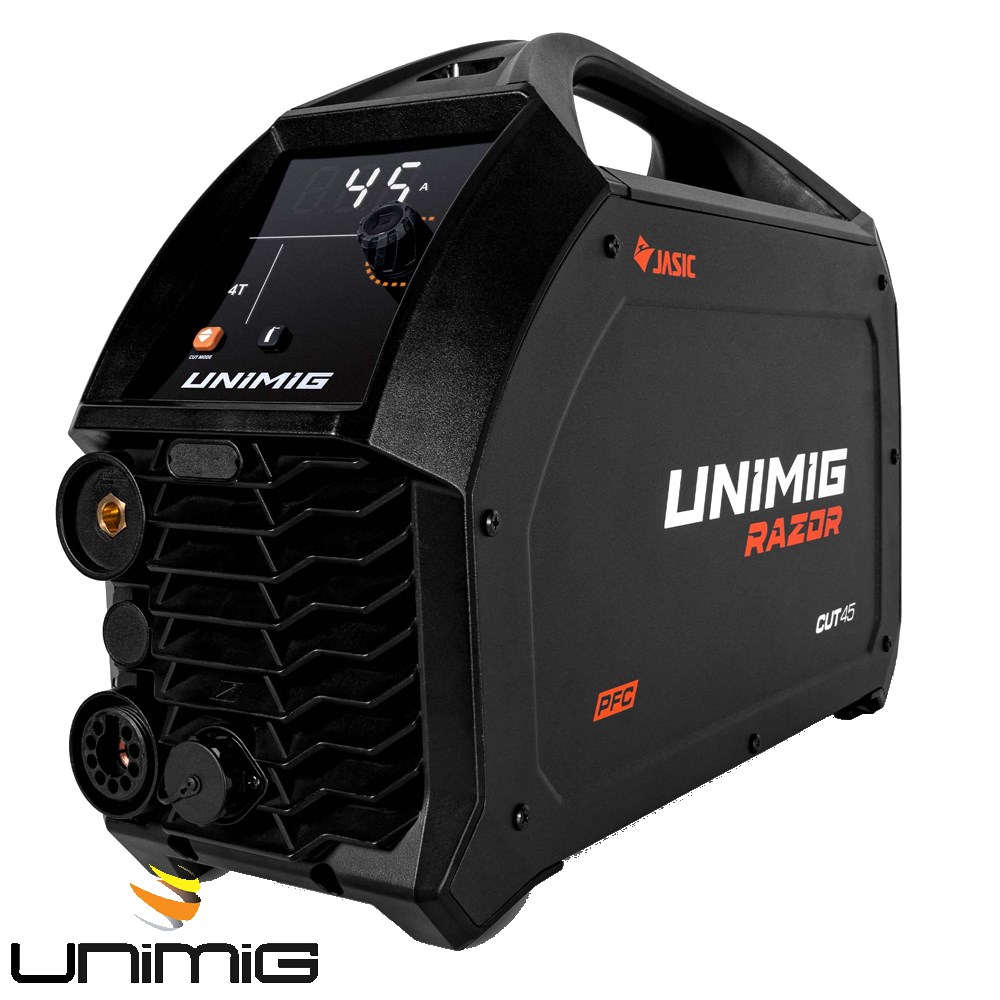

Razor Cut 45 Plasma Cutter
The RAZOR CUT 45 is the perfect plasma cutter for the professional who wants a powerful machine with a portable body. Fitted with a 15 AMP plug, this machine is made for the workshop and worksite. The RAZOR CUT 45 boasts some serious cutting power with 16mm clean cut and 25mm severance.
Machine Specifications
- Primary Input Voltage: 240V Single Phase
- Supply Plug: 15 AMP
- Ieff (A): 15.0
- No Load Voltage (V): 300
- Protection Class: IP23S
- Insulation Class: H
- Minimum Generator (kVA): 8
- Dinse Connector: 10/25
- Standard: AS/NZS 60974.1
- Warranty (Years): 5
- Dimensions: 546×169×341mm
- Weight: 10kg
Plasma Cut Specifications
- Plasma Cut Current Range: 20-45A
- Plasma Cut Duty Cycle @ 40°C: 25% @ 45A, 60% @ 30A, 100% @ 20A
- Mild Steel Cut Thickness: 16mm
- Mild Steel Severance Thickness: 25mm
- Aluminium Cut Thickness: 8mm
- Aluminium Severance Thickness: 12mm
- Stainless Steel Cut Thickness: 8mm
- Stainless Steel Severance Thickness: 12mm
- Air Flow Draw Off (L/min): 189
- Air Flow Pressure (Bar): 5.17 (75 psi)
- Plasma Arc Start: Pilot Arc
Includes
- RAZOR CUT 45 Plasma Cutter
- 6m SC80 Plasma Torch
- 4m 300 AMP Earth Clamp
- Air Regulator
- Operating Manual
