Garrick Herbert 12 Volt Ute Crane

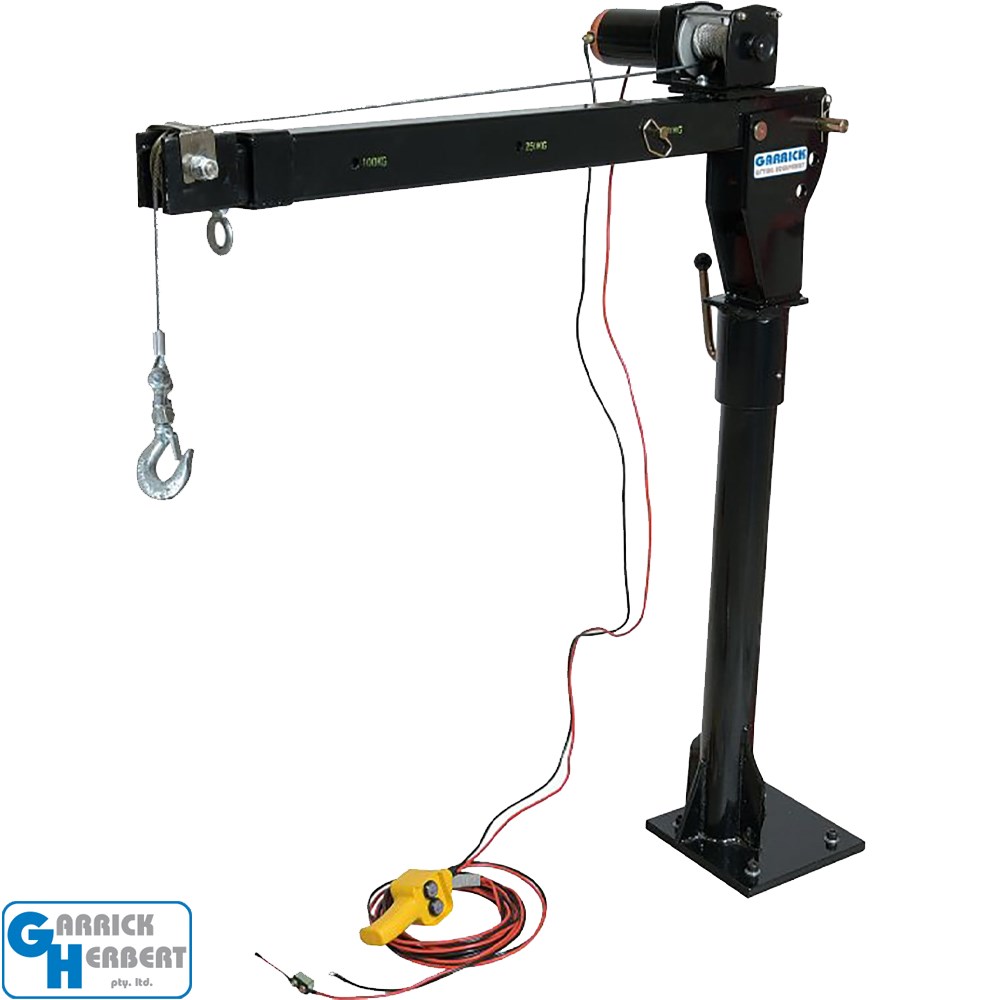

The Garrick Herbert 12V Ute Crane is a lightweight, compact, and portable lifting solution designed for utes, service bodies, vans, trucks, loading docks, and platforms. With a powerful 12V DC winch, it effortlessly lifts up to 500kg with a single line lift or 800kg with a double line setup.

Featuring a telescoping boom with three lifting positions, manual 360° rotation, and three boom elevation angles, this crane offers versatility for various lifting applications. The 3.6m/min lift speed ensures efficient operation, while the 4.2m hand control cable provides convenient remote operation. Built for durability and ease of use, the Garrick Herbert Ute Crane is the perfect tool for heavy-duty lifting in tight spaces.

Features

• Lifting capacity of 500kg with a single-line lift, 800kg with a double-line lift (both at 930mm boom setting).

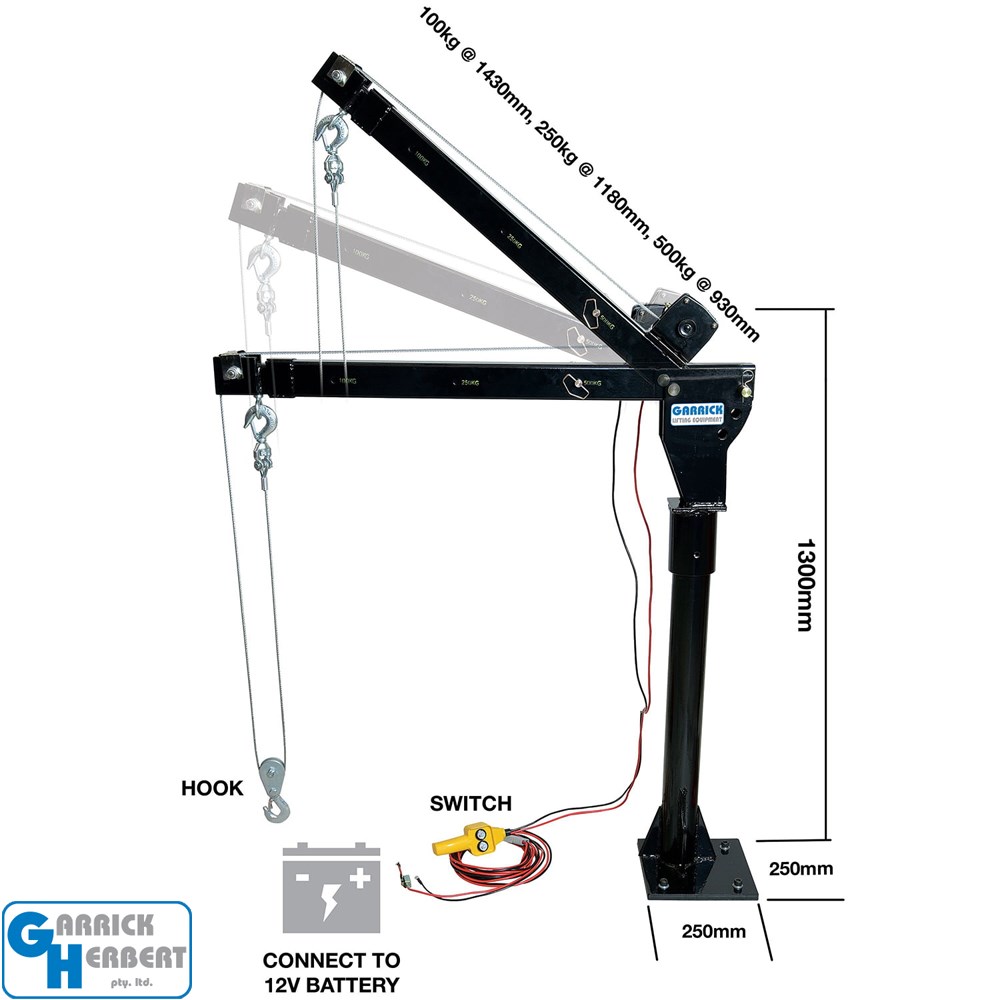

• Telescoping boom with three positions:
  • • 500kg @ 930mm
    • 250kg @ 1180mm
    • 100kg @ 1430mm (single-line lift)
• Three boom elevation angles: 3°, 20°, and 40° (manually adjusted)
• Lifting speed of 3.6m/min (no load, single-line lift)
• 360° continuous manual rotation with a sealed thrust bearing
• Powerful 12V DC winch (125 amps) for reliable lifting
• 250 x 250 x 16mm sturdy mounting base plate with 170 x 170mm bolt hole centres
• Convenient hand control with a 4.2m cable for remote operation
• Secure rotation hand lock for stability during lifting
• Lightweight and compact design for use in confined spaces
• 3.4m active wire cable length with the boom unextended

Specifications

• Storage height (folded, base to hook): 1940mm
• Maximum lifting height (base to hook): 3m
• Total weight: 64kg
