Teco® Vibration Meter
IP65 Industrial Grade Stand-alone meter

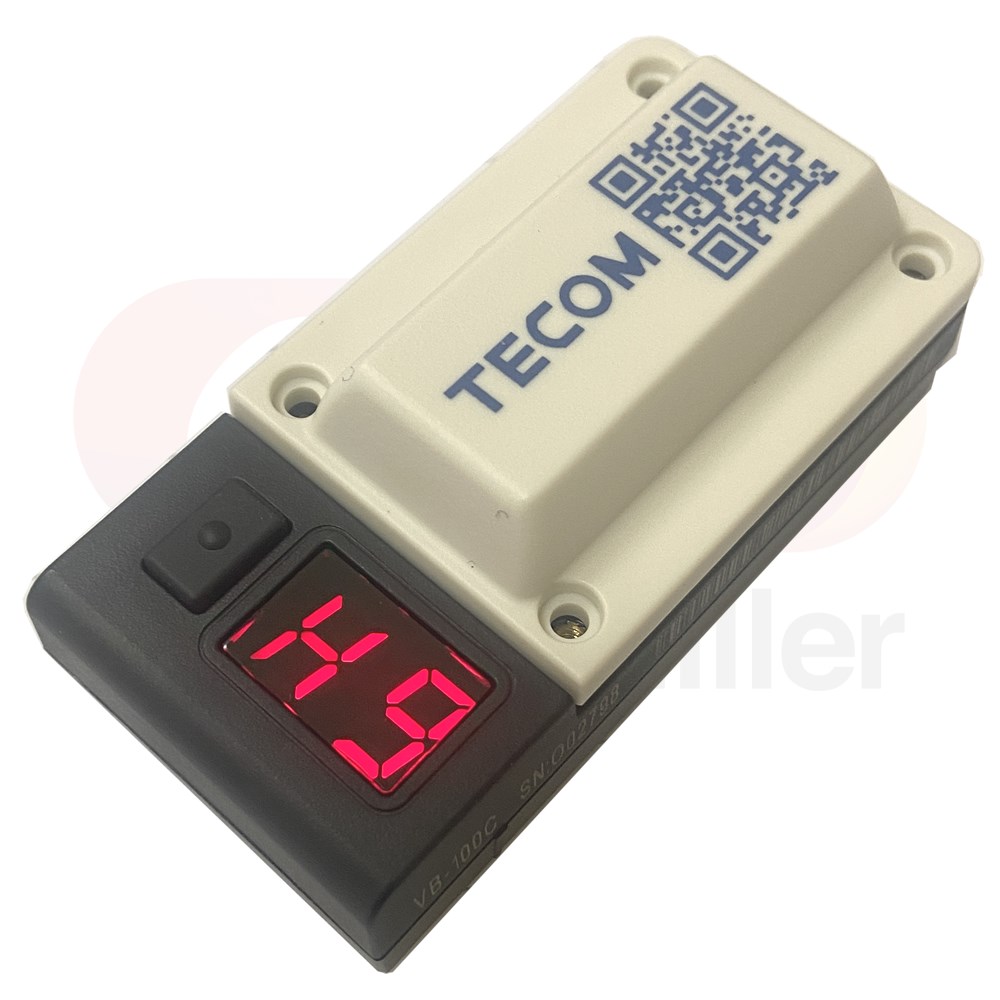

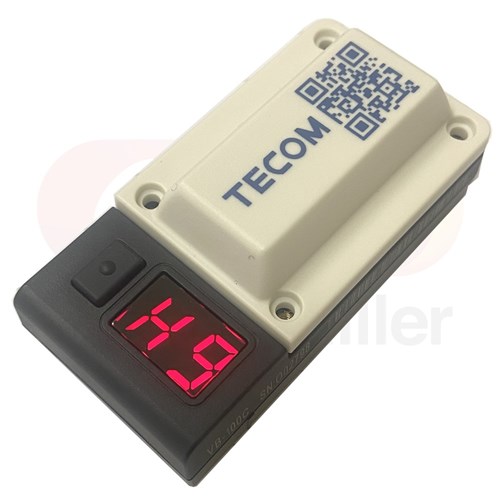

TECO’S VB-100 motor vibration meter is a cutting-edge, battery-powered, stand-alone product, revolutionising the way you monitor motor vibrations. It combines a highly sensitive MEMS vibration sensor with a user-friendly digital display, offering unparalleled convenience simplicity and effectiveness
Specifications
- RMS vibration (velocity) measurement range 0~99 mm/s
- Sensitivity error 5%(max) @100Hz
- Frequency response 10~1000 Hz for ISO10816
- Temperature error range ±0.01%/°C
- Nonlinearity ±0.2%
- Cross-axis sensitivity ±1.0% typical, ±3.5% max
- Working temperature Body: -40 ~85 °C
- Lithium Battery: -40 ~70 °C (CR2) • Shock limit 20,000g
- Noise 70μg/√Hz
Features

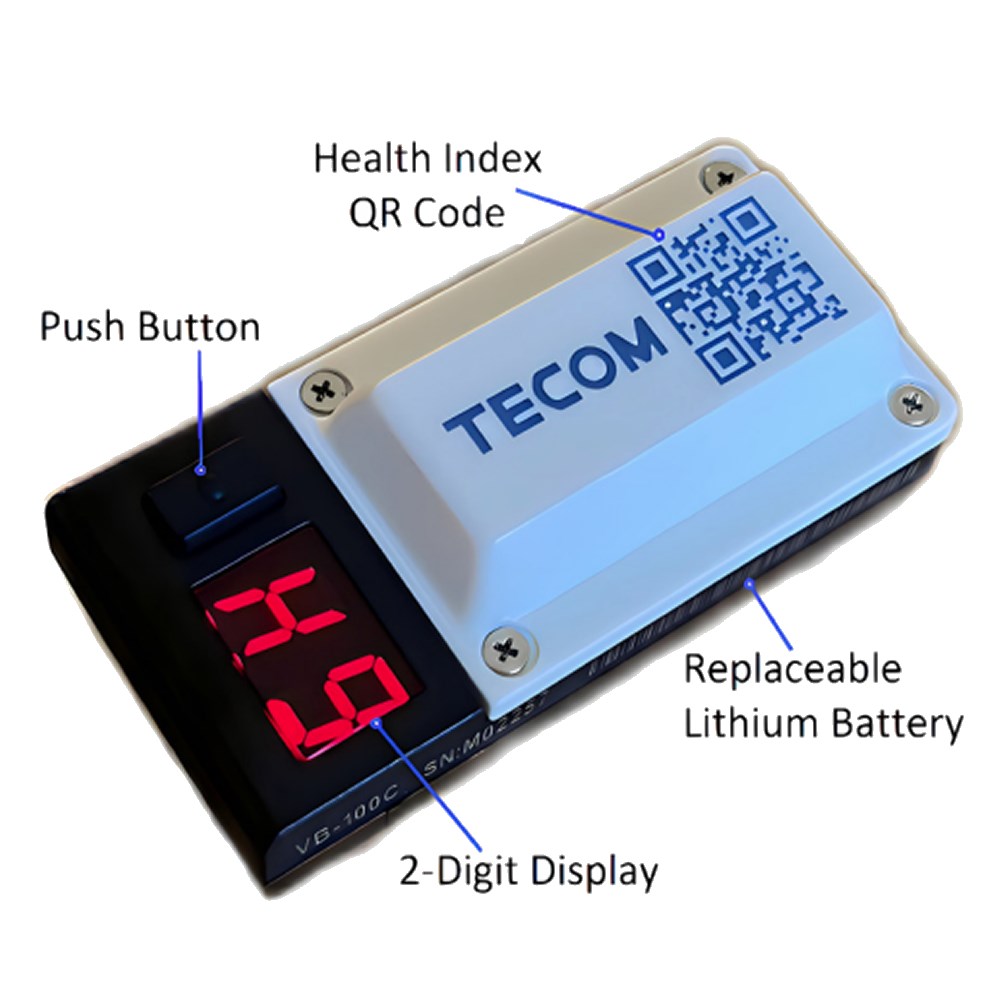

- 7-Segment LED Display
- IP65 rated
- Vibration data measurement and display; velocity RMS (mm/s)
- Vibration measurement, smart display: (1) RMS vibration value; (2) Alarm (LED flashing); (3) Vibration health index (H1 to H9, H9 being the healthiest reading)
- Pressing the button activates the screen for 20 seconds, providing instantaneous vibration velocity RMS followed by the health index

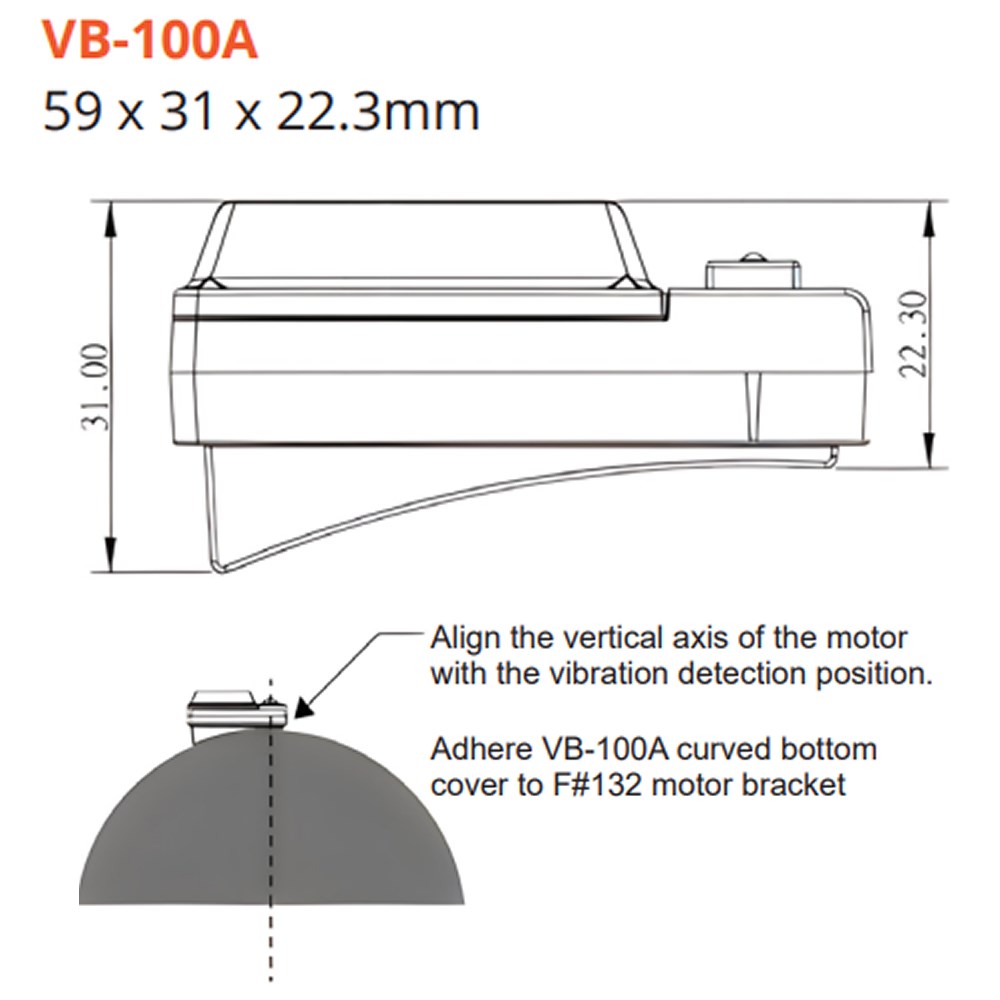

- Compact size is suitable for motors of frame sizes 132 to 250 • Adhesive installation method.
