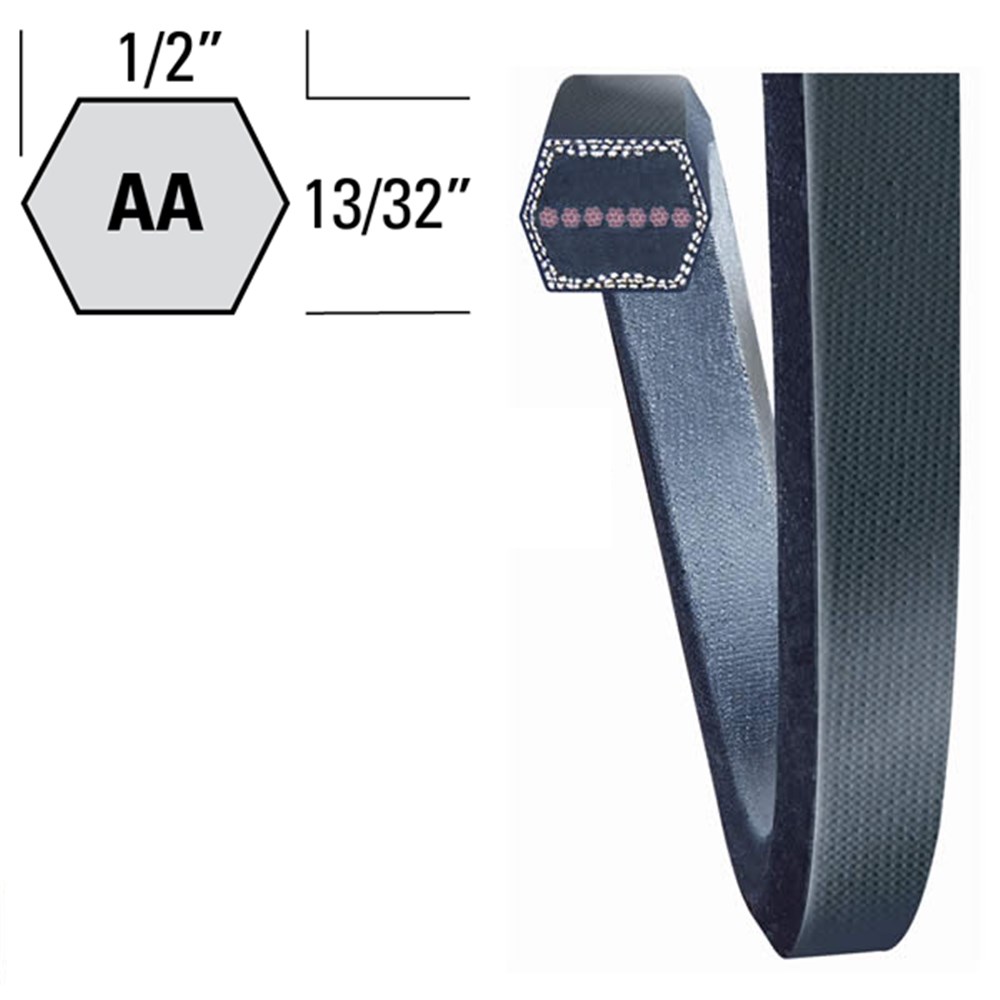

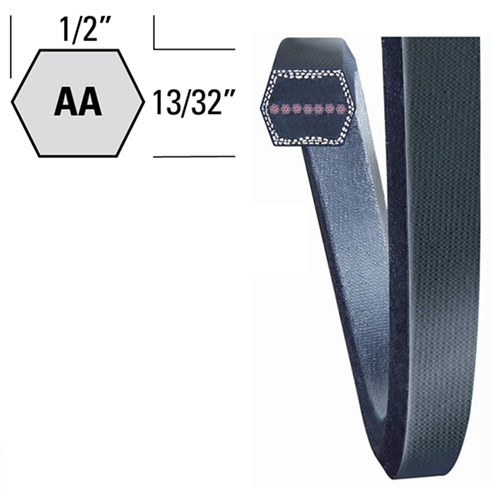

Hexagonal double V-Belts are ideally suited for serpentine drives where power needs to be transmitted equally from both sides of the belt. Heavy duty cover is impregnated with oil and heat resistant rubber. The centrally located cord and special synthetic rubber compounds assure long belt life and capable horsepower capacity.
Dimensions
Dimension |
Imperial (Inches) |
Metric (mm) |
Nominal Top Width |
1/2" |
12.7 |
Nominal cross-section |
17/32" |
13.5 |
Length Internal (Li) |
Li=112" |
2844 |
Features
- Length designation Li = length internal
- Enhanced product life
- Transmits power from both sides of the belt
- Center cord provides excellent power transmission and low-stretch
- Special design provides an excellent flexibility for serpentine drives
- Temperature range: -30°C to +80°C
Construction
- Wear-resistant bias-cut neoprene rubberised polyester cotton fabric
- High tenacity, a low stretch tension member
- High modulus compression rubber.
BrandsWe supply several brands, depending on what is avaiable. When placing your order we will supply either
PIX-Duo-SX®-XR or
TIMKEN Double Angle. If you require a specific brand please specify on the order.
