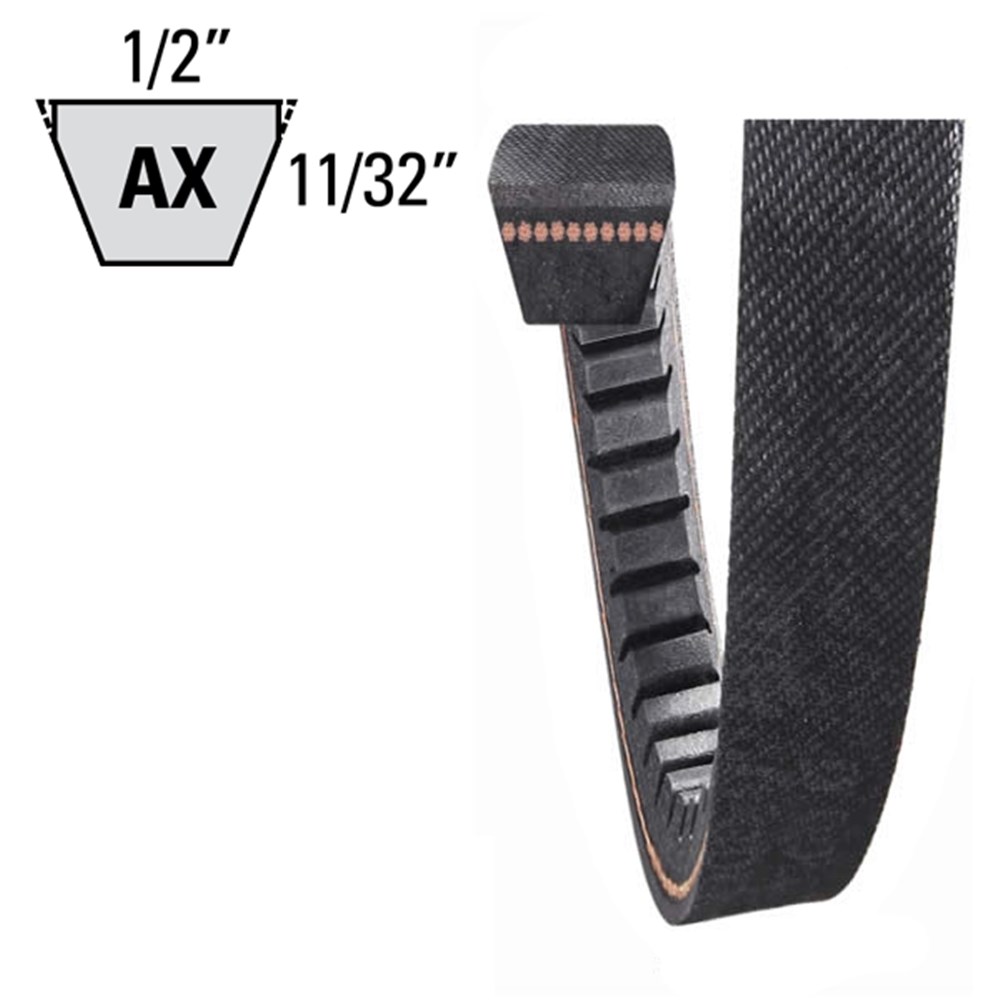

Unique Gold construction Cog-Belt® combines the superior flexing capability of precision molded cogs with the tenacious gripping power of raw-edge sidewalls to provide significantly longer belt life, higher efficiency, and greater horsepower ratings than conventional wrapped belts.
Made with Ethylene Propylene Diene Monomer (EPDM), a synthetic rubber with outstanding properties, the Gold-Ribbon® Cog-Belt® is static conductive durable, and resistant to heat, hardening, and glazing . Ordinary wrapped belts waste energy, time, and money . The Gold-Ribbon Cog-Belt has been engineered to take advantage of countless developments in materials and technology .
Dimension |
Imperial (Inches) |
Metric (mm) |
Nominal Top Width |
1/2" |
12.7 |
Nominal cross-section |
11/32" |
8.73 |
Length Internal (Li) |
Li=88" |
2235 |
Features
- High performance EPDM construction.
- Broader temperature operating range (-45°C – +120°C)
- Static conductive
- Greater design flexibility
Construction
- Oversizes polyester cord
- Precision moulded cogs
- Raw Edge sidewalls
- EPDM Construction
BrandsThis product is unique to TIMKEN.
